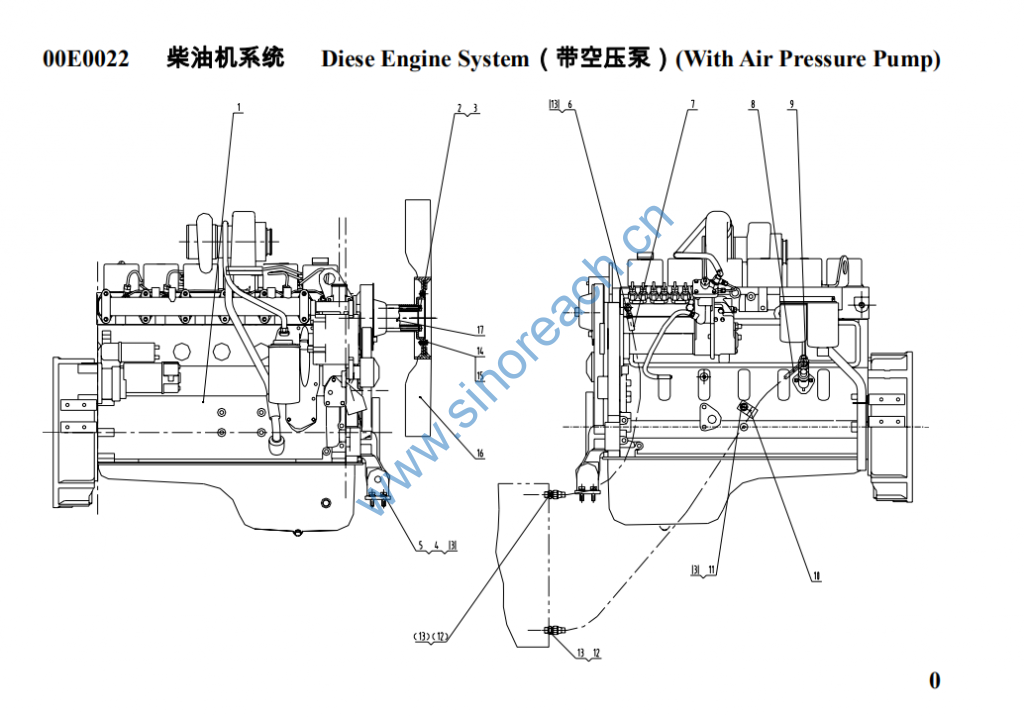

CLG842 0E0022 柴油机系统 Diesel Engine System（带空压泵） (With Air Pressure Pump)
CLG842 0E0022 柴油机系统 Diesel Engine System（带空压泵） (With Air Pressure Pump)
1 50C0063 6BTA5.9 柴油机总成 Diesel Engine
assembly 1
2 01B0205 42599-TT-710 螺栓 Bolt M10×120-8.8-Zn.D 8
3 06B0001 GB5782-86 垫圈 Washer 10-140HV-Zn.D 13
4 00B0002 GB97.1-85 螺栓 Bolt 10-140HV-Zn.D 4
5 06B0002 垫圈 Washer 10 8
6 50C0064 回油软管 Oil return hose 1
8 05C0156 吸油软管 Oil suction hose 1
10 88A0120 管夹 Clamp 1
11 00B0005 GB5783-86 螺栓 Bolt M10×20-8.8-Zn.D 1
12 04B0002 ZL50C.1.7-3 螺钉 Screw 2
13 06B0117 ZL50C.1.7-4 垫圈 Washer 6
14 00B0075 GB5783-86 螺栓 Bolt M8×20-8.8-Zn.D 6
15 06B0006 GB93-87 垫圈 8 Washer 8 10 6
16 40C0050 GB5783-86 风扇 Fan 1
17 88A0223 GB93-87 连接座 Base 1
