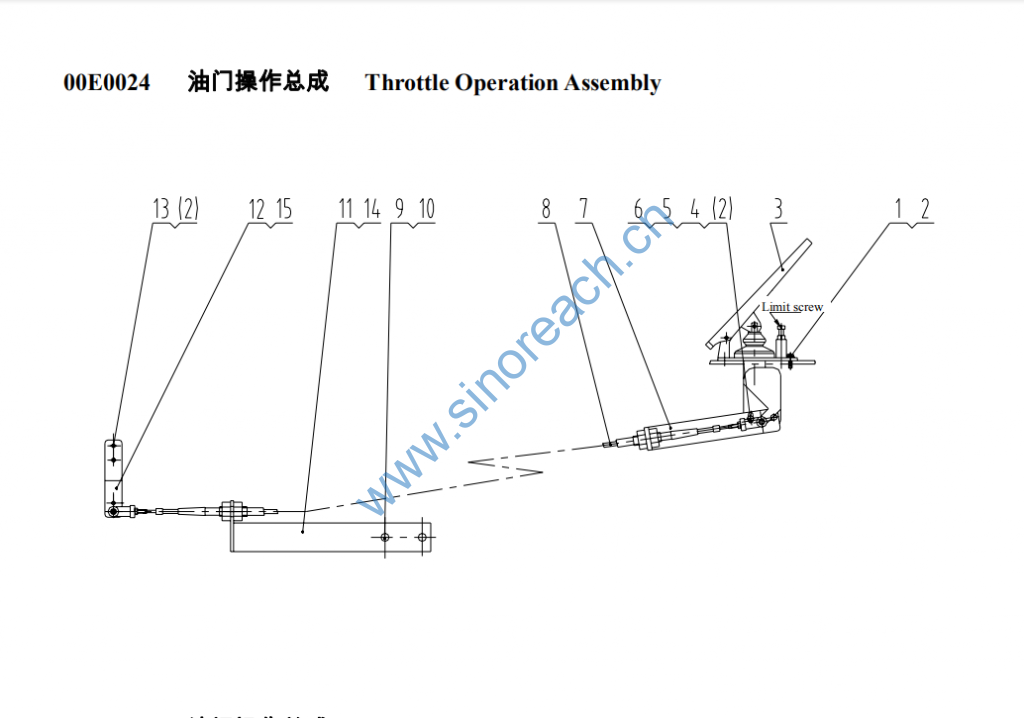

CLG842 00E0024 油门操作总成 Throttle Operation Assembly

1 00B0010 GB5783-86 螺栓 Bolt M6×20-8.8-Zn.D 2
2 06B0003 GB93-87 垫圈 Washer 6 7
3 50C0028 ZY75-00B 油门踏板 Accelerator 1
4 00B0023 GB5783-86 螺栓 Bolt M6×25-8.8-Zn.D 2
5 06B0024 GB97.1-85 垫圈 Washer 6-140HV-Zn.D 4
6 03B0036 GB6170-86 螺母 Nut M6-8-Zn.D 2
7 21A0859 ZL50CⅧ.1-4 支板 Supporting plate 1
8 54C0028 油门软轴 Throttle flexible Shaft 1
9 00B0011 GB5783-86 螺栓 Bolt M12×25-8.8-Zn.D 2
10 06B0008 GB93-87 垫圈 Washer 12 2
11 02D0912 支座 Support 1
12 21A1045 油门手柄 Throttle handle 1
13 00B0021 GB5783-86 螺栓 Bolt M6×12-8.8-Zn.D 2
14 02D1217 支座 Support 1
15 02D1218 油门手柄 Throttle handle 1
