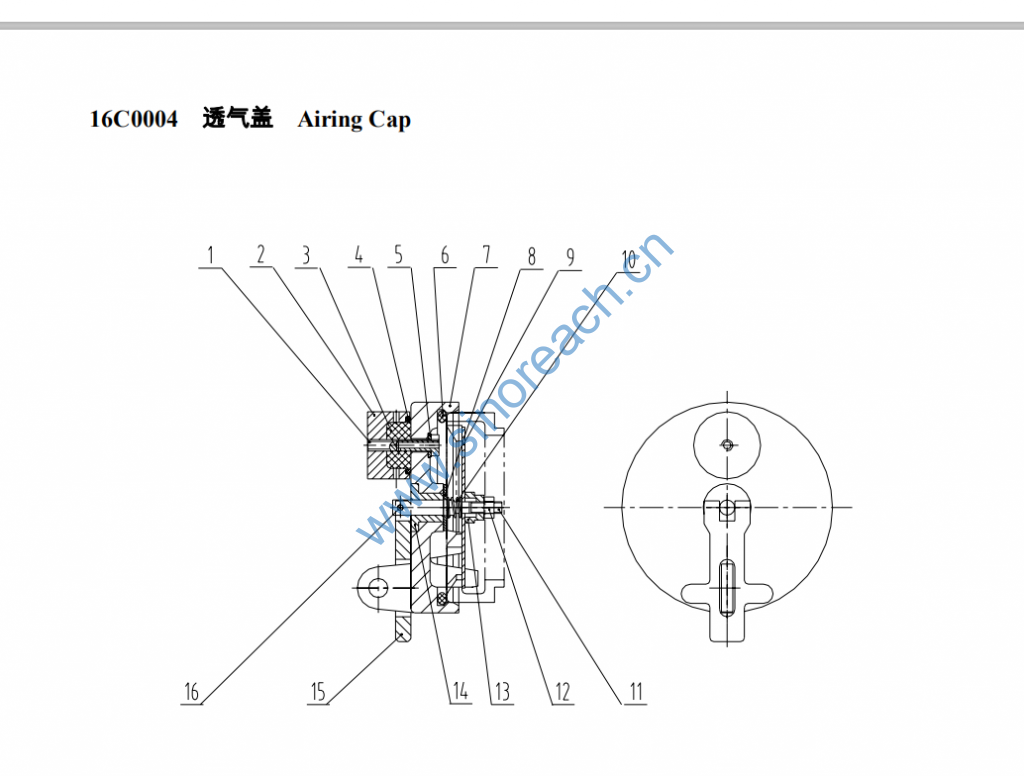

CLG842 16C0004 透气盖 Airing Cap

1 02B0028 螺栓 Bolt M6 1
2 53A0122 盖 Cover 1
3 88A0111 海绵垫 Spongy cushion 1
4 12B0241 GB3452.1-92 O形圈 O-ring 25×2.65 1
5 06B0004 GB97.1-85 垫圈 Washer 6-140HV-Zn.D 1
6 12B0230 GB3452.1-92 O形圈 O-ring 90×5.3 1
7 53A0120 盖 Cover 1
8 06B0086 GB96-85 垫圈 Washer 8-140HV-Zn.D 1
9 10A0240 弹性板 Elastic plate 1
10 75A0094 弹簧 Spring φ0.8x10x14 1
11 01B0197 螺杆 Bolt 1
12 03B0036 GB6170-86 螺母 Nut M6-8-Zn.D 1
13 03B0232 螺母 Nut M6 1
14 55A0290 套 Sheath 1
15 13A0208 手柄 Handle 1
16 08B0061 GB119-86 销 Pin B3x24 1
