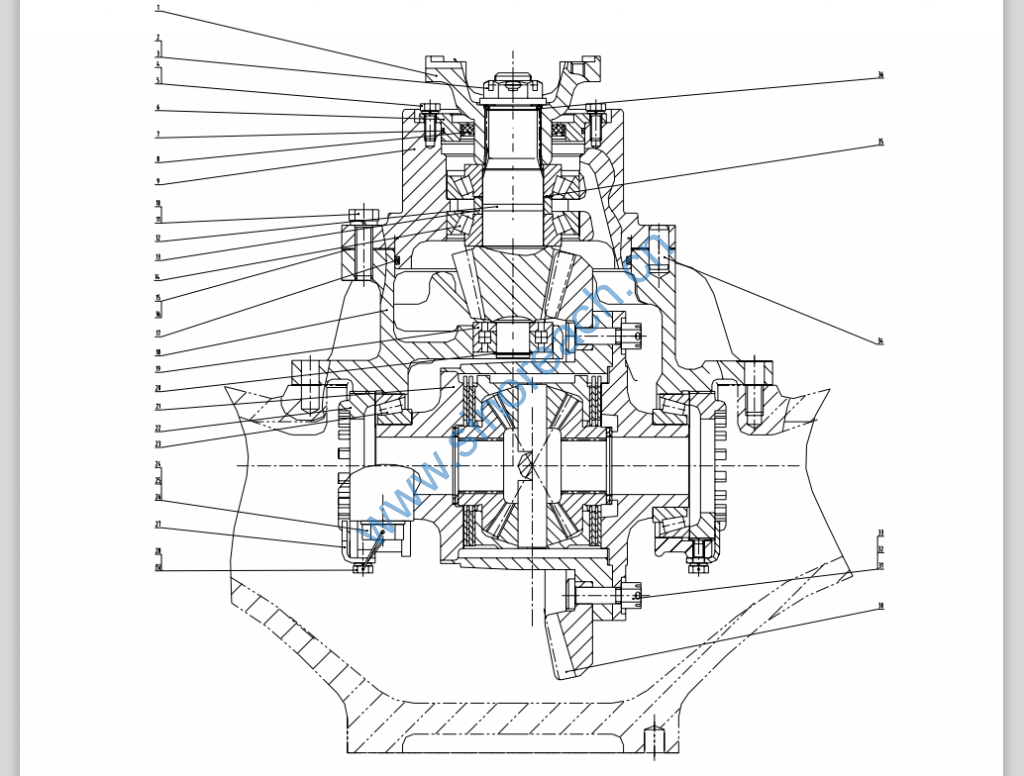

CLG842 41C0027 后桥主传动-DL1600 Rear Axle Main Drive-DL1600

1 04A0040 法兰 Flange 1
2 03B0050 BS305-31 带槽螺母 Castle nut 1
3 08B0032 GB91-86 销 Pin 6.3×60 1
4 00B0012 GB5783-86 螺栓 Bolt M10×25-8.8-Zn.D 4
5 06B0002 GB93-87 垫圈 Washer 10 6
6 53A0110 油封座 Oil sealing seat 1
7 12B0034 GB3452.1-92 O形圈 O-ring 122×3.55 1
8 13B0169 B1SL 348203 油封 Oil seal 70×95×13 1
9 70A0033 轴承座 Bearing seat 1
10 00B0094 GB5783-86 螺栓 Bolt M16×45-8.8-Zn.D 11
11 06B0015 GB93-87 垫圈 Washer 16 11
12 43A0013 后桥主动螺旋锥齿轮 Drive helical bevel gear
of rear axle
1
13 55A0078 ZL50C.2.1-18 轴套 Bearing bush 1
14 23B0018 GB/T297-94 圆锥滚子轴承31311 Tapered roller bearing
31311
55×120×31.5 2
15 57A0079 调整垫片 Adjusting shim 0.50 2
16 57A0078 调整垫片 Adjusting shim 0.20 2
17 12B0246 GB3452.1-92 O形圈 O-ring 200×5.3 1
18 41C0028 托架总成 Bracket sssembly 1
19 22B0005 NUP2306ET NSK圆柱滚子轴承 NSK cylindrica roller
bearing
30×72×27 1
20 07B0027 GB894.1-86 挡圈 Retainer ring 30 1
21 41C0063 DL1600差速器 DL1600 differential 1
22 03B0130 ZL40B.2.1-9 调整螺母 Adjusting nut 2
23 23B0017 GB/T297-94 圆锥滚子轴承32215 Tapered roller bearing
32215
75×130×33.25 1
24 02B0015 GB32.1-88 螺栓 Bolt M22×100-8.8-Zn.D 4
25 06B0270 GB97.1-85 淬硬垫圈 Quench hardening washer 4
26 40B0006 铁丝 Wire φ1.5×450 2
27 76A0011 ZL50C.2.1-7 锁紧片 Lock sheet 1
28 02B0012 GB32.1-88 螺栓 Bolt M10×20-8.8-Zn.D 2
30 43A0012 后桥大螺旋锥齿轮 Major spiral bevel gear of
rear axle
1
31 02B0023 螺栓 Bolt 12
32 03B0156 GB9457-88 螺母 Nut M14×1.5-8-Zn.D 12
33 08B0040 GB91-86 销 Pin 3.2×30 12
34 66A0013 ZL50F.3-8 销 Pin 2
35 57A0027 ZL50C.2.1-19 垫片 Gasket 1
36 12B0105 GB3452.1-92 O形圈 O-ring 42.5×5.3 G 1
