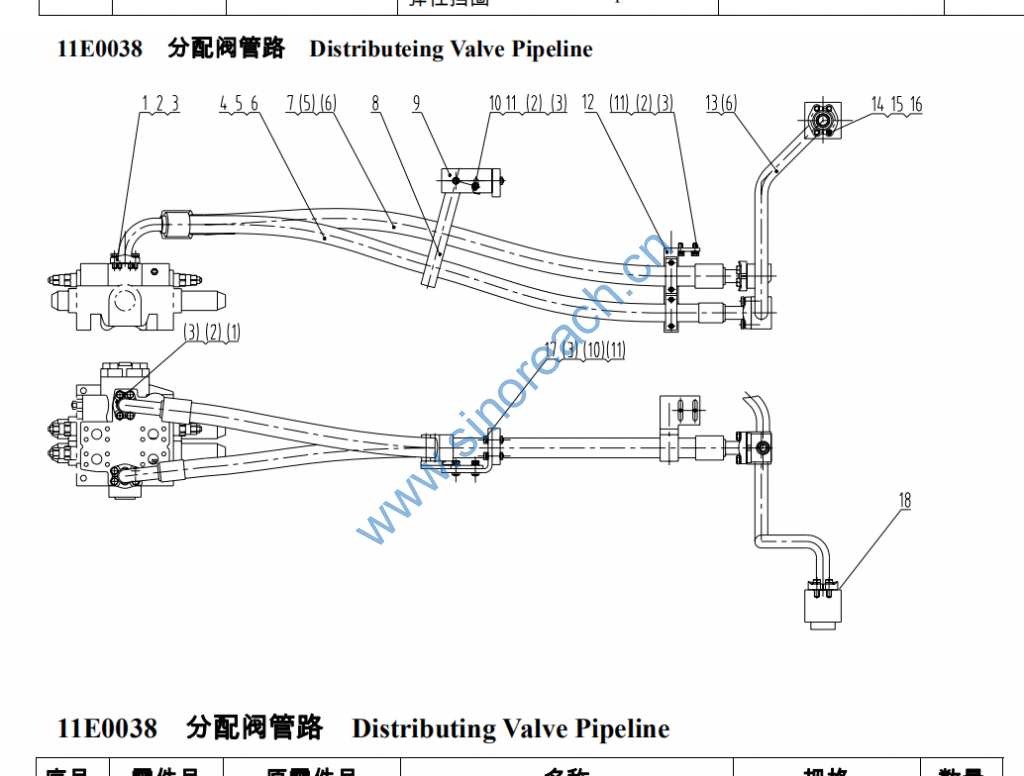

CLG842 11E0038 分配阀管路 Distributing Valve Pipeline

1 72A0027 ZL50C.9.17-6 压板 Pressboard 2
2 00B0019 GB5783-86 螺栓 Bolt M10×30-8.8-Zn.D 14
3 06B0002 GB93-87 垫圈 Washer 10 14
4 07C0093 软管总成 Hose assembly 1
5 12B0015 GB3452.1-92 O形圈 O-ring 30×3.55 2
62
6 12B0009 GB3452.1-92 O形圈 O-ring 36.5×3.55 3
7 07C0094 软管总成 Hose assembly 1
8 17D0050 管夹总成 Clamp assembly 1
9 23A1184 弯板 Bent plate 1
10 03B0400 GB6170-86 螺母 Nut M10-8-Zn.D 4
11 06B0001 GB97.1-85 垫圈 Washer 10-140HV-Zn.D 6
12 17D0049 管夹总成 Pipe clamp
Assembly
1
13 10D0598 钢管总成 Steel pipe
assembly
1
14 00B0035 GB5783-86 螺栓 Bolt M12×35-8.8-Zn.D 12
15 06B0008 GB93-87 垫圈 Washer 12 12
16 72A0010 ZL50C.10.4-6 压板 Pressboard 3
17 00B0029 GB5783-86 螺栓 Bolt M10×40-8.8-Zn.D 2
18 12A0027 ZL50C.10.4-1 节流板 Throttle plate 1
