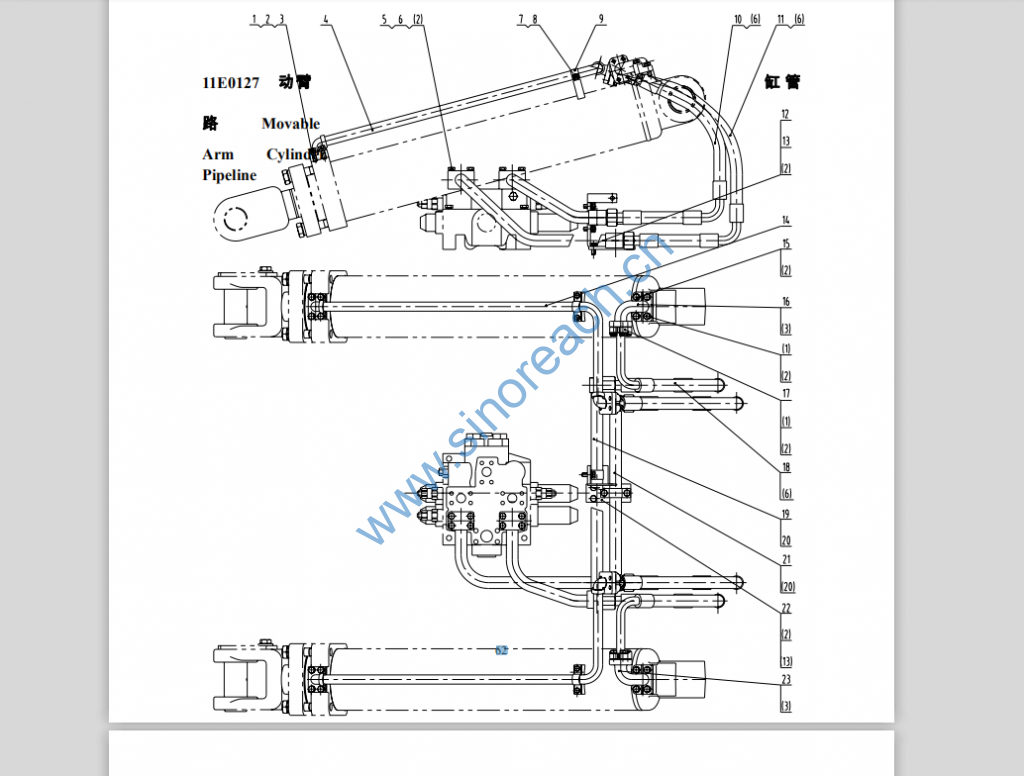

CLG842 11E0127 动臂缸管路 Movable Arm Cylinder pipeline

1 00B0019 GB5783-86 螺栓 Bolt M10×30-8.8-Zn.D 28
2 06B0002 GB93-87 垫圈 Washer 10 46
3 12B0003 GB3452.1-92 O形圈 O-ring 25.8×3.55 4
4 10D0304 钢管总成 Steel pipe
assembly
1
5 01B0100 GB5782-86 螺栓 Bolt M10X65-8.8-Zn.D 8
6 12B0015 GB3452.1-92 O形圈 O-ring 30×3.55 6
7 00B0075 GB5783-86 螺栓 Bolt M8×20-8.8-Zn.D 4
8 06B0006 GB93-87 垫圈 Washer 8 4
9 20A0631 管夹 Pipe clamp 2
10 06C0446 软管总成 Hose
assembly
1
11 06C0447 软管总成 Hose
assembly
2
12 00D0556 支架 Bracket 1
13 00B0005 GB5783-86 螺栓 Bolt M10×20-8.8-Zn.D 6
14 10D0305 钢管总成 Steel pipe
assembly
1
15 00B0048 GB5783-86 螺栓 Bolt M10×45-8.8-Zn.D 4
64
16 03A0058 弯头 Bent plate 1
17 72A0027 ZL50C.9.17-6 压板 Pressboard 4副 set
18 06C0448 软管总成 Hose
assembly
1
19 10D0724 钢管总成 Steel pipe
assembly
1
20 12B0292 GB3452.1-92 O形圈 O-ring 21.2×1.8 4
21 10D0725 钢管总成 Steel pipe
assembly
1
22 20A0632 管夹 Pipe clamp 2
23 03A0059 弯头 Elbow 1
