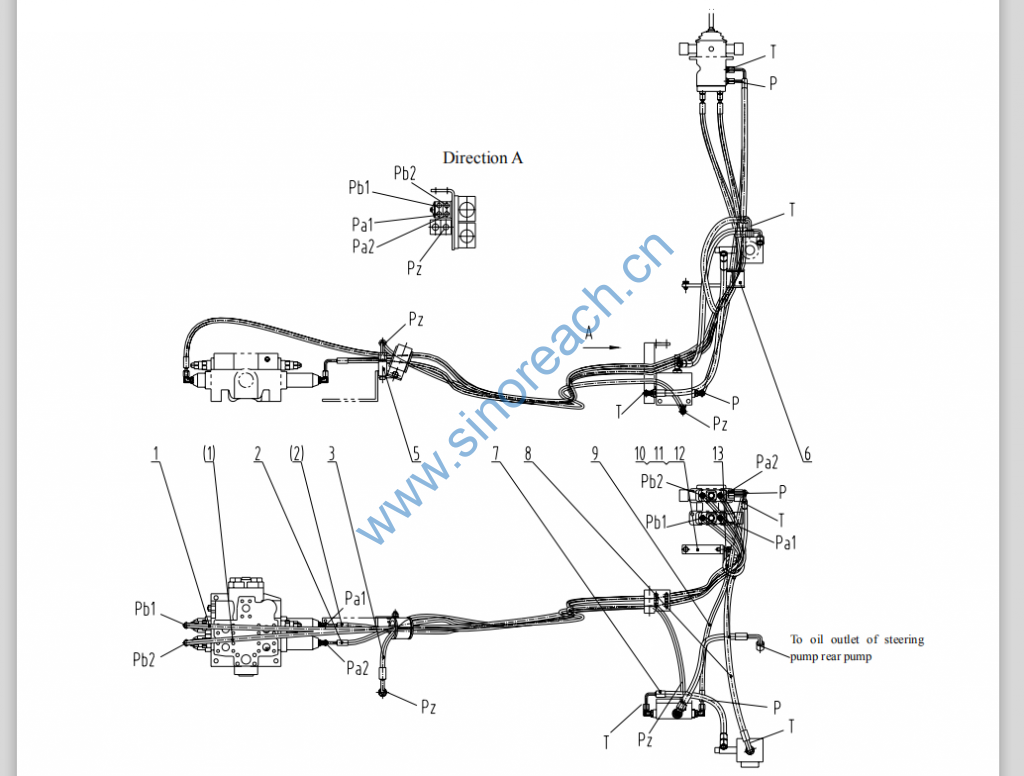

CLG842 11E0044 先导控制管路 Pilot Control Pipeline

1 05C0071 软管总成 Hose assembly 2
2 05C0068 软管总成 Hose assembly 2
3 05C0069 软管总成 Hose assembly 1
5 12C0057 ZL50E.10.6 单向阀 Check Valve 1
6 09C0016 ZL50CⅠ .10.12 管夹 Pipe clamp 1
7 06C0151 软管总成 Hose assembly 1
8 06C0166 软管总成 Hose assembly 1
9 05C0072 软管总成 Hose assembly 1
10 23A0618 支座 Bearing 1
11 00B0005 GB5783-86 螺栓 Bolt M10×20-8.8-Zn.D 1
Direction A
To oil outlet of steering
pump rear pump
73
12 06B0002 GB93-87 垫圈 Washer 10 1
13 06C0153 软管总成 Hose assembly 1
