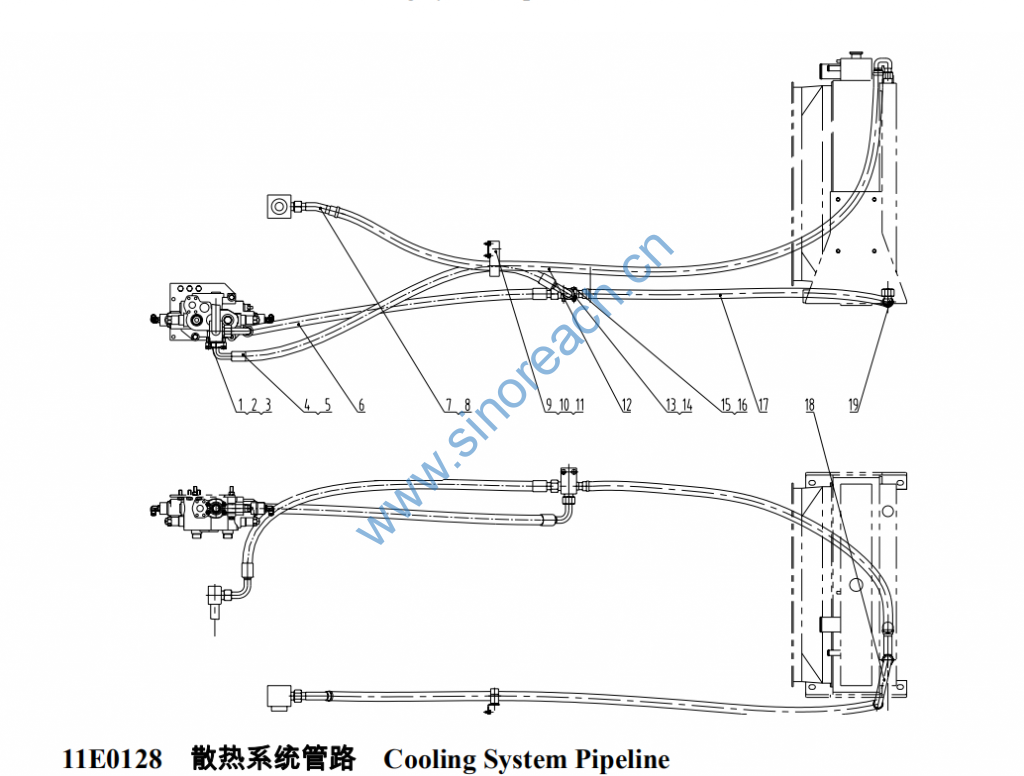

CLG842 11E0128 散热系统管路 Cooling System Pipeline

1 72A0027 ZL50C.9.17-6 压板 Pressboard 1
2 00B0019 GB5783-86 螺栓 Bolt M10×30-8.8-Zn.D 4
3 06B0002 GB93-87 垫圈 Washer 10 4
4 12B0251 GB3452.1-92 O形圈 O-ring 30X3.55 1
5 07C0301 软管总成 Hose assembly 1
6 07C0302 软管总成 Hose assembly 1
7 15B0001 ZB/T32005.1-88 双钢丝式环箍 Dual wire type hoop 38 4
8 10D0604 钢管总成 Steel tube assembly 1
9 17D0051 管夹总成 Pipe clamp assembly 1
10 00B0075 GB5783-86 螺栓 Bolt M8×20-8.8-Zn.D 4
11 06B0006 GB93-87 垫圈 Washer 8 4
12 30A0168 低压软管 Low pressure hose 1
13 15D0203 接头总成 Joint assembly 1
14 12B0292 GB3452.1-92 O形圈 O-ring 21.2×1.8 3
15 00B0058 GB5783-86 螺栓 Bolt M12×45-8.8-Zn.D 2
16 06B0008 GB93-87 垫圈 Washer 12 2
77
17 30A0184 低压软管 Low pressure hose 1
18 10D0590 钢管总成 Steel tube assembly 1
19 10D0591 钢管总成 Steel tube assembly 1
