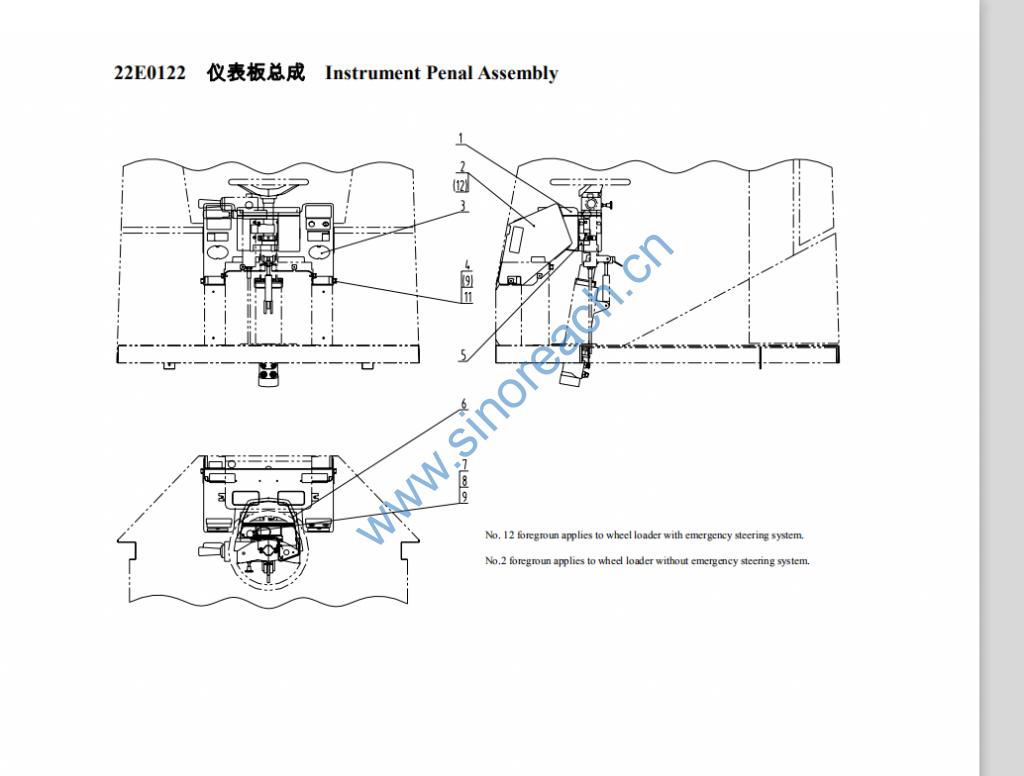

CLG842 22E0122 仪表板总成 Instrument Penal Assembly

CLG842 22E0122 仪表板总成 Instrument Penal Assembly

1 86A0078 仪表盘安装座 Mounting seat of
instrument penal
1
2 86A0076 前台 Foreground 1
3 86A0079 盖 Cover 2
4 00B0022 GB5783-86 螺栓 Bolt M6×16-8.8-Zn.D 6
5 46C0264 支座总成 Bearing assembly 1
6 86A0077 仪表盘底座 Instrument penal
seat
1
7 09C0051 ZL40B.14C.10 线夹 Clip 20 1
8 00B0021 GB5783-86 螺栓 Bolt M6×12-8.8-Zn.D 1
9 06B0003 GB93-87 垫圈 Washer 6 7
10 06B0139 GB5287-85 垫圈 Washer 6-100HV-Zn.D 6
12 86A0253 前台 Foreground 1
