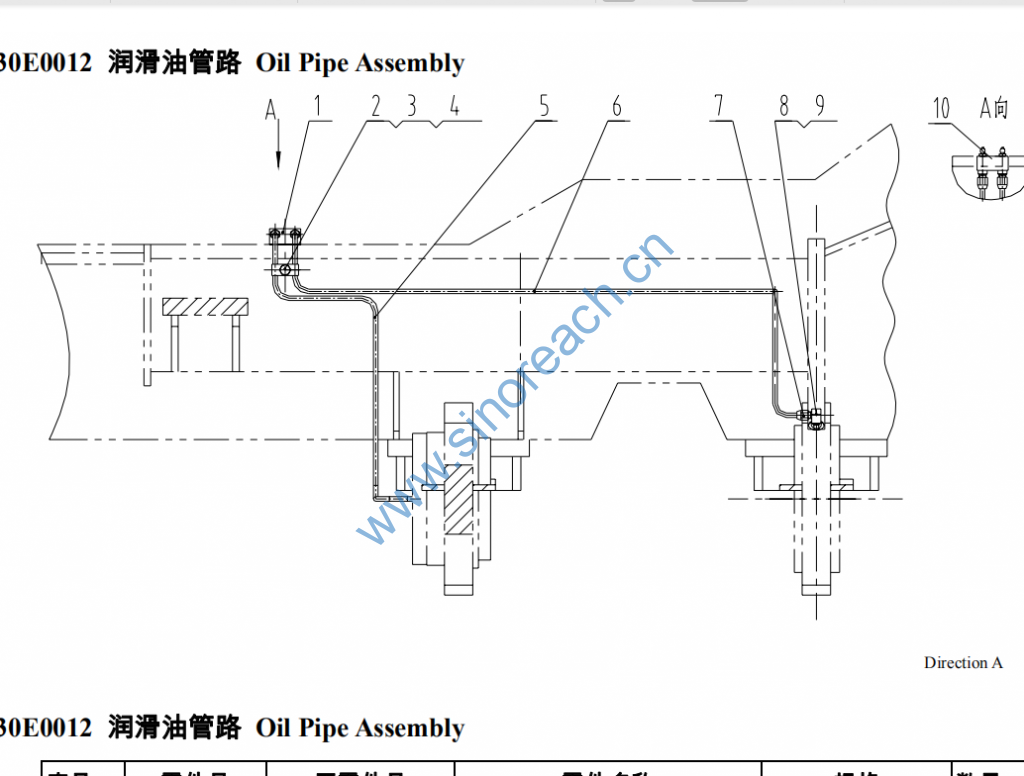

CLG842 30E0012 润滑油管路 Oil Pipe Assembly

1 17A0221 ZL50F.8.7-4 后支座 Mounting 1
2 10A0111 ZL50G.3.2-1 管夹 Clamp 1
3 00B0007 GB5783-86 螺栓 Bolt M8×16-8.8-Zn.D 1
4 06B0006 GB93-87 垫圈 Washer 8 1
5 01C0036 后油管 Oil Pipe 1
6 01C0035 前油管 Oil Pipe 1
7 00A0224 ZL50F.8.2-1 接头 Joint 3
8 01A0137 ZL50F.8.2-4 接头 Joint 1
Direction A
122
9 03B0035 GB6171-86 螺母 Nut M10×1-8-Zn.D 1
10 10B0014 GB1152-89 油杯 Oil Cup M10×1 2
