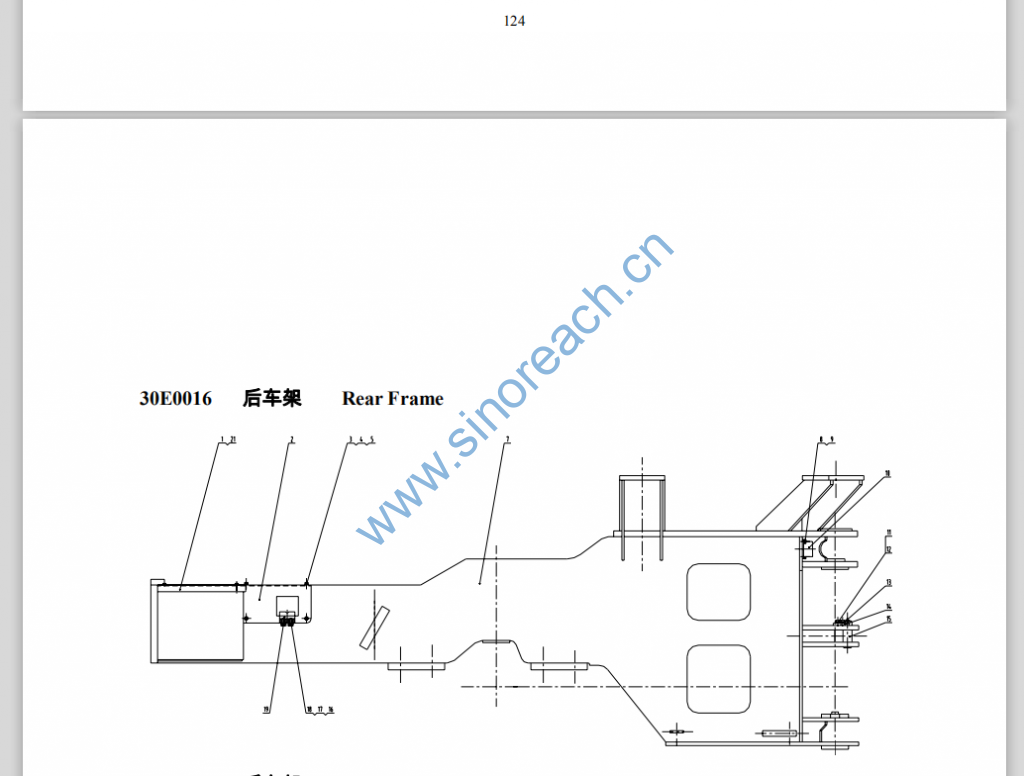

CLG842 30E0016 后车架 Rear Frame

1 27C0060 右电瓶箱总成 Right battery box
assembly
1
2 21A0746 盖板 Cover plate 1
3 00B0075 GB5783-86 螺栓 Bolt M8X20-8.8-Zn.D 4
4 06B0005 GB97.1-85 垫圈 Washer 8-140HV-Zn.D 4
5 06B0006 GB93-87 垫圈 Washer 8 4
7 30D0051 后车架 Rear frame 1
8 00B0002 GB5783-86 螺栓 Bolt M10X25-8.8-Zn.D 4
9 06B0002 GB93-87 垫圈 Washer 10 4
10 34C0055 缓冲块 Buffer block 2
11 00B0011 GB5783-86 螺栓 Bolt M12X25-8.8-Zn.D 4
12 06B0008 GB93-87 垫圈 Washer 12 4
13 10B0014 GB1152-89 油杯M10X1 Oil cup M10X1 2
14 14A0126 ZL40B.8-2 卡板 Backing plate 2
15 60A0113 ZL30F.8-1 转向缸销 Steering cylinder
pin
2
16 00B0017 GB5783-86 螺栓 Bolt M12X30-8.8-Zn.D 4
18 06B0007 GB97.1-85 垫圈 Washer 12-140HV-Zn.D 4
19 23A1175 提升支架 Lifting bracket 1

21 27C0059 左电瓶箱总成 Left battery box
assembly
1
