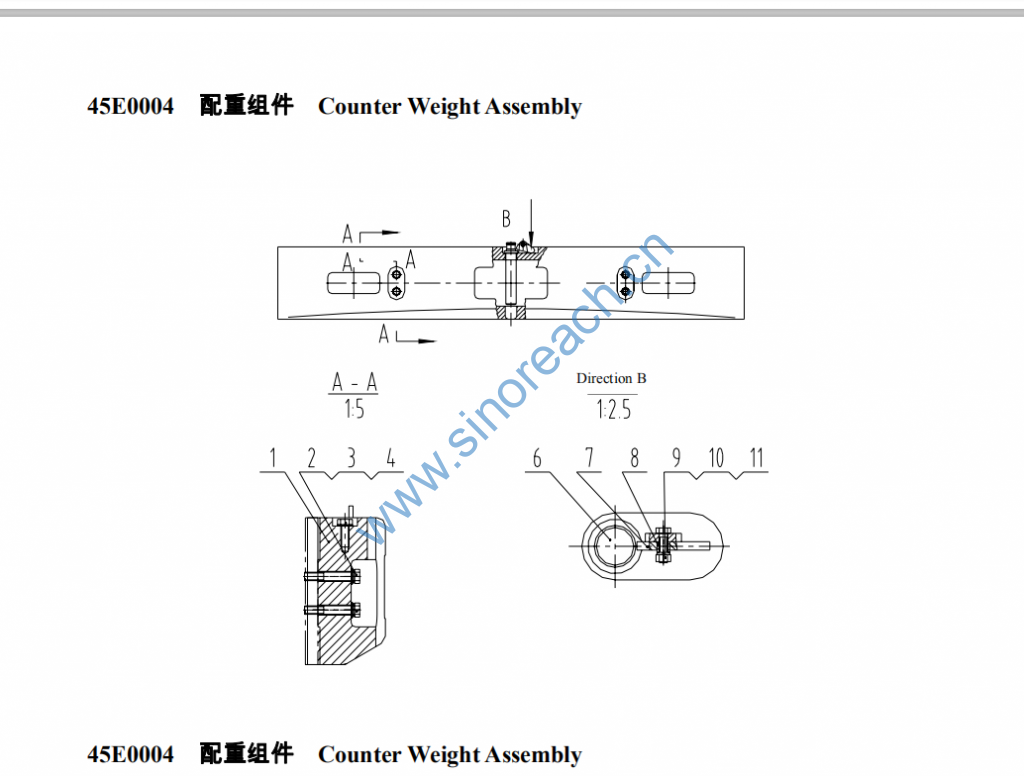

CLG842 45E0004 配重组件 Counter Weight Assembly

1 27C0061 配重总成 Counter Weight
Assembly
1
2 01B0127 GB5782-86 螺栓M20×120-8.8-Zn.D4 Bolt
M20×120-8.8-Zn.D4
4
3 06B0019 GB93-87 垫圈20 Washer 20 4
4 06B0016 GB97.1-85 垫圈20-140HV-Zn.D Washer 20-140HV-Zn.D 4
6 11D0039 ZL40B.8.10 牵引销 Towing pin 1
7 14A0027 ZL50C.8-9A 限位板 Limiting plate 1
8 55A0028 ZL50C.8-23 管垫 Pipe cushion 1
9 00B0002 GB5783-86 螺栓M10×35-8.8-Zn.D Bolt M10×35-8.8-Zn.D 1
10 06B0002 GB93-87 垫圈10 Washer 10 1
11 03B0053 GB6170-86 螺母M10-8-Zn.D Nut M10-8-Zn.D 1
