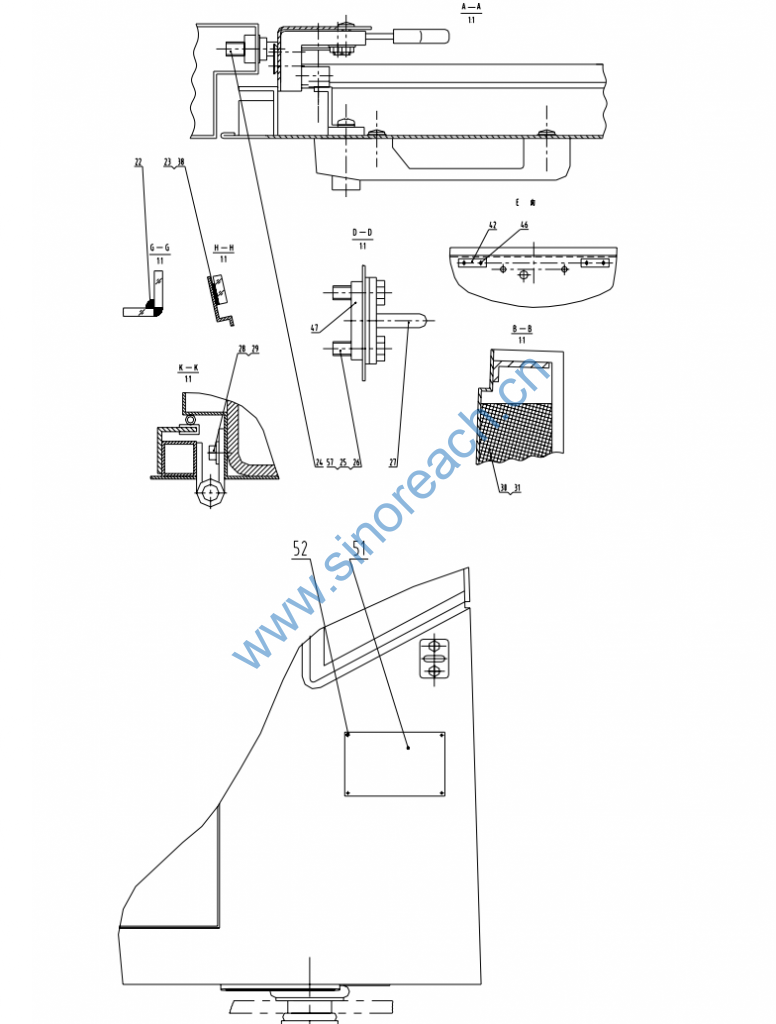

CLG842 41E0096 驾驶室总成 Cab Assembly

1 23D0552 驾驶室 Cab 1
2 87A0024 前玻璃 Front glass 1
3 87A0025 左前玻璃 Left front glass 1
4 87A0026 右前玻璃 Right front glass 1
5 47C0108 控制箱总成 Control box assembly 1
6 47C0063 左门 Left door 1
7 47C0064 右门 Right door 1
8 87A0214 左后玻璃 Left rear glass 1
9 87A0215 右后玻璃 Right rear glass 1
10 87A0233 后玻璃 Rear glass 1
11 47C0277 CB-2205-72 减震器 Shock absorber 4
12 56A0209 垫圈 Washer 4
13 01B0451 GB5782-86 螺栓 Bolt M30×130-8.8-Zn.D 4
14 88A0378 右顶隔热板一 Right top thermal
baffle 1
1
15 88A0375 顶隔热板 Top thermal baffle 3
16 88A0376 左顶隔热板一 Left top thermal
baffle 1
1
17 88A0377 左顶隔热板二 Left top thermal
baffle 2
1
18 88A0379 右顶隔热板二 Right top thermal
baffle 2
1
19 88A0114 后隔热板 Rear thermal baffle 1
20 88A0116 左后隔热板 Left rear thermal
baffle
1
21 88A0115 右后隔热板 Right rear thermal
baffle
1
22 85A0044 玻璃胶 Glass cement 310ml/支 1
23 42B0005 Sikaflex-255 西卡玻璃胶 Sika glass cement 1
24 88A0128 NBS502 门锁扣 NBS502 door lock
catch
2
25 00B0007 GB5783-86 螺栓 Bolt M8×16-8.8-Zn.D 4
26 06B0005 GB97.1-85 垫圈 Washer 8-140HV-Zn.D 4
27 88A0164 NBS510 定位锁扣 NBS510 positioning
lock catch
2
28 00B0012 GB5783-86 螺栓 Bolt M10×25-8.8-Zn.D 12
29 06B0001 GB97.1-85 垫圈 Washer 10-140HV-Zn.D 16
30 88A0414 左侧隔热板 Left thermal baffle 1
31 88A0415 右侧隔热板 Right thermal baffle 1
32 82A0344 地板胶 Floor glue 1
33 36D0079 后盖 Rear cover 1
34 06B0003 GB93-87 垫圈 Washer 6 8
35 00B0010 83-86 螺栓 Bolt M6×20-8.8-Zn.D 8
141
36 42B0004 Primer-206G+P 西卡底涂剂 Sika basecoat 1
37 47C0194 手垫架 Hand pad holder 1
38 82A0168 橡胶限位块 Rubber stopper 1
39 47C0117 CH6350 后视镜 CH6350 rear-view
mirror
1
40 04B0099 GB818-85 螺钉 Screw M4×16-4.8-Zn.D 2

41 56A0305 洛德垫圈 Lord washer 4
42 17B0139 橡胶垫 Rubber pad 2
43 00B0019 GB5783-86 螺栓 Bolt M10×30-8.8-Zn.D 4
44 06B0002 GB93-87 垫圈 Washer 10 4
45 41D0085 扶手 Handrail 2
46 04B0075 GB819-85 螺钉 Screw M6×16-4.8-Zn.D 4
47 13A0476 螺母块 Nut block 2
48 48C0161 内饰件总成 Interior
assembly
1
49 85A0118 膨胀钉 Expansion nail 30
50 85A0119 膨胀钉 Expansion nail 30
51
74A1638
CLG842 防滚翻、落物铭牌
CLG842 nameplate of antirolling and
falling-object
1
52 09B0036 抽芯铆钉 Self-plugging
rivet
3.2×12-10 1
53 88A0505 前压条 Front trim strip 1
54 88A0506 后压条 Rear trim strip 1
55 81A0115 橡胶压条 Rubber trim
strip
1
56 81A0116 GB846-85 橡胶压条 Rubber trim
strip
14
57 04B0259 螺钉 Screw ST3.5×16-C-H-Zn.D 4
