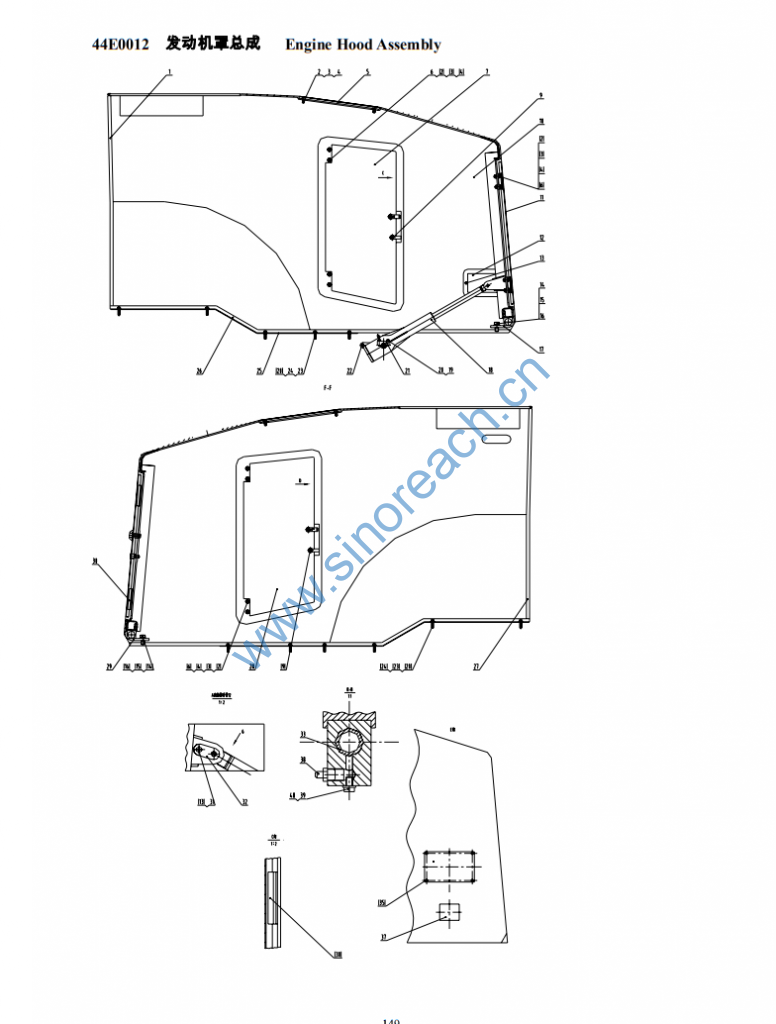

CLG842 44E0012 发动机罩总成 Engine Hood Assembly

1 17B0027 BFH003 密封条 Weather strip L=1300 2
2 03B0053 GB6170-86 螺母 Nut M10-8-Zn.D 18
3 06B0002 GB93-87 垫圈 Washer 10 18
4 06B0001 GB97.1-85 垫圈 Washer 10-140HV-Zn.D 18
5 37C0038 透风盖 Vent cap 1
6 00B0012 GB5783-86 螺栓 Bolt M10×25-8.8-Zn.D 12
7 37C0036 右门 Right door 1
9 48C0045 NBXS5013A 工具箱锁 Tool box lock NBXS5013A 3
10 37C0005 发动机罩 Engine hood 1
11 37C0040 后门 Rear Door 1
12 10A0271 耳门盖 Tragus cover 1
13 04B0005 GB818-85 螺钉 Screw M6×20-4.8-Zn.D 3
14 00B0059 GB5783-86 螺栓 Bolt M16×35-8.8-Zn.D 4
15 06B0015 GB93-87 垫圈 Washer 16 4
16 06B0087 GB96-85 垫圈 Washer 16-140HV-Zn.D 4
17 11D0117 右支承销 Right support
pin 1
18 24C0034 升降机构 Lift mechanism 1
19 00B0102 GB5783-86 螺栓 Bolt M8×35-8.8-Zn.D 4
20 06B0006 GB93-87 垫圈 Washer 8 15
21 15A0285 固定块 Fixed block 2
22 24C0100 摇手 Handrail 1
23 00B0085 GB5783-86 螺栓 Bolt M8×25-8.8-Zn.D 11
24 06B0086 GB96-85 垫圈 Washer 8-140HV-Zn.D 11
25 10A0272 右围板 Right penal 1
26 17B0029 BFH003 密封条 Weather strip L=2020 2
27 10A0273 左围板 Left penal 1
28 37C0037 左门 Left door 1
29 11D0118 左支承销 Left support
pin 1
30 84A0104 缓冲条 Buffer strip 6
31 06B0003 GB93-87 垫圈 Washer 6 1
32 11D0080 销 Pin 1
33 55A0949 轴套 Bearing bush 2
35 09B0036 GB12618-90 抽芯铆钉 Self-plugging
rivet
3.2×12-10 4
37 74A0093 ZL50C.22-7A 提示牌 Warning board 1
151
38 10B0014 GB1152-89 油杯 Oil Cup M10×1 2
39 00B0054 GB5783-86 螺栓 Bolt M6×10-8.8-Zn.D 2
40 06B0024 GB97.1-85 垫圈 Washer 6-140HV-Zn.D 2
