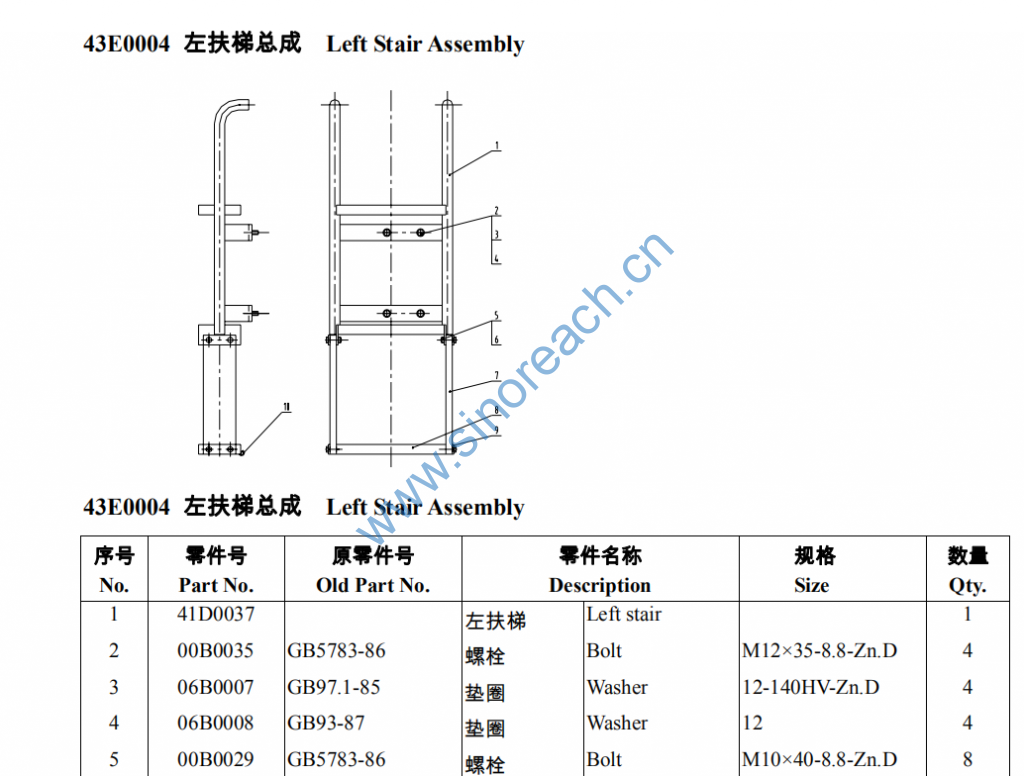

43E0004 左扶梯总成 Left Stair Assembly CLG842

1 41D0037 左扶梯 Left stair 1
2 00B0035 GB5783-86 螺栓 Bolt M12×35-8.8-Zn.D 4
3 06B0007 GB97.1-85 垫圈 Washer 12-140HV-Zn.D 4
4 06B0008 GB93-87 垫圈 Washer 12 4
5 00B0029 GB5783-86 螺栓 Bolt M10×40-8.8-Zn.D 8
6 03B0053 GB6170-86 螺母 Nut M10-8-Zn.D 8
7 84A0093 胶带 Rubber belt 2
8 21A0276 脚踏 Pedal 1
9 11A0223 夹板 Clamp plate 4
10 84A0158 密封条 Weather strip L=300 1
