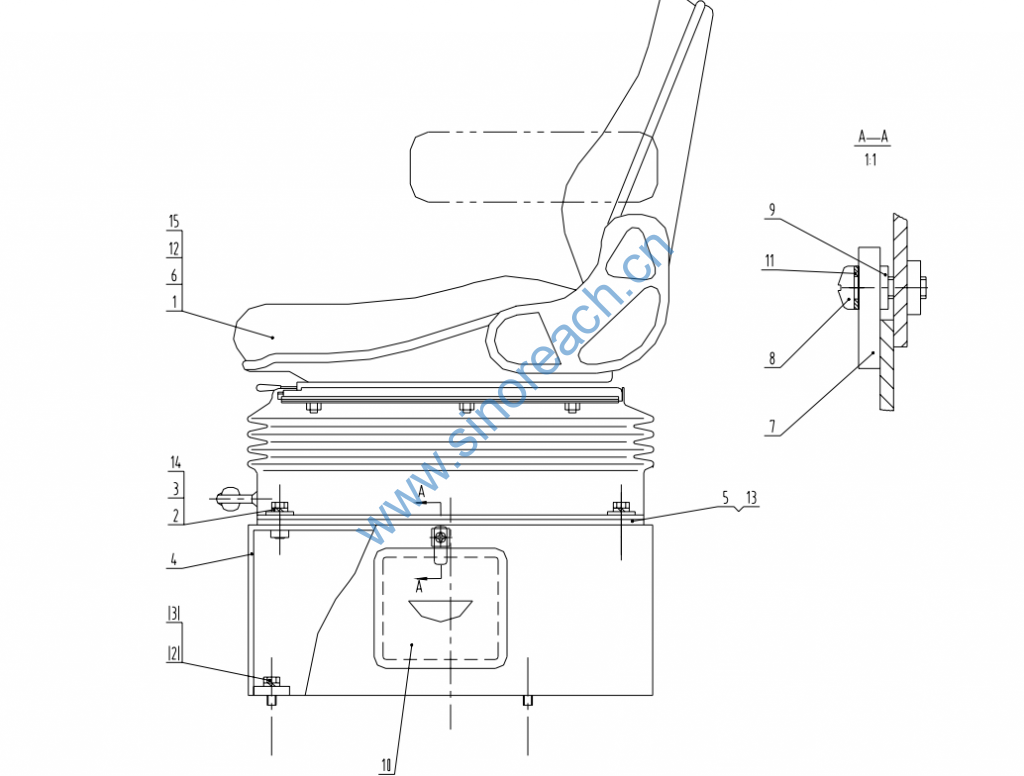

CLG842 46E0002 座椅总成 Seat Assembly

1 47C0090 DS44/1HB 司机椅 Drivers seat 1 2 00B0336 GB5783-86 螺栓 Bolt M8x25-8.8-Zn.D 8 3 06B0006 GB93-87 垫圈 Washer 8 8 4 00D0267 支架 Bracket 1 5 23D0568 板 Board 1 6 47C0036 DS44/1HB 司机椅 Drivers seat 1
7 13A0398 板 Board 1
8 04B0257 GB818-85 螺钉 Bolt M8x25-4.8Zn.D 1
9 26A0096 套 Set 1
10 37C0011 工具箱 Toolbox 1
11 06B0218 GB97.1-85 垫圈 Washer 8-140-Zn.D 1
12 47C0114 DS85H/90 司机椅 Drivers seat 1 155 13 11A0769 板 Board 1 14 06B0250 GB96-85 垫圈 Washer 8-140-Zn.D 4 15 47C0219 SN6-0000 司机椅 Drivers seat 1
