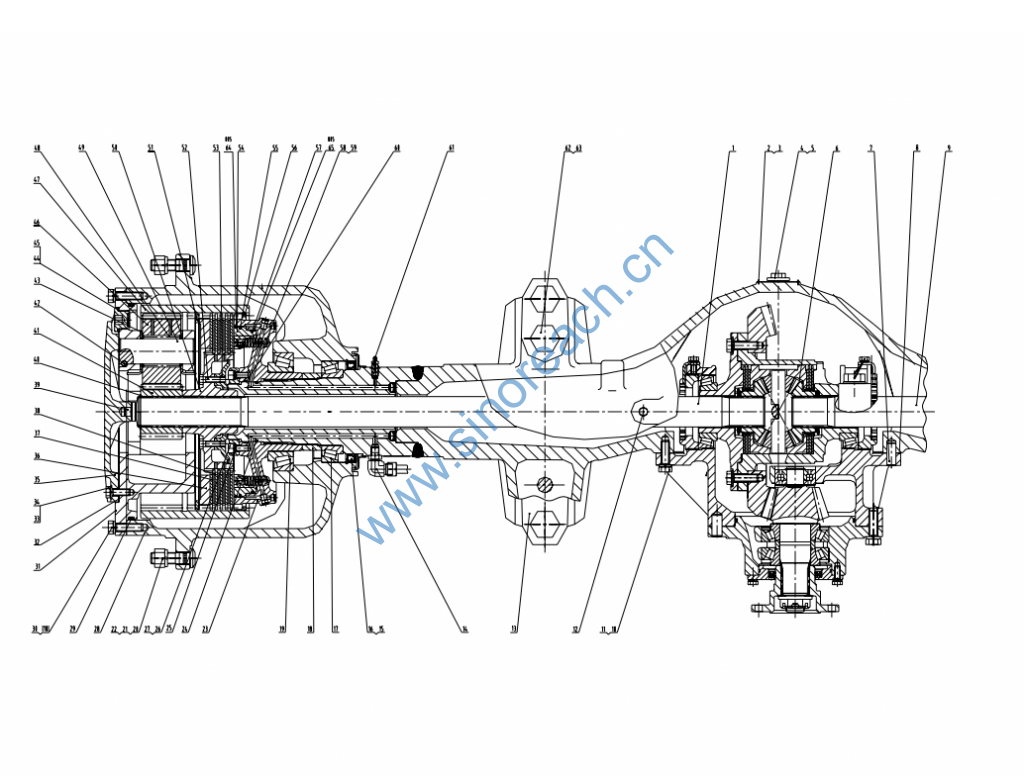

CLG842 01E0087 前桥总成 Front Axle Assembly

1 62A0070 左半轴 Left half axle 1
2 74A1185 桥铭牌 Axle nameplate 1
3 09B0002 GB827-86 铆钉 Rivet 2×5 4
4 03B0212 螺塞 Screw plug 2
5 06B0055 JB982-77 垫圈 Washer 27 2
6 41C0113 主传动总成 Main drive assembly 1
7 60A0011 ZL50C.2-26 定位销 Locating pin 2
8 82A0031 zl40B.2-1 垫片 Gasket 1
9 62A0071 右半轴 Right half axle 1
10 06B0013 GB93-87 垫圈 Washer 14 54
11 00B0057 GB5783-86 螺栓 Bolt M14×45-8.8-Zn.D 14
12 03B0406 Q9001 通气塞 Air plug Z1/8″-27 1
13 24D0034 桥壳轮边支承 Axle housing wheel
support
1
14 31C0038 ZL50CIII.12.
12A
直角接头 Corner joint 2
15 13B0220 BAUSL 油封 Oil seal 150×180×15 2
16 76A0002 ZL50C.2-7 卡环 Snap ring 2
17 23B0054 NSK圆锥滚子轴承 NSK tapered roller
bearing
120×180×38 2
18 51C0093 轴套 Bearing bush 2
19 23B0055 NSK圆锥滚子轴承 NSK tapered roller
bearing
140×210×45 2
20 01B0379 螺栓 Bolt 24
21 03B0150 GB6171-86 螺母 Nut M20×1.5-8-Zn.D 24
22 06B0019 GB93-87 垫圈 Washer 20 24
23 24D0053 内齿轮支承焊接件 Ring Gear Support
Assembly
1
24 12B0216 GB3452.1-92 O形圈 O-Ring 97.5×3.55 2
25 03B0431 圆螺母 Round nut 2
26 04B0022 GB70-85 螺钉 Screw M10×25-8.8-Zn.D 4
27 06B0002 GB93-87 垫圈 Washer 10 4
28 70A0096 轮毂 Wheel hub 2
29 12B0426 GB3452.1-92 O形圈 O-Ring 365×7 2
30 00B0103 GB5783-86 螺栓 Bolt M14×50-10.9-Zn.D 40
31 70A0089 行星轮架 Planet wheel frame 2
32 81A0081 垫片 Gasket 2
33 00B0017 GB5783-86 螺栓 Bolt M12×30-8.8-Zn.D 12
34 06B0008 GB93-87 垫圈 Washer 12 12
161
35 53A0262 端盖 End cover 2
36 52A0127 承压盘 Bearing disc 2
37 51C0097 对偶钢片 Dual sheet steel 10
38 37C0035 摩擦片 Friction plate 8

39 61A0019 ZL50C.2-20 轴 Shaft 2
40 07B0028 GB894.1-86 挡圈 Retainer ring 55 2
41 41A0100 太阳轮 Sun gear 2
42 20B0026 GB308-89 钢球 Steel ball 9.525 6
43 20A2841 垫片 Gasket 12
44 03B0432 螺塞 Screw plug 2
45 06B0054 JB982-77 垫圈 Washer 33 2
46 41A0101 JB982-77 行星轮 Planet wheel 6
47 46A0009 内齿轮 Internal gear 2
48 20B0045 滚针 Needle roller 168
49 61A0263 行星轮轴 Planet wheel axle 6
50 72A0293 摩擦片支承 Friction plate
support
2
51 07B0078 挡圈 Retainer ring 2
52 00B0002 GB5783-86 螺栓 Bolt M10×35-8.8-Zn.D 8
53 72A0292 圆盘 Disc 2
54 50A0133 活塞 Piston 2
55 12B0421 密封圈 Seal ring 2
56 07B0077 挡圈 Retainer ring 2
57 12B0425 密封圈 Seal ring 2
58 10B0070 弹簧 Spring 16
59 75A0130 钢丝挡圈 Steel retainer ring 4
60 12B0423 GB3452.1-92 O形圈 O-Ring 106×3.55 2
61 00A0044 ZL50C.2.2-4 放气嘴 Bleeder valve 2
62 01B0001 GB5785-86 螺栓 Bolt M30×2×160-8.8-Zn.D 8
63 03B0195 CB083033-3 锁紧螺母 Lock nut M30×2-8 8
64 88A0456 支承环 Support ring 2
65 88A0523 支承环 Support ring 2
