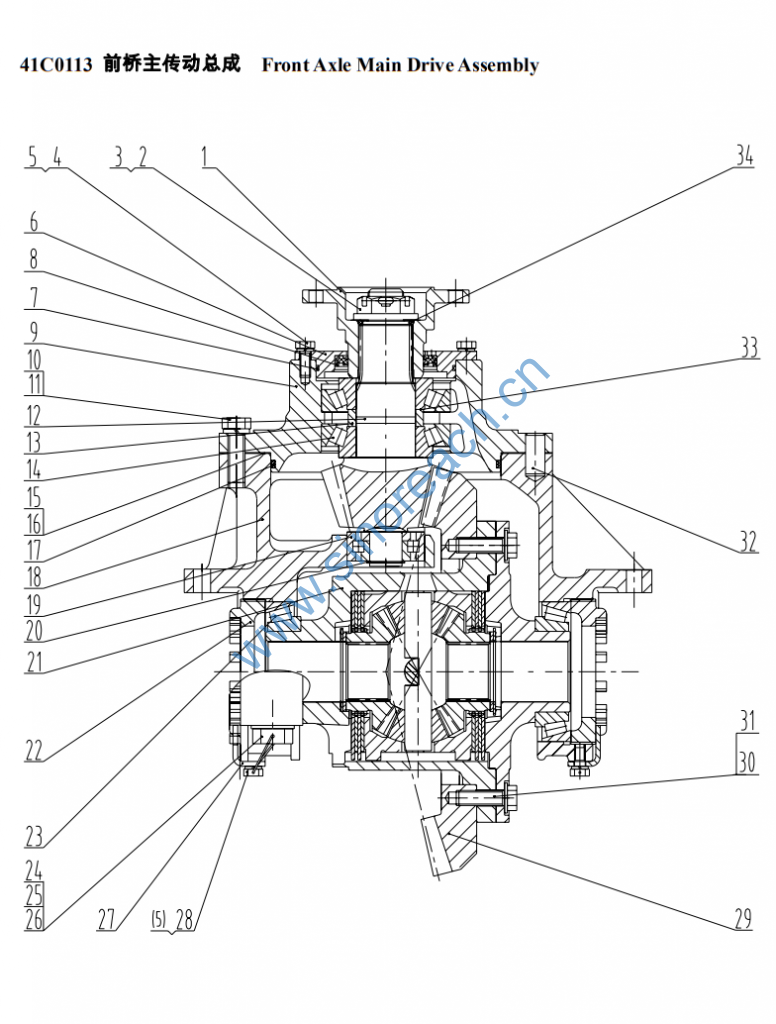

CLG842 41C0113 前桥主传动总成 Front Axle Main Drive Assembly

1 04A0020 ZL40B.2.1.1-1 法兰 Flange 1
2 03B0050 BS305-31 带槽螺母 Castle nut 1
3 08B0032 GB91-86 销 Pin 6.3×60-Zn.D 1
4 00B0012 GB5783-86 螺栓 Bolt M10×25-8.8-Zn.D 4
5 06B0002 GB93-87 垫圈 Washer 10 6
6 53A0266 油封座 Oil seal Seat 1
7 12B0034 GB3452.1-92 O形圈 O-Ring 122×3.55 1
8 13B0214 BAUMSLX7
405449
密封圈 Seal ring 70X95X12 1
9 70A0094 轴承座 Bearing seat 1
10 00B0094 GB5783-86 螺栓 Bolt M16×45-8.8-Zn.D 11
11 06B0015 GB93-87 垫圈 Washer 16 11
12 43A0060 主动螺旋锥齿轮 Driving Helical Bevel Gear 1
13 55A0078 ZL50C.2.1-18 轴套 Bearing bush 1
14 23B0051 NSK圆锥滚子轴
承
NSK tapered roller bearing 55×120×31.5 2
15 57A0079 调整垫片0.50 Adjusting Shim 0.50 2
16 57A0078 调整垫片0.20 Adjusting Shim 0.20 2
17 12B0246 GB3452.1-92 O形圈 O-ring 200×5.3 1
18 41C0114 托架总成 Bracket Assembly 1
19 22B0005 NSK圆柱滚子轴
承
NSK Cylindrical roller
bearing
30×72×27 1
20 07B0027 GB894.1-86 挡圈 Retainer ring 30 1
21 41C0110 A型限滑差速器
总成
A type limited-slipping
differential assembly
1
22 03B0130 ZL40B.2.1-9 调整螺母 Adjusting nut 2
23 23B0017 GB/T297-1994 圆锥滚子轴承
32215
Tapered roller bearing 32215 75×130×33.25 1
24 02B0032 GB32.1-88 螺栓 Bolt M22×90-10.9-Zn.D 4
25 06B0270 垫圈 Washer 22-200HV-Zn.D 4
26 40B0006 铁丝φ1.5×450 Wire φ1.5×450 2
27 21A0040 ZL50C.2.1-14 锁紧片 Lock sheet 1
28 02B0012 GB32.1-88 螺栓 Bolt M10×20-8.8-Zn.D 2
29 43A0061 大螺旋锥齿轮 Major helical bevel gear 1
30 00B0057 GB5783-86 螺栓 Bolt M14×45-8.8-Zn.D 12
31 06B0102 ZL50F.3-4 淬硬垫圈 Quench hardening washer 12
165
32 66A0013 ZL50F.3-8 销 Pin 2
33 57A0027 ZL50C.2.1-19 垫片 Shim 1
34 12B0105 GB3452.1-92 O形圈 O-ring 42.5×5.3 1
