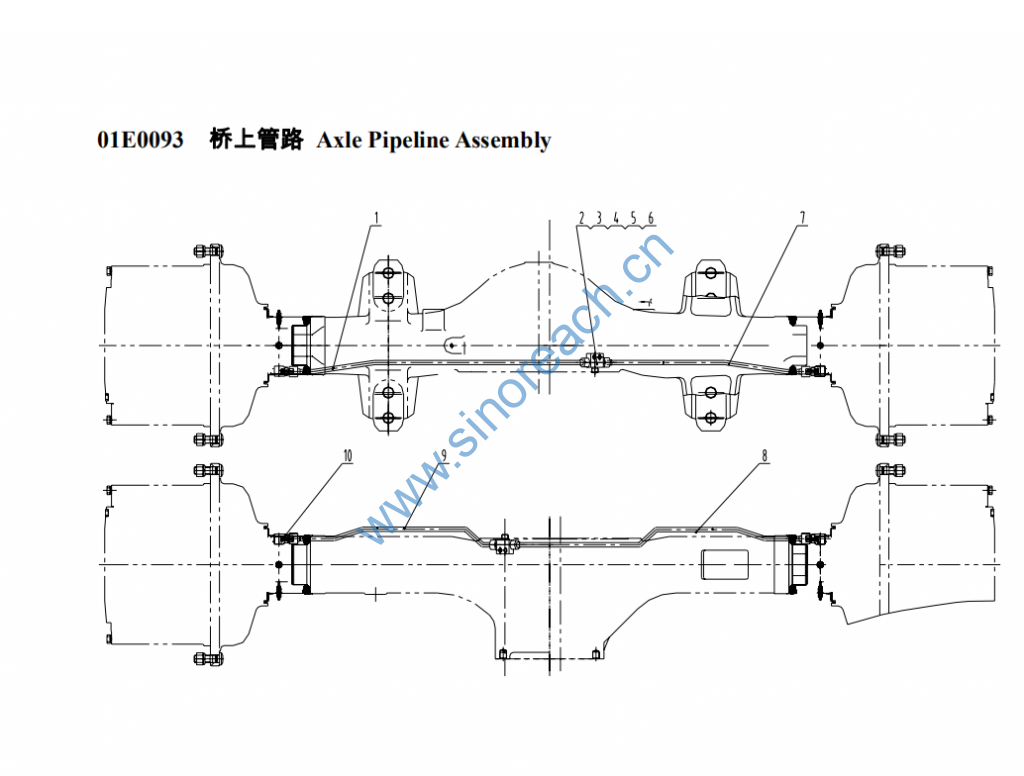

CLG842 01E0093 桥上管路 Axle Pipeline Assembly

1 01C0101 前桥左端油管总成 Left oil pipe of front
axle assembly
1
2 02A0219 三通接头 T-joint 2
3 00B0102 GB5783-86 螺栓 Bolt M8×35-8.8-Zn.D 4
4 06B0006 GB93-87 垫圈 Washer 8 4
5 12B0344 GB3452.1-92 O形圈 O-ring 11.8×1.8 4
6 15A0712 固定块 Fixed block 2
7 01C0102 前桥右端油管总成 Right oil pipe of front
axle assembly
1
8 10D1138 后桥右端油管总成 Right oil pipe of rear
axle assembly
1
9 10D1137 后桥左端油管总成 Left oil pipe of rear
axle assembly
1
10 30C0025 ZL50CIII.12.20 接头 Joint 4
