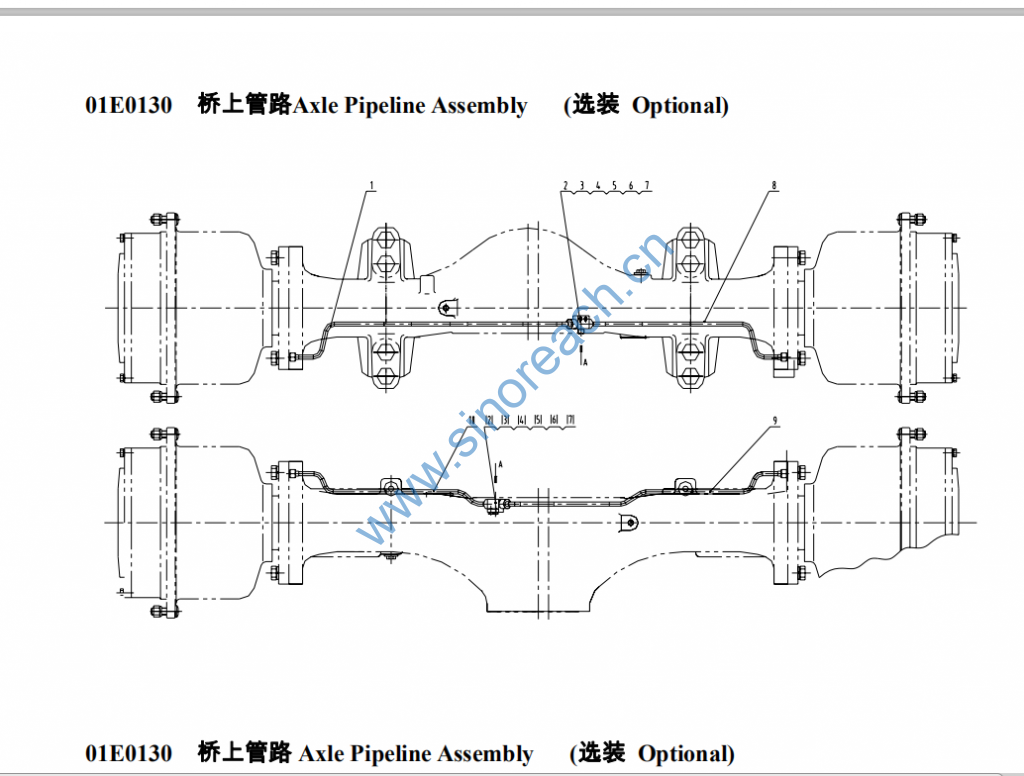

CLG842 01E0130 桥上管路 Axle Pipeline Assembly (选装 Optional)

1 10D1338 前桥左端油管 Left oil pipe of
front axle
assembly
1
2 02A0184 三通接头 T-joint 2
3 00B0102 GB5783-86 螺栓 Bolt M8×35-8.8-Zn.D 4
4 06B0006 GB93-87 垫圈 Washer 8 4
5 12B0344 GB3452.1-92 O形圈 O-ring 11.8×1.8 4
6 15A0712 固定块 Fixed block 2
7 12B0285 GB3452.1-92 O形圈 O-ring 10.6×1.8
8 10D1339 前桥右端油管 Right oil pipe
of front axle
assembly
1
9 10D1341 后桥右端油管 Right oil pipe
of rear axle
assembly
1
10 10D1340 后桥左端油管 Left oil pipe of
rear axle
assembly
1
