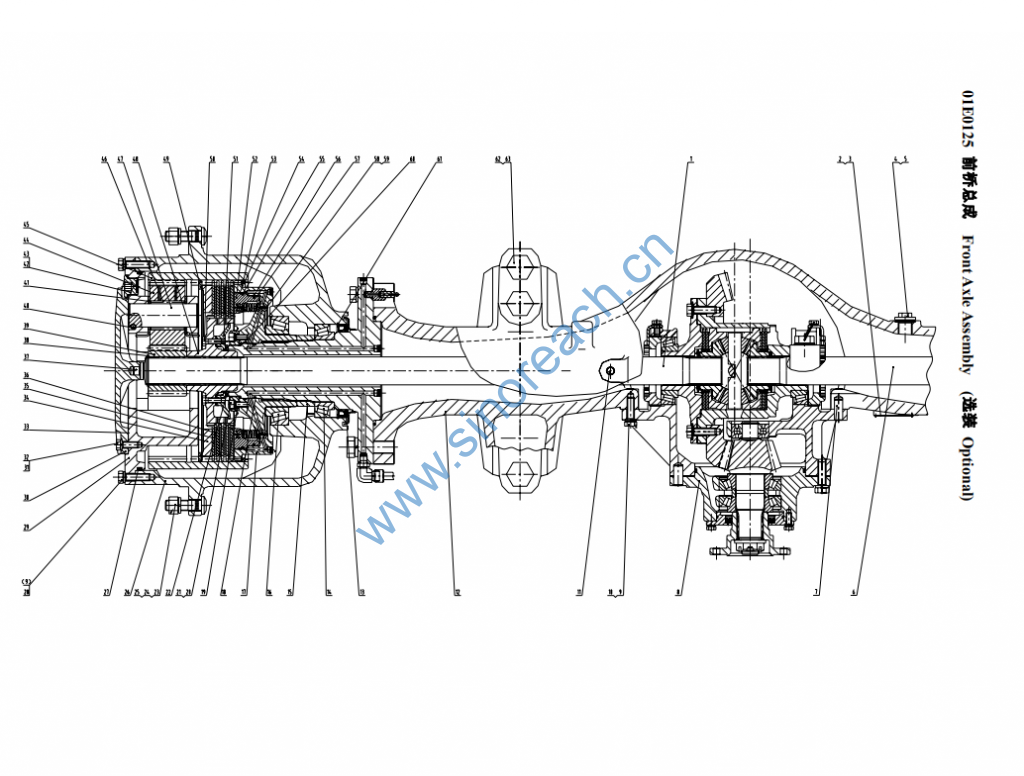

CLG842 01E0125 前桥总成 Front Axle Assembly (选装 Optional)

1 62A0070 左半轴 Left half axle 1
2 74A1484 桥铭牌 Axle nameplate 1
3 09B0002 GB827-86 铆钉 Rivet 2×5 4
4 03B0212 螺塞 Screw plug 2
5 06B0055 JB982-77 垫圈 Washer 27 2
6 62A0071 右半轴 Right half axle 1
7 60A0011 ZL50C.2-26 定位销 Locating pin 2
8 41C0113 zl40B.2-1 主传动总成 Main drive assembly 1
9 06B0013 GB93-87 垫圈 Washer 14 54
10 00B0375 GB5783-86 螺栓 Bolt M14×45-10.9-Zn.D 14
11 03B0406 Q9001 通气塞 Air plug Z1/8″-27 1
12 41C0182 桥壳轮边支承 Axle housing wheel
support
1
13 13B0220 BAUSL 密封圈 Seal ring 150×180×15 2
14 23B0054 NSK 圆锥滚子
轴承
NSK tapered roller
bearing
120×180×38 2
15 51C0093 轴套 Bearing bush 2
16 23B0055 NSK 圆锥滚子
轴承
NSK tapered roller
bearing
140×210×45 2
17 24D0053 内齿轮支承焊
接件
Support weldment of
inner gear
1
18 12B0216 GB3452.1-92 O形圈 O-ring 97.5×3.55 2
19 03B0431 圆螺母 Round nut 2
20 04B0022 GB70-85 螺钉 Screw M10×25-8.8-Zn.D 4
21 06B0002 GB93-87 垫圈 Washer 10 4
22 06B0274 垫圈 Washer 2
23 01B0379 ZL50C.2-7 螺栓 Bolt 24
24 03B0150 GB6171-86 螺母 Nut M20×1.5-8-Zn.D 24
25 06B0019 GB93-87 垫圈 Washer 20 24
26 70A0096 轮毂 Wheel hub 2
27 12B0426 GB3452.1-92 O形圈 O-ring 365×7 2
28 00B0103 GB5783-86 螺栓 Bolt M14×50-10.9-Zn.D 40
29 70A0089 行星轮架 Planet wheel frame 2
30 53A0262 端盖 End cover 2
31 00B0017 GB5783-86 螺栓 Bolt M12×30-8.8-Zn.D 12
32 06B0008 GB93-87 垫圈 Washer 12 12
33 81A0081 垫片 Gasket 2
34 52A0127 承压盘 Bearing disc 2
180
35 51C0097 对偶钢片 Dual steel strap 10
36 37C0035 摩擦片 Friction plate 8

37 61A0019 ZL50C.2-20 轴 Axle 2
38 07B0028 GB894.1-86 挡圈 Retainer ring 55 2
39 41A0100 太阳轮 Sun gear 2
40 20B0026 GB308-89 钢球 Steel ball 9.525 6
41 20A0011 ZL50C.2-15A 垫片 Gasket 12
42 03B0432 螺塞 Screw plug 2
43 06B0054 JB982-77 垫圈 Washer 33 2

44 41A0101 行星轮 Planet gear 6
45 46A0009 内齿轮 Inner gear 2
46 20B0045 滚针 Needle roller 168
47 61A0263 行星轮轴 Planet wheel axle 6
48 72A0293 摩擦片支承 Friction plate
support
2
49 07B0078 挡圈 Retainer ring 2
50 00B0002 GB5783-86 螺栓 Bolt M10×35-8.8-Zn.D 8
51 72A0292 圆盘 Disc 2
52 50A0133 活塞 Piston 1
53 07B0077 挡圈 Retainer ring 2
54 88A0456 支承环 Support ring 2
55 12B0421 密封圈 Seal ring 2
56 12B0425 密封圈 Seal ring 2
57 88A0523 支承环 Support ring 2
58 10B0070 弹簧 Spring 16
59 75A0130 钢丝挡圈 Steel retainer ring 4
60 12B0423 GB3452.1-92 O形圈 O-ring 106×3.55 2
61 76A0002 卡环 Snap ring 2
62 01B0001 GB5785-86 螺栓 Bolt M30×2×160-8.8-Zn.D 8
63 03B0195 锁紧螺母 Lock nut
