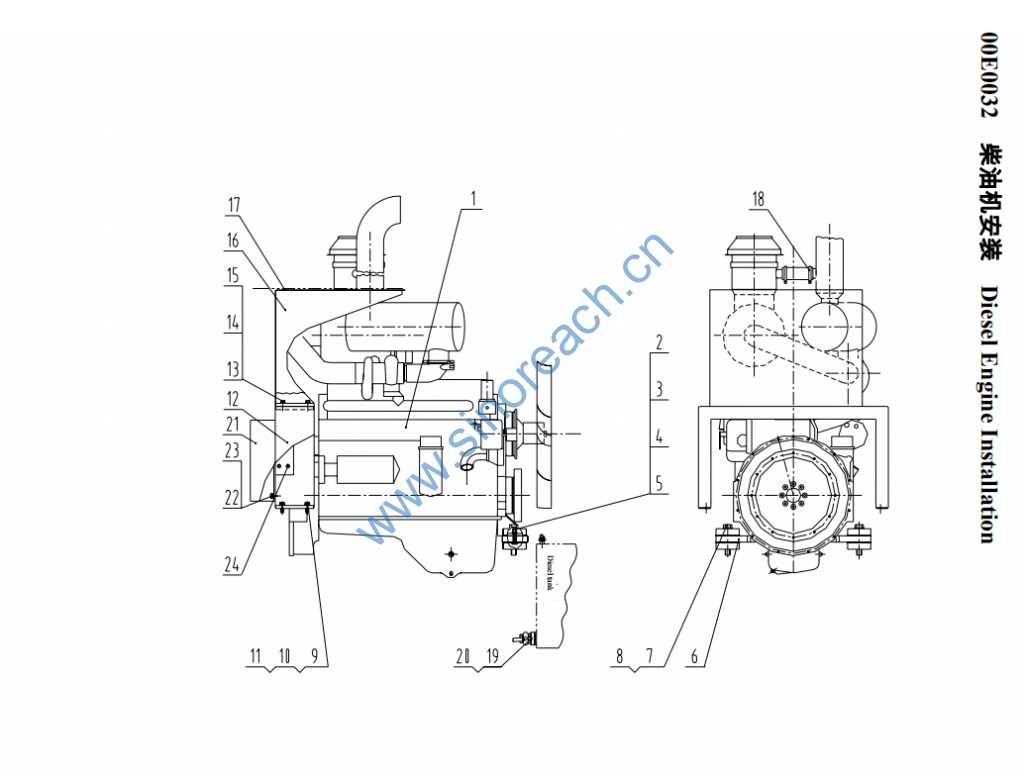

CLG842 00E0032 柴油机安装 Diesel Engine Installation

1 40C0182 D6114ZG9B 柴油机 Diesel engine 1
2 01B0163 GB5782-86 螺栓 Bolt M16×75-8.8-Zn.D 2
3 03B0095 GB6170-86 螺母 Nut M16-8-Zn.D 2
4 06B0012 GB97.1-85 垫圈 Washer 16-140HV-Zn.D 2
5 06B0015 GB93-87 垫圈 Washer 16 2
6 50C0002 ZL50G.1.1 柴油机支撑 Diesel engine
support
1
7 01B0149 GB5782-86 螺栓 Bolt M24X130-8.8-Zn.D 2
8 06B0068 GB97.1-85 垫圈 Washer 24-140HV-Zn.D 2
9 00B0273 GB5783-86 螺栓 Bolt M14×40-8.8-Zn.D 4
10 06B0009 GB97.1-85 垫圈 Washer 14-140HV-Zn.D 4
11 06B0013 GB93-87 垫圈 Washer 14 4
12 42D0034 支撑架 Carriage 1
13 00B0035 GB5783-86 螺栓 Bolt M12X35-8.8-Zn.D 4
14 06B0007 GB97.1-85 垫圈 Washer 12-140HV-Zn.D 4
15 06B0008 GB93-87 垫圈 Washer 12 4
16 02D0159 支座 Bearing 1
17 35C0060 4002R 密封条 Weather strip 1
18 15B0055 ZB/T32005.1-88 双钢丝式环箍 Dual wire hoop 55 2
19 00B0002 ZL50C.1.7-3 螺钉 Screw 2
20 06B0117 JB982-77 垫圈 Washer 4
21 20A1471 封板 Closing plate 2
22 00B0007 GB5783-86 螺栓 Bolt M8X16-8.8-Zn.D 4
23 06B0006 GB93-87 垫圈 Washer 8 4
24 03B0093 ZL50C.10.18-1 螺塞 Screw plug 8
