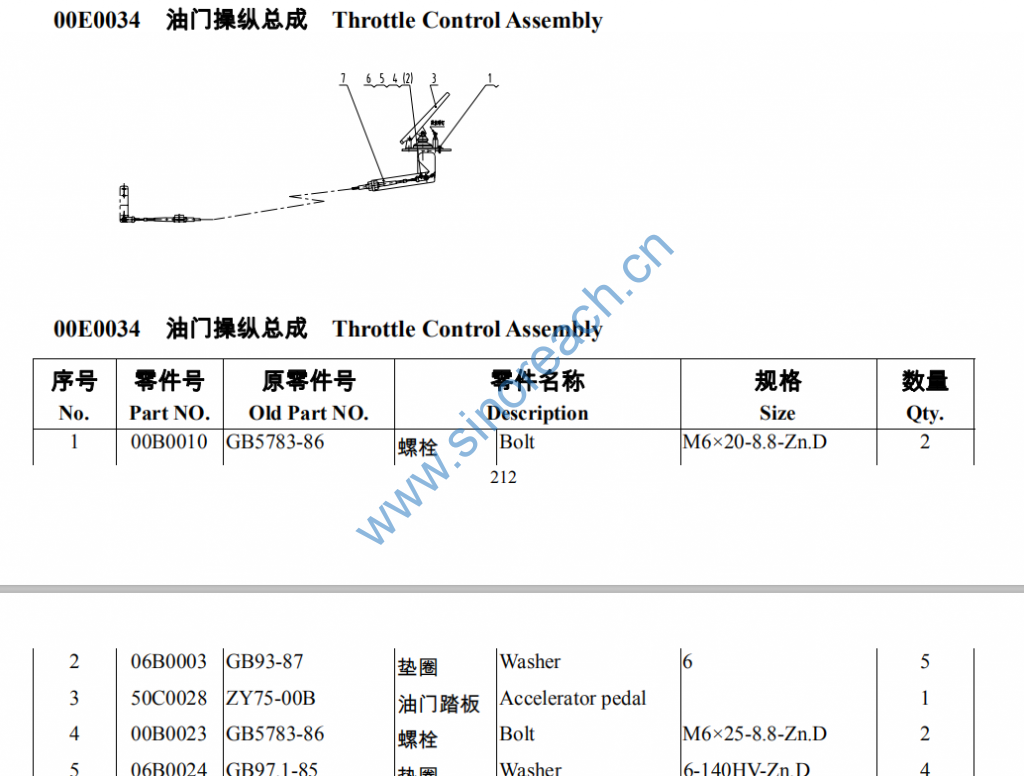

CLG842 00E0034 油门操纵总成 Throttle Control Assembly

1 00B0010 GB5783-86 螺栓 Bolt M6×20-8.8-Zn.D 2
213
2 06B0003 GB93-87 垫圈 Washer 6 5
3 50C0028 ZY75-00B 油门踏板 Accelerator pedal 1
4 00B0023 GB5783-86 螺栓 Bolt M6×25-8.8-Zn.D 2
5 06B0024 GB97.1-85 垫圈 Washer 6-140HV-Zn.D 4
6 03B0036 GB6170-86 螺母 Nut M6-8-Zn.D 2
7 21A0859 ZL50C.1-4 支板 Supporting plate 1
