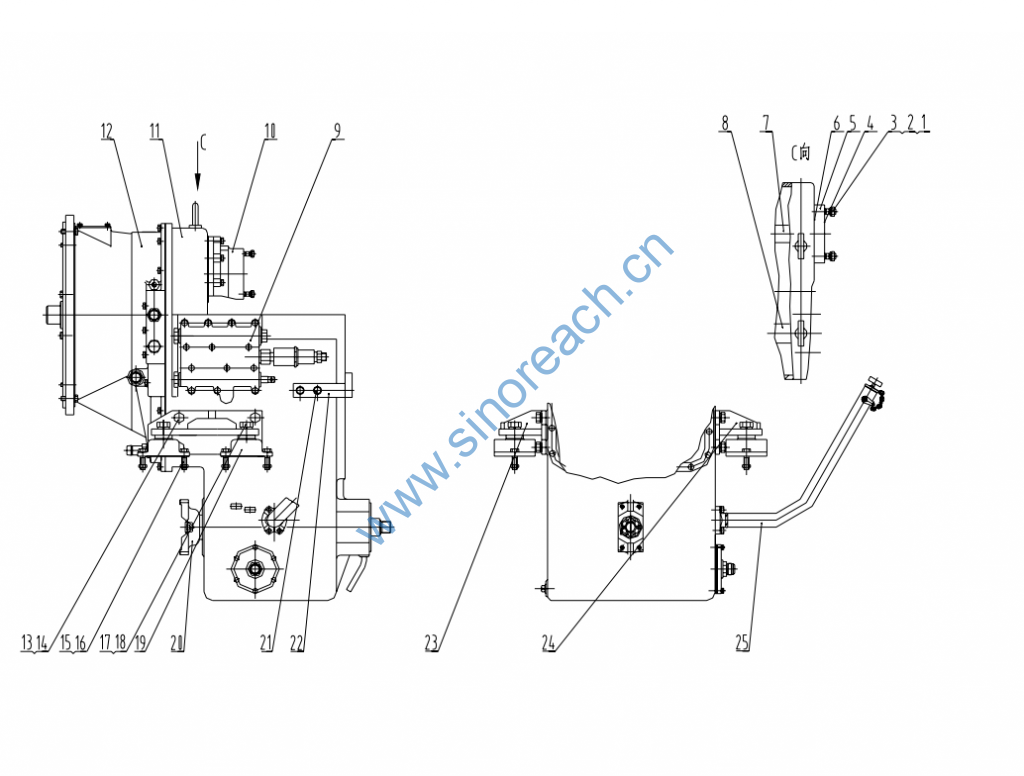

CLG842 05E0007 变矩器-变速箱安装总成 Torque-converter & Transmission case Installation Assembly

1 05B0030 GB898-88 螺柱 Stud AM16×40-8.8-Zn.D 2
2 03B0221 GB6170-86 螺母 Nut M16-8-Zn.D 2
3 06B0015 GB93-87 垫圈 Washer 16 2
4 82A0063 密封垫片 Sealing gasket 0.4 1
5 04A0060 转向油泵连接法兰 Steering pump
connecting flange
1
6 82A0056 密封垫片 Sealing gasket 1
7 40A0034 转向油泵驱动轴齿轮 Steering pump driving
shaft
1
8 40A0007 ZL30F.6-2 轴齿轮 Shaftgear 1
9 12C0103 变速操纵阀 Shift control valve 1
10 11C0001 BB70A 变速泵 Shifting pump 1
11 42C0006 BS305 变速箱 Gear box 1
12 52C0002 ZL50C.3.3 变矩器 Torque-converter 1
13 00B0016 GB5783-86 螺栓 Bolt M18×40-8.8-Zn.D 8
14 10A0949 扣紧片 Fasten shim 8
15 00B0232 GB5783-86 螺栓 Bolt M14×50-8.8-Zn.D 8
16 03B0034 CB071417-3 尼龙锁紧螺母 Nylon lock nut M14-8-Z.D 8
17 01B0165 GB5782-86 螺栓 Bolt M22×65-10.9-Zn.D 4
18 00B0042 GB93-87 垫圈 Washer 22 4
19 34C0040 E220 E型减震器 E type shock absorber 4
20 04A0040 法兰 Flange 1
21 00B0031 GB5783-86 螺栓 Bolt M12×20-8.8-Zn.D 2
22 21A1050 推拉软轴安装支座 Installation bearing of
pull cable
1
23 02D0162 变速箱安装左支座 Left installation
bearing of gear box
1
24 02D0161 变速箱安装右支座 Right installation
bearing of gear box
1
25 52C0011 加油管 Oil filler pipe 1
