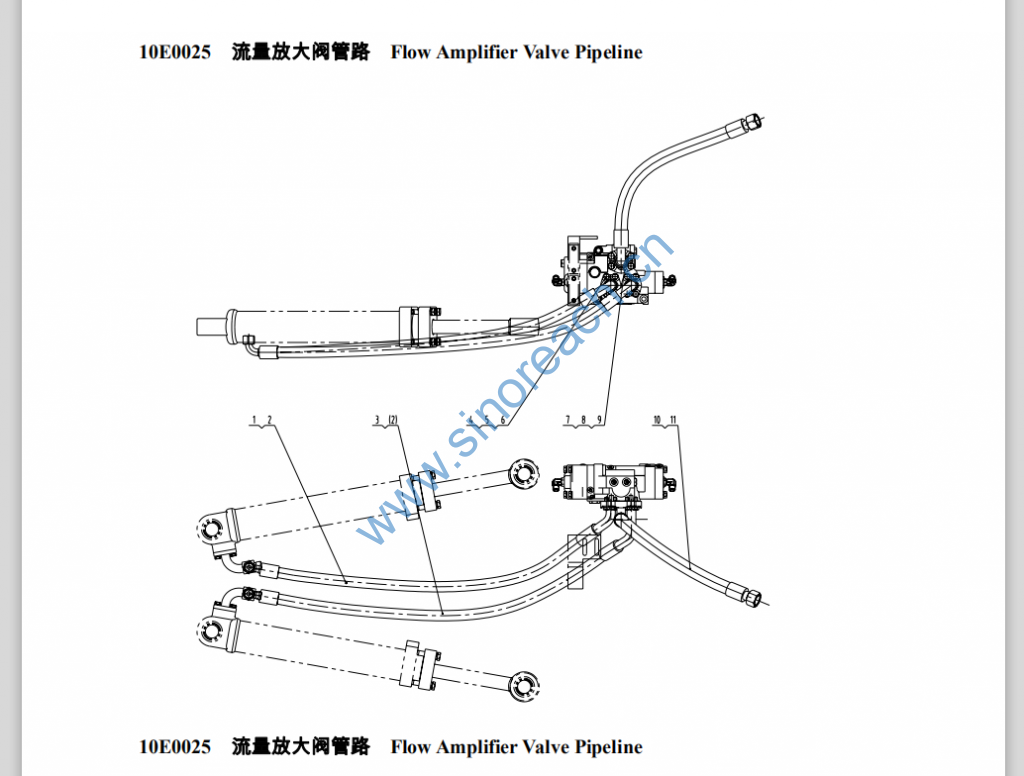

CLG842 10E0025 流量放大阀管路 Flow Amplifier Valve Pipeline

1 06C0164 软管总成 Hose
assembly
1
2 12B0015 GB3452.1-92 O形圈 O-ring 30×3.55 2
3 06C0409 软管总成 Hose
assembly
1
4 72A0027 ZL50C.9.17-6 压板 Pressboard 2
5 00B0019 GB5783-86 螺栓 Bolt M10×30-8.8-Zn.D 8
6 06B0002 GB93-87 垫圈 Washer 10 8
7 72A0010 ZL50C.10.4-6 压板 Pressboard 1
8 00B0035 GB5783-86 螺栓 Bolt M12×35-8.8-Zn.D 4
9 06B0008 GB93-87 垫圈 Washer 12 4
10 07C0097 软管总成 Hose
assembly
1
11 12B0009 GB3452.1-92 O形圈 O-ring 36.5×3.55 1
