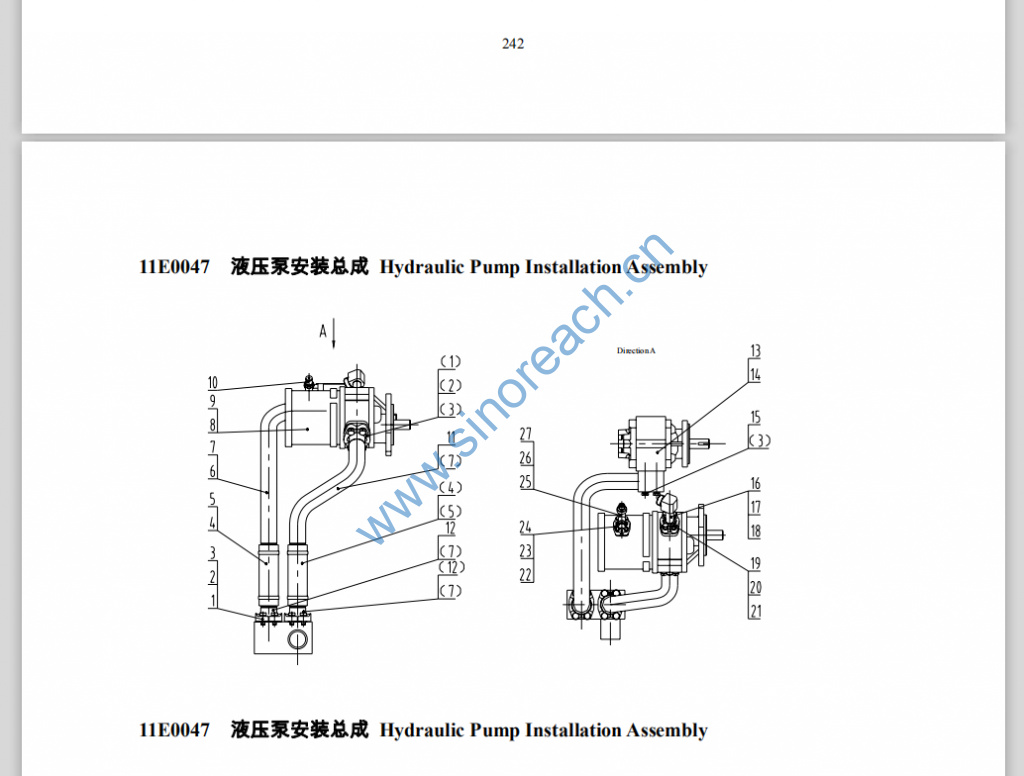

CLG842 11E0047 液压泵安装总成 Hydraulic Pump Installation Assembly

1 72A0003 ZL50C.9.12-1 压板 Pressboard 3
2 00B0017 GB5783-86 螺栓 Bolt M12×30-8.8-Zn.D 12
3 06B0008 GB93-87 垫圈 Washer 12 16
4 32A0093 吸油软管 Oil suction hose 2
5 15B0004 ZB T32 005.1-88 双钢丝式环箍 Dual wire hoop 65 4
6 10D0313 钢管总成 Steel pipe assembly 1
7 12B0019 GB3452.1-92 O形圈 O-ring 46.2×3.55 4
8 11C0038 CBGj2063/CBGj1010 齿轮泵 Gear pump 1
9 82A0059 ZL50G.9-4 密封垫片 Sealing gasket 1
10 44C0022 SMK20-M14×1.5-PC 测压接头 Pressure measuring
joint
1
11 10D0801 钢管总成 Steel pipe assembly 1
12 15D0088 管接头 Pipe joint 2
13 11C0039 CBGj3125 齿轮泵 Gear pump 1
14 80A0010 BB70A-2 密封垫片 Sealing gasket 1
15 00B0101 GB5782-86 螺栓 Bolt M12×40-8.8-Zn.D 4
16 15D0089 管接头 Pipe joint 1
17 12B0015 GB3452.1-92 O形圈 O-ring 30×3.55 1
18 12B0292 GB3452.1-92 O形圈 O-ring 21.2×1.8 1
19 72A0027 ZL50C.9.17-6 压板 Pressboard 1
Direction A
244
20 00B0019 GB5783-86 螺栓 Bolt M10×30-8.8-Zn.D 4
21 06B0002 GB93-87 垫圈 Washer 10 4
22 54A0071 ZL20.10.20-1 压板 Pressboard 1
23 00B0020 GB5783-86 螺栓 Bolt M8×30-8.8-Zn.D 4
24 06B0006 GB93-87 垫圈 Washer 8 4
25 15D0183 管接头 Pipe joint 1
26 12B0004 GB3452.1-92 O形圈 O-ring 23.6×3.55 1
27 12B0285 GB3452.1-92 O形圈 O-ring 10.6×1.8 1
