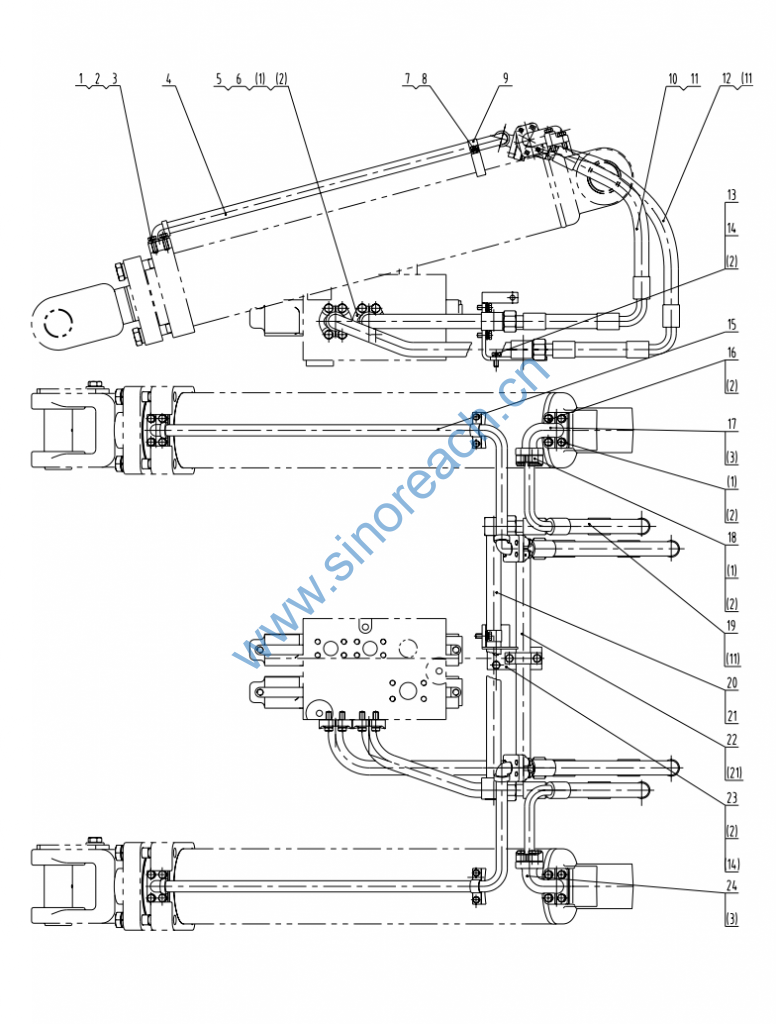

CLG842 11E0117 动臂缸管路 Movable Arm Cylinder Pipeline

1 00B0019 GB5783-86 螺栓 Bolt M10×30-8.8-Zn.D 36
2 06B0002 GB93-87 垫圈 Washer 10 46
3 12B0003 GB3452.1-92 O形圈 O-ring 25.8×3.55 4
4 10D0304 钢管总成 Steel pipe
assembly
1
5 72A0321 压板 Pressboard 2
6 12B0009 GB3452.1-92 O形圈 O-ring 36.5×3.55 2
7 00B0075 GB5783-86 螺栓 Bolt M8×20-8.8-Zn.D 4
8 06B0006 GB93-87 垫圈 Washer 8 4
9 20A0631 管夹 Pipe clamp M8×20-8.8-Zn.D 2
10 06C0446 软管总成 Hose
assembly
1
11 12B0015 GB3452.1-92 O形圈 Clamp 30×3.55 4
12 06C0447 软管总成 Hose
assembly
2
13 00D0556 支架 Bracket 1
14 00B0005 GB5783-86 螺栓 Bolt M10×20-8.8-Zn.D 6
15 10D0305 钢管总成 Steel pipe
assembly
1
16 00B0048 GB5783-86 螺栓 Bolt M10×45-8.8-Zn.D 4
17 03A0058 弯头 Elbow 1
18 72A0027 ZL50C.9.17-6 压板 Pressboard 4
19 06C0448 软管总成 Hose
assembly
1
20 10D0655 钢管总成 Steel pipe
assembly
1
21 12B0292 GB3452.1-92 O形圈 O-ring 21.2×1.8 4
22 10D0656 钢管总成 Tube 1
23 20A0632 管夹 Pipe clamp 2
24 03A0059 弯头 Elbow 1
