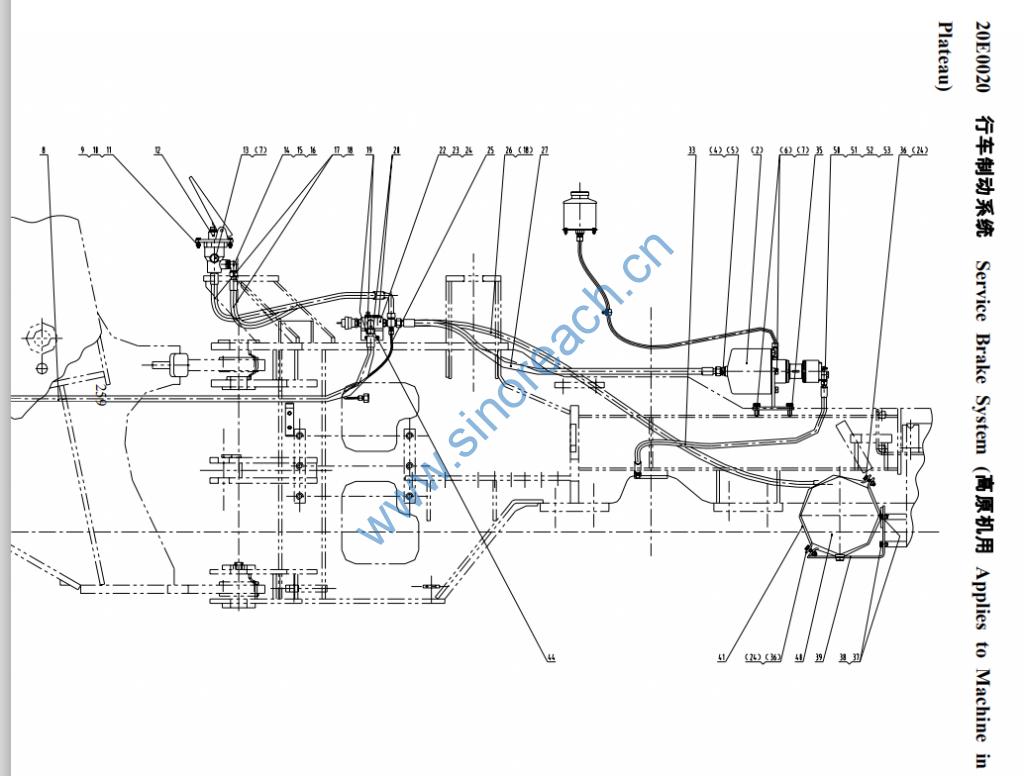

CLG842 20E0020 制动系统 Brake System (高原机用Applies to Machine in Plateau)

1 05C0059 Φ8-1P 高压软管 Φ8-1P high pressure
hose 1
2 13C0075 LG-ZL50 加力器总成 Assistor assembly 2
3 00B0038 GB5783-86 螺栓 Bolt M14X30-8.8-Zn
.D 10
4 06B0013 GB93-87 垫圈 Washer 14 10
5 00D0391 前加力器支架 Front assistor
bracket 1
6 00A0050 ZL50C.12-6 接头 Joint 2
7 82A0028 ZL50C.12-2 垫 Pad 3
8 03C0002 ZL50C.12.4A 低压软管 L2000 Low pressure hose
L2000 1
9 00B0020 GB5783-86 螺栓 Bolt M8×30-8.8-Zn.
D 4
10 06B0006 GB93-87 垫圈 Washer 8 4
11 03B0177 GB6170-86 螺母 Nut M8-8-Zn.D 4
12 13C0004 XM-60C 气制动阀总成 Airbrake valve
assembly
1
13 03B0085 ZL50C.12-8 堵头 Chock plug 1
14 12B0242 GB1235-76 0 形圈 O-ring 25X2.4 4
15 03B0215 ZL50C.12A-20 锁紧螺母 Lock nut 4
16 01A0021 ZL50C.12-1 弯管接头 Bend joint 4
17 04C0025 Φ12.7-1P 低压软管 Φ12.7-1P low
pressure hose 2
18 81A0009 ZL50C.12.3-2 垫 Pad 6
19 00A0080 ZL50C.13-2A 接头 Joint 1
20 05A0101 螺塞 Screw plug 2
22 50D0077 接气块总成 To air block
assembly
1
23 00B0012 GB5783-86 螺栓 Bolt M10X25-8.8-Zn
.D 2
24 06B0002 GB93-87 垫圈 Washer 10 6
25 03C0014 YD450Φ6×1 尼龙管 Nylon hose 1
26 04C0026 Φ12.7-1P 低压软管 Φ12.7-1P low
pressure hose 1
27 04C0034 低压软管 L1700 Low pressure hose
L1700 1
33 05C0151 ZL50C.12A.25
A 制动软管 Brake hose 1
35 00D0262 加力器支架 Assistor bracket 1
36 00B0029 GB5783-86 螺栓 Bolt M10X40-8.8-Zn
.D 4
37 00B0031 GB5783-86 螺栓 Bolt M12X20-8.8-Zn
.D 4
38 06B0008 GB93-87 垫圈 Washer 12 4
39 00D0084 ZL50C.12.19 空气罐内固定圈 Fixed ring inside air
tank 2
40 13C0003 ZL50C.12.1 空气罐 Air tank 1
41 22A0020 ZL50C.12-14 空气罐外固定圈 Fixed ring outside
air tank 2
42 33C0003 ZL50C.12.3 四通接头 Four-way joint 2
43 00A0034 BF25-12A 接头 Joint 2
44 31C0032 ZL50C.12.5 直角接头 Elbow 1
48 03B0115 ZL50C.13-3 堵头 Chock plug 2
50 00A0046 ZL50C.2.2-11A 管接头螺栓 Pipe joint bolt 2
51 56A0046 ZL50C.2.2-10 垫圈 Washer 2
52 03A0022 ZJ160B-10 管接头 Pipe joint 2
53 56A0045 ZL50C.2.2-2 垫圈 Washer 2
54 00A0241 ZL50CIII.12-2 接头 Joint 1
