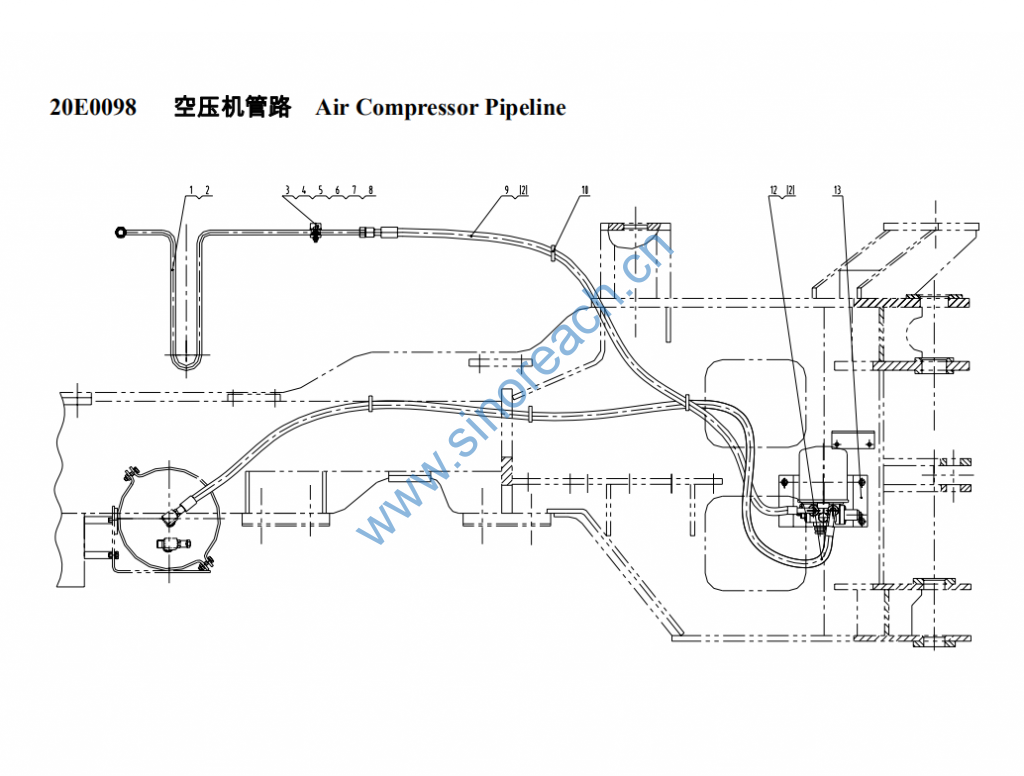

CLG842 20E0098 空压机管路 Air Compressor Pipeline

1 10D1207 钢管总成 Steel pipe
assembly 1
2 81A0009 ZL50C.12.3-2 垫 Pad 5
3 22A0799 管夹安装板 Mounting plate
of pipe clamp 1
4 88A0281 管夹 Pipe clamp 1
5 00B0085 GB5783-86 螺栓 Bolt M8×25-8.8-Zn.D 2
6 06B0006 GB93-87 垫圈 Washer 8 2
7 06B0005 GB97.1-85 垫圈 Washer 8-140HV-Zn.D 2
8 03B0021 GB6170-86 螺母 Nut M8-8-Zn.D 1
9 04C0113 低压软管 Low pressure 1
272
hose
10 37B0009 ZD150X3.5 扎带 Tape 4
11
12 06C2171 软管总成 Hose assembly 1
13 13C0141 空气干燥器安装总成
Air dryer
installation
assembly
1
