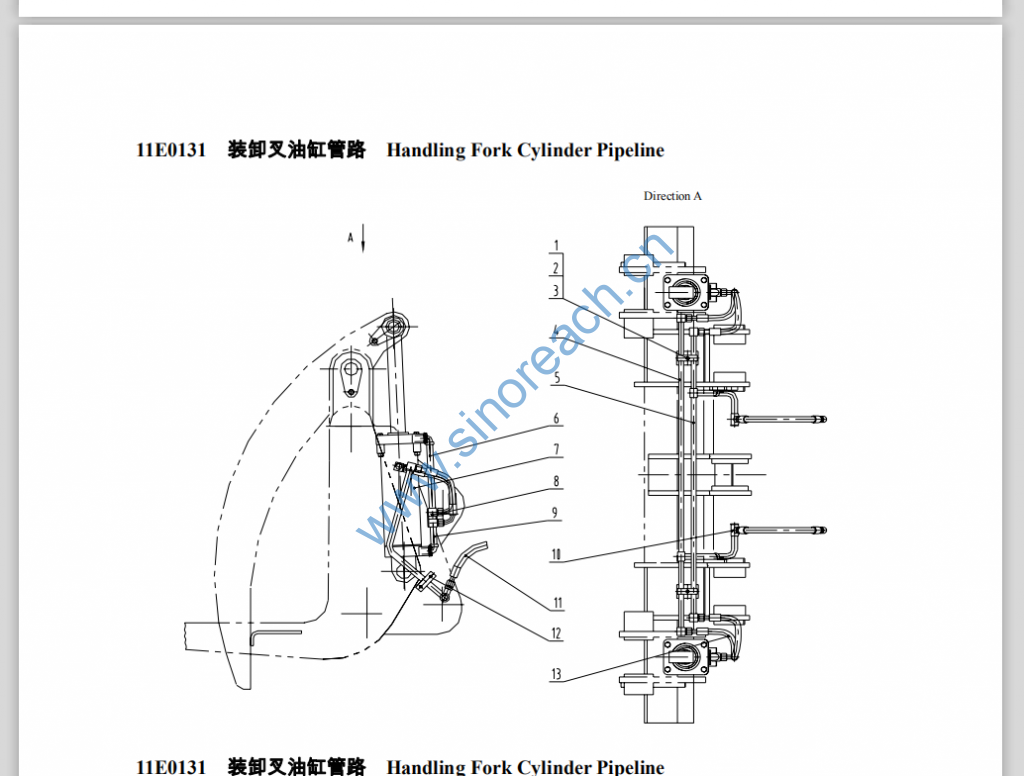

CLG842 11E0131 装卸叉油缸管路 Handling Fork Cylinder Pipeline

1 27A0068 ZL50C.27.2-1 管夹 Clamp 2
2 00B0075 GB5783-86 螺栓 Bolt M8×20-8.8-Zn.D 2
3 06B0006 GB93-87 垫圈 Washer 8 2
4 10D0100 ZL40B.26.2.3 叉体小腔钢管 Small chamber
pipe of fork 1
5 10D0103 ZL40B.26.2.4 叉体大腔钢管 Big chamber
pipe of fork 1
6 02C0099 ZL50C.27.2.1 油缸钢管 Oil cylinder steel
pipe 2
7 10C0033 ZL50C.27.2.2 装卸叉油缸 Handling fork
cylinder 2
8 09C0014 ZL40.10.21 管夹 Pipe clamp 2
9 02C0100 ZL50C.27.2.3 油缸钢管 Oil cylinder steel
pipe 2
10 31C0013 ZL40B.23.2.11 活动铰接管接头
Movable
articulated pipe
joint
2
11 06C0052 ZL40B.23.2.10 动臂接叉体 5/8″软管
5/8″ hose
connecting
movable arm
with fork
1

12 09C0059 ZL50.27.2.3 动臂上管板 Upper pipe sheet
vable arm 2
13 06C0065 ZL40B.26.2.1 油缸 Φ19 软管 Φ19 hose of oil
cylinder
4
