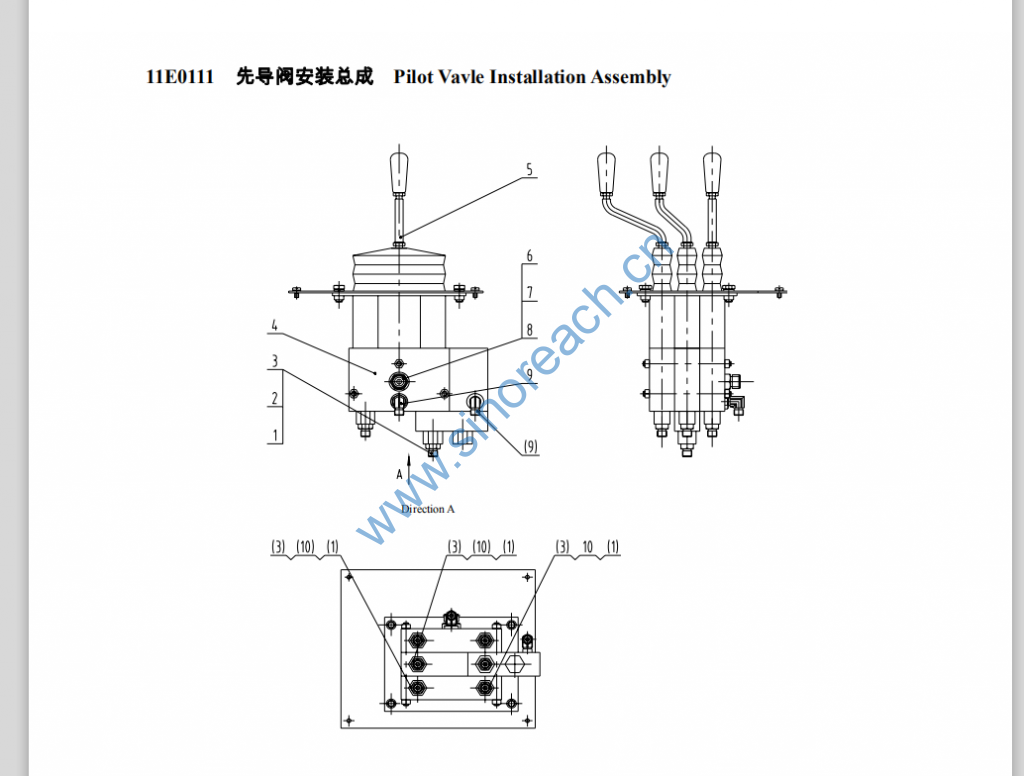

CLG842 11E0111 先导阀安装总成 Pilot Valve Installation Assembly

1 12B0351 GB1235-76 O 形密封圈 O-ring 16×2.4 6
2 00A0240 ZL50E.10.31-1 接头 Joint 1
3 12B0284 GB3452.1-92 O 形圈 O-ring 7.5×1.8 6
4 12C0099 先导阀 Pilot valve DJS3-XU/UU/XX 1
5 23C0035 操纵手柄总成
Control
handle
assembly
1
6 12B0291 GB1235-76 O 形密封圈 O-ring 22×2.4 1
7 00A0217 JT062220 管接头 Pipe joint 1
8 12B0370 GB3452.1-92 O 形圈 O-ring 15×1.8 1
Direction A
304
9 31C0031 ZL50E.10.23 直角接头 Elbow joint 2
10 00A0228 ZL50E.10.22-1 接头 Joint 5
