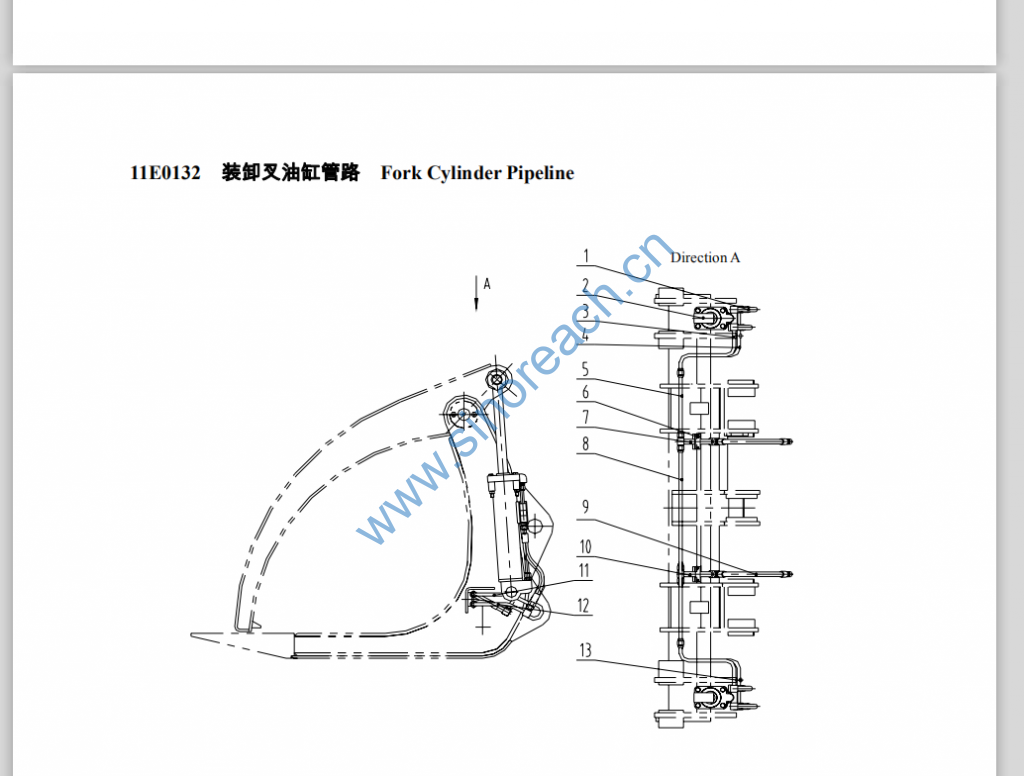

CLG842 11E0132 装卸叉油缸管路 Handling Fork Cylinder Pipeline

1 06C0051 ZL40B.23.2.6 接装卸叉油缸大小腔 1/2″软管
1/2″ hose connecting
handling fork with
small and big chamber
of cylinder
1
2 10C0014 ZL40B.23.2.5 装卸叉油缸 Handling fork cylinder 2
3 10D0069 ZL40B.23.2.3 叉体上通油缸大腔弯管〈二〉 Big chamber bend of
oil cylinder (2) on fork 1
4 10D0070 ZL40B.23.2.4 叉体上通油缸小腔弯管〈二〉 Small chamber bend of
oil cylinder (2) on fork 1
5 02C0040 ZL40B.23.2.8 叉体上通油缸大小腔钢管（一）
Big and small chamber
steel pipe of oil
cylinder on fork (1)
1
6 09C0059 ZL50.27.2.3 动臂上管板 Upper tube sheet on
movable arm 2
7 10D0076 ZL40B.23.2.9 叉体上三通接管（一） T-pipe on fork (1) 1
8 02C0046 ZL40B.23.2.12 叉体上通油缸大小腔钢管（二）
Big and small chamber
steel pipe of oil
cylinder on fork (2)
1
9 06C0052 ZL40B.23.2.10 动臂接叉体 5/8″软管 5/8″ hose connecting
movable arm with fork 1
10 10D0089 ZL40B.23.2.19 叉体上三通接管（二） T-pipe on fork (2) 1
11 10D0068 ZL40B.23.2.2 叉体上通油缸小腔弯管〈一〉 Small chamber bent of
oil cylinder (1) on fork 1
Direction A
313
12 10D0067 ZL40B.23.2.1 叉体上通油缸大腔弯管〈一〉 Big chamber bent of oil
cylinder (1) on fork 1
13 09C0004 ZL40B.23.2.7 叉体上管夹 Upper clamp
