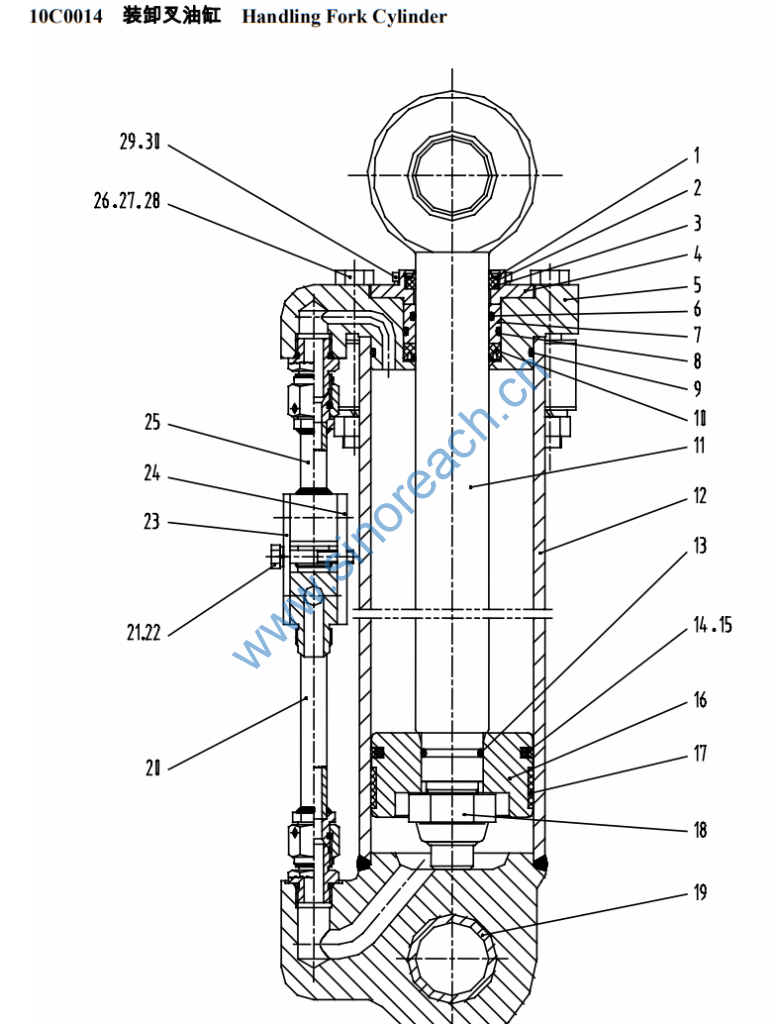

CLG842 10C0014 装卸叉油缸 Handling Fork Cylinder

1 76A0070 ZL50.9.2-13 弹性挡圈 Circlip 1
2 88A0206 ZL50.9.2-14 油封壳 Oil seal
housing 1
3 13B0165 ZL50.9.2-15 防尘圈 Dust ring 45×57×
10 1
4 53A0225 ZL50.9.2-10A 压盖 Gland Cap 1
5 53A0224 ZL50.9.2-9 缸盖 Cylinder head 1
6 12B0146 GB1235-76 O 形密封圈 O-ring 50×3.1 1
7 55A0463 ZL50.9.2-19 铜套 Copper
Sleeve 1
8 12B0336 GB1235-76 O 形密封圈 O-ring 60×3.1 1
9 12B0334 GB1235-76 O 形密封圈 O-ring 100×3.1 1
10 13B0166 ZL50.9.2-16 Y 形密封圈 Y-seal 45×60×
10 1
11 72A0064 ZL40B.23.2.5-1 活塞杆 Piston rod 1
12 13D0019 ZL40B.23.2.5.1 缸体 Cylinder body 1
13 12B0300 GB3452.1-82 O 形密封圈 O-ring 31.5×
3.55 1
14 12B0061 GB3452.1-82 O 形圈 O-ring 82.5×5.3 1
15 80A0004 ZL50C.9.2-12 摩擦环 Friction ring 1
16 49A0001 ZL50C.9.2A-11 活塞 Piston 1
17 80A0005 ZL50C.9.2A-13 支承环 Support ring 1
18 38C0008 CB083034-3 尼龙锁紧螺母 Nylon lock nut 1
19 55A0462 ZL50.9.2-11 轴套 Bearing bush 2
20 02C0045 ZL40B.23.2.5.3 装卸叉油缸大腔油管
Oil tube of
handling fork
cylinder big
chamber
1
21 06B0006 GB93-76 垫圈 Washer 8 1
22 00B0070 GB5783-86 螺栓 Bolt M8×45-8.8-
Zn.D 1
23 11A0078 ZL40B.23.2.5-3 夹板 Clamp plate 1
24 12A0049 ZL40B.23.2.5-2 螺纹夹板 Thread
blockboard 1
25 02C0036 ZL40B.23.2.5.2 装卸叉油缸小腔油管
Oil tube of
handling fork
cylinder big
chamber
1
26 01B0359 ZL50.9.2-7 螺栓 Bolt 4
27 03B0408 ZL50.9.2-8 螺母 Nut 4
28 06B0013 GB93-76 垫圈 Washer 14 4
29 00B0085 GB5783-86 螺栓 Bolt M8×25-8.8-
Zn.D 4
30 06B0006 GB93-76 垫圈 Washer 8 4
