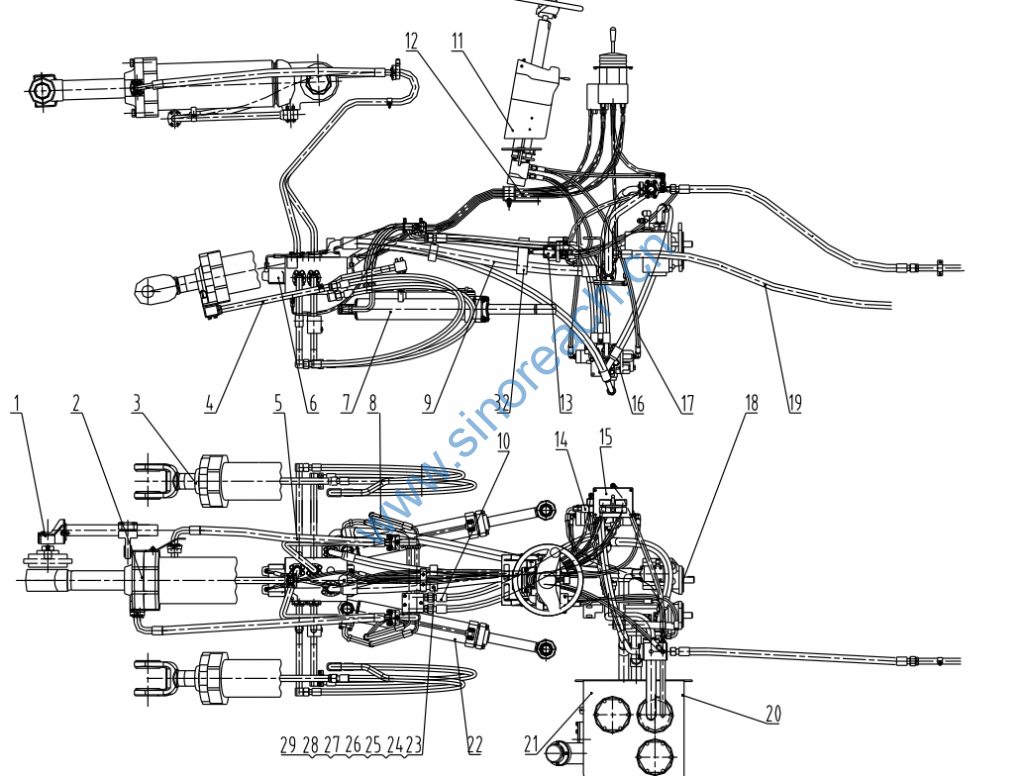

CLG862 10E0111 002 液压系统 HYDRAULIC SYSTEM

1 00C0215 002 自动复位系统 POSITIONER AND
KICKOUT SYSTEM 1 Z
2 10C0090 005 转斗油缸 TILTING CYLINDER 1 Z
3 10C0091 002 动臂油缸 BOOM CYLINDER 2 Z
4 00C0205 000 动臂缸管路 BOOM CYLINDER LINES 1 Z
5 00C0207 000 转斗缸管路 TILTING CYLINDER
LINES 1 Z
6 11E0048 001 分配阀安装总成 CONTROL VALVE
MOUNTING 1
7 10C0030 000 右转向油缸 STEERING
CYLINDER-RH 1 Z
8 00C0211 001 转向缸管路 STEERING CYLINDER
LINES 1 Z
9 00C0208 002 分配阀管路 CONTROL VALVE LINES 1
10 00C0633 003 流量放大阀管路 FLOW AMPLIFYING
VALVE LINES 1
11 44C0279 001 方向机安装总成 STEERING COLUMN
MOUNTING 1 Z
12 00C0714 001 先导控制管路 PILOT CONTROL LINES 1
13 44C0043 001 减压阀安装总成 PRESSURE REDUCING
VALVE AS 1 Z
14 12C0015 001 减压阀 PRESSURE REDUCING
VALVE 1 Z
15 12C0571 000 先导阀安装总成 PILOT VALVE
MOUNTING 1 Z
16 12C0122 001 流量放大阀安装总
成
FLOW AMPLIFYING
VALVE AS 1 Z
17 00C0210 002 转向控制管路 STEERING CONTROL
LINES 1 Z
18 44C0060 004 泵安装总成 PUMP MOUNTING 1 Z
19 00C0213 003 散热管路 COOLING LINES 1 Z
20 21C0053 002 液压油箱 HYDRAULIC OIL TANK 1 Z
22 10C0031 000 左转向油缸 STEERING
CYLINDER-LH 1 Z
24 21A1635 000 下管夹 CLAMP 1
25 00B0035 000 螺栓 BOLT 1
26 06B0008 000 垫圈 WASHER 1
27 03B0053 000 螺母 NUT 1
28 83A0299 000 橡胶圈 RUBBER RING 1
29 83A0070 000 橡胶圈 RUBBER RING 1
30 21A1633 001 上管夹 CLAMP 1
32 09C0148 000 管夹 CLAMP 1
