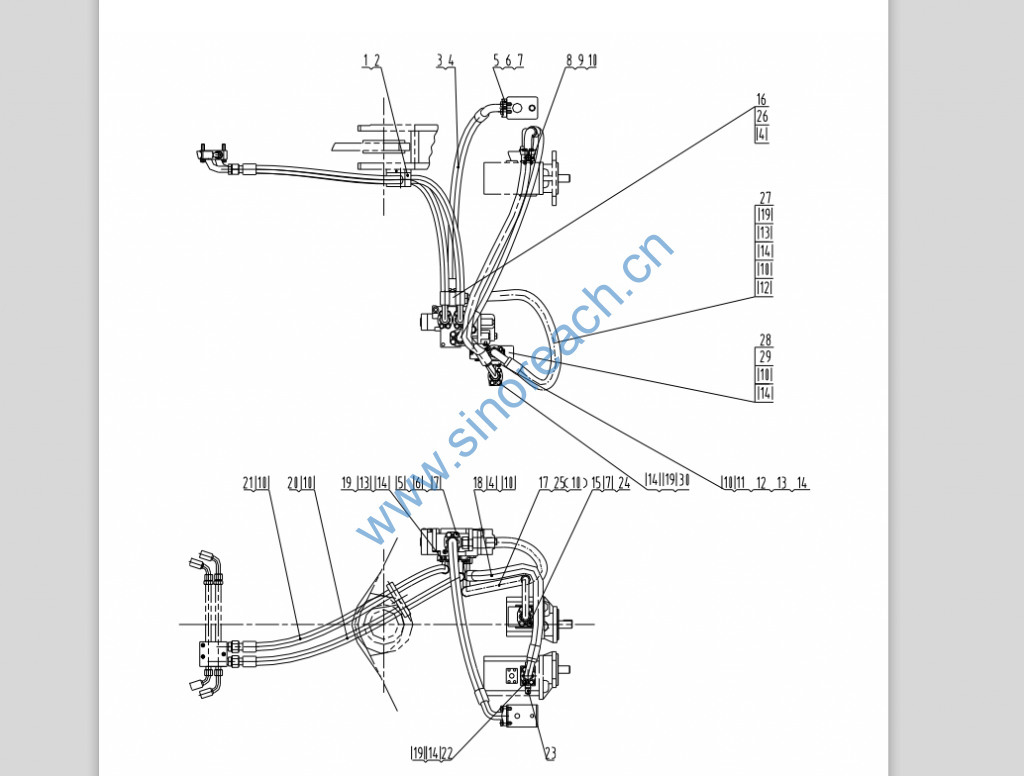

CLG862 00C0279 004 流量放大阀管路 FLOW AMPLIFYING VALVE LINES

1 24A0078 001 支承轨 SUPPORT RAIL 1
2 09C0092 000 管夹 CLAMP 2
3 07C0956 001 软管总成 HOSE AS 1
4 12B0287 000 O 形圈 O-RING 4
5 72A0010 001 压板 SPLIT FLANGE 3
6 00B0035 000 螺栓 BOLT 12
7 06B0008 000 垫圈 WASHER 20
8 15D0196 000 法兰 FLANGE 1
9 12B0285 000 O 形圈 O-RING 1
10 12B0251 000 O 形圈 O-RING 7
11 15D0406 002 管接头 CONNECTOR 1
12 12B0292 000 O 形圈 O-RING 2
13 00B0019 000 螺栓 BOLT 16
14 06B0002 000 垫圈 WASHER 28
15 01B0217 000 螺栓 BOLT 4
16 15D0407 001 管接头 CONNECTOR 1
17 07C0838 002 软管总成 HOSE AS 1
18 07C0288 001 软管总成 HOSE AS 1
19 72A0027 001 压板 PLATE 5
20 06C0535 001 软管总成 HOSE AS 1
21 06C0536 001 软管总成 HOSE AS 1
22 00B0064 000 螺栓 BOLT 4
23 44C0022 000 测压接头 JOINT 1
24 72A0003 000 压板 SPLIT FLANGE 1
25 12B0302 000 O 形圈 O-RING 1
26 01B0297 000 螺栓 BOLT 4
27 07C0954 001 软管总成 HOSE AS 1
28 12C0786 000 卸荷阀 VALVE 1
29 04B0119 000 螺钉 SCREW 4
30 00B0029 000 螺栓 BOLT 4
