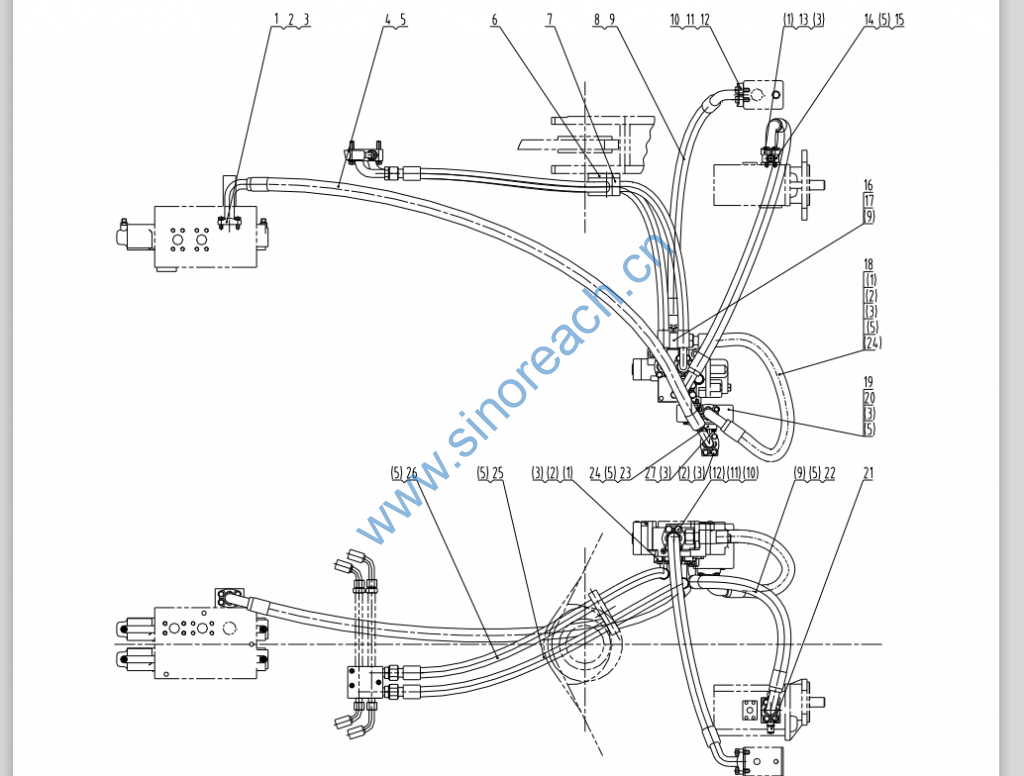

CLG862 00C0633 003 流量放大阀管路 FLOW AMPLIFYING VALVE LINES

1 72A0027 001 压板 PLATE 6
2 00B0019 000 螺栓 BOLT 16
3 06B0002 000 垫圈 WASHER 32
4 07C0286 001 软管总成 HOSE AS 1
5 12B0251 000 O 形圈 O-RING 8
6 24A0078 001 支承轨 SUPPORT RAIL 1
7 09C0092 000 管夹 CLAMP 2
8 07C0956 001 软管总成 HOSE AS 1
9 12B0287 000 O 形圈 O-RING 4
10 72A0010 001 压板 SPLIT FLANGE 1
11 00B0035 000 螺栓 BOLT 8
12 06B0008 000 垫圈 WASHER 12
13 00B0064 000 螺栓 BOLT 4
14 15D0196 000 法兰 FLANGE 1
15 12B0285 000 O 形圈 O-RING 1
16 15D0407 001 管接头 CONNECTOR 1
17 01B0297 000 螺栓 BOLT 4
18 07C0954 001 软管总成 HOSE AS 1
19 12C0786 000 卸荷阀 VALVE 1
20 04B0119 000 螺钉 SCREW 4
21 44C0022 000 测压接头 JOINT 1
22 07C1520 000 软管总成 HOSE 1
23 15D0406 002 管接头 CONNECTOR 1
24 12B0292 000 O 形圈 O-RING 2
25 06C2678 001 软管总成 HOSE AS 1
26 06C2679 001 软管总成 HOSE AS 1
27 00B0029 000 螺栓 BOLT 4
