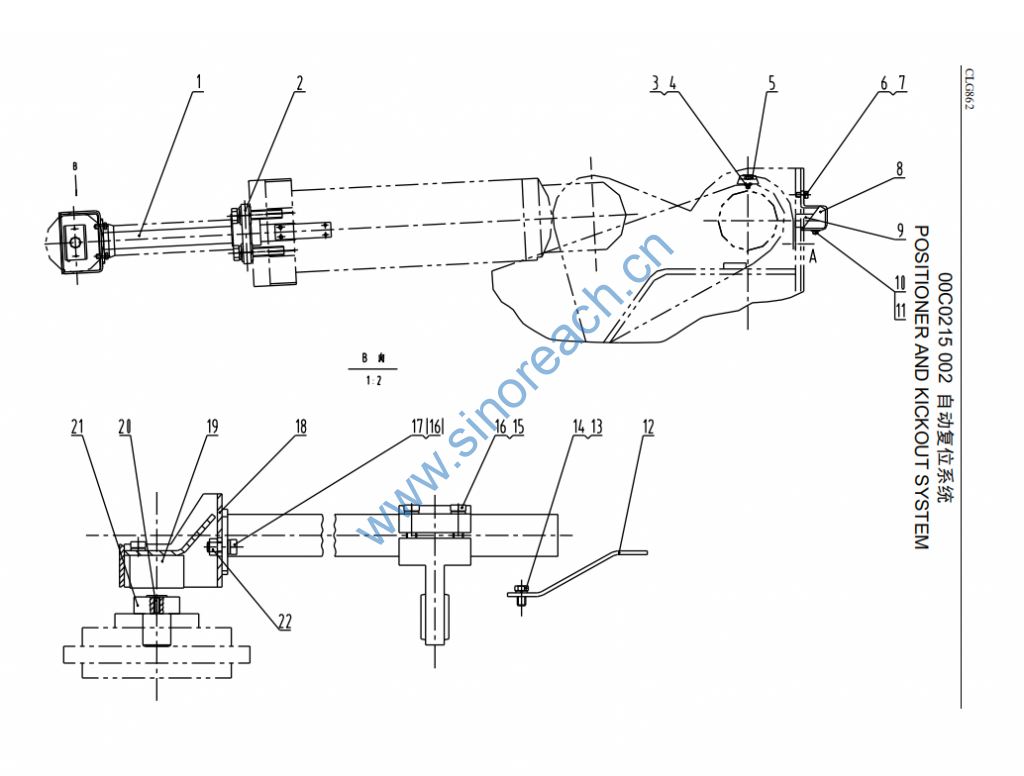

CLG862 00C0215 002 自动复位系统 POSITIONER AND KICKOUT SYSTEM

1 16D0028 001 连接杆 LINKAGE 1
2 53A0188 000 支板 SUPPORT 1
3 02B0021 001 螺栓 BOLT 2
4 03B0192 000 螺母组件 NUT AS 2
5 34C0023 000 动臂磁铁 BOOM
ELECTROMAGNET 1
6 00B0011 000 螺栓 BOLT 2
7 06B0007 000 垫圈 WASHER 2
8 02D0094 000 动臂行进开关座 SWITCH HOLDER 1
9 34B0141 000 动臂行进开关 KICKOUT SWITCH 1
10 06B0198 001 淬硬垫圈 HARD WASHER 4
11 01B0138 000 螺栓 BOLT 4
12 11A1133 000 弯板 PLATE 1
13 00B0075 000 螺栓 BOLT 2
14 06B0005 000 垫圈 WASHER 2
15 00B0029 000 螺栓 BOLT 2
16 06B0002 000 垫圈 WASHER 4
17 00B0341 000 螺栓 BOLT 2
18 00D0392 000 转斗行进开关座 HOLDER 1
19 34B0142 000 转斗行进开关 POSITIONING
SWITCH 1
20 04B0115 000 定位螺钉 SCREW 2
21 34C0026 000 转斗电磁铁 TILTING
ELECTROMAGNET 1
22 03B0053 000 螺母 NUT 2
