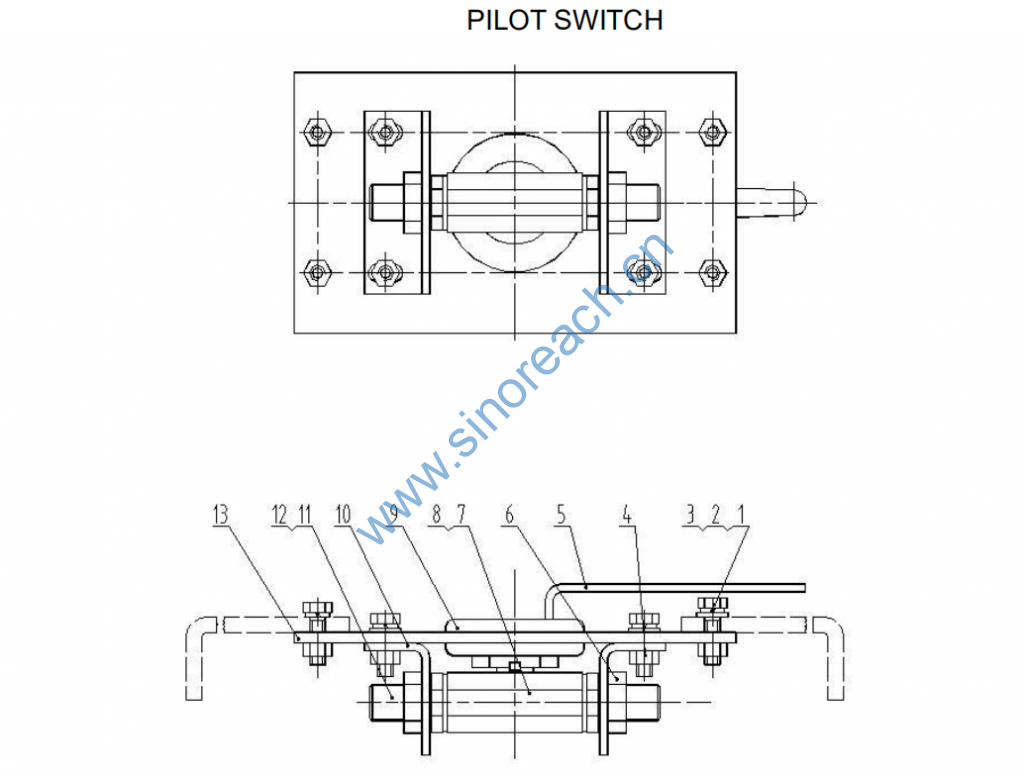

44C0071 002 先导切换开关 PILOT SWITCH

1 00B0010 000 螺栓 BOLT 8
2 06B0003 000 垫圈 WASHER 8
3 06B0024 000 垫圈 WASHER 8
4 03B0036 000 螺母 NUT 8
5 16D0454 000 操纵杆 CONTROL LEVER 1
6 03B0180 000 螺母 NUT 2
7 06B0117 000 垫圈 WASHER 2
8 12C0174 000 球阀 BALL VALVE 1
9 83A0136 000 护孔圈 GROMMET 1
10 21A1329 000 安装板 MOUNTING PLATE 2
11 00A0787 000 接头 CONNECTOR 2
12 12B0284 000 O 形圈 O-RING 2
13 11A0683 000 安装板 MOUNTING PLATE 1
