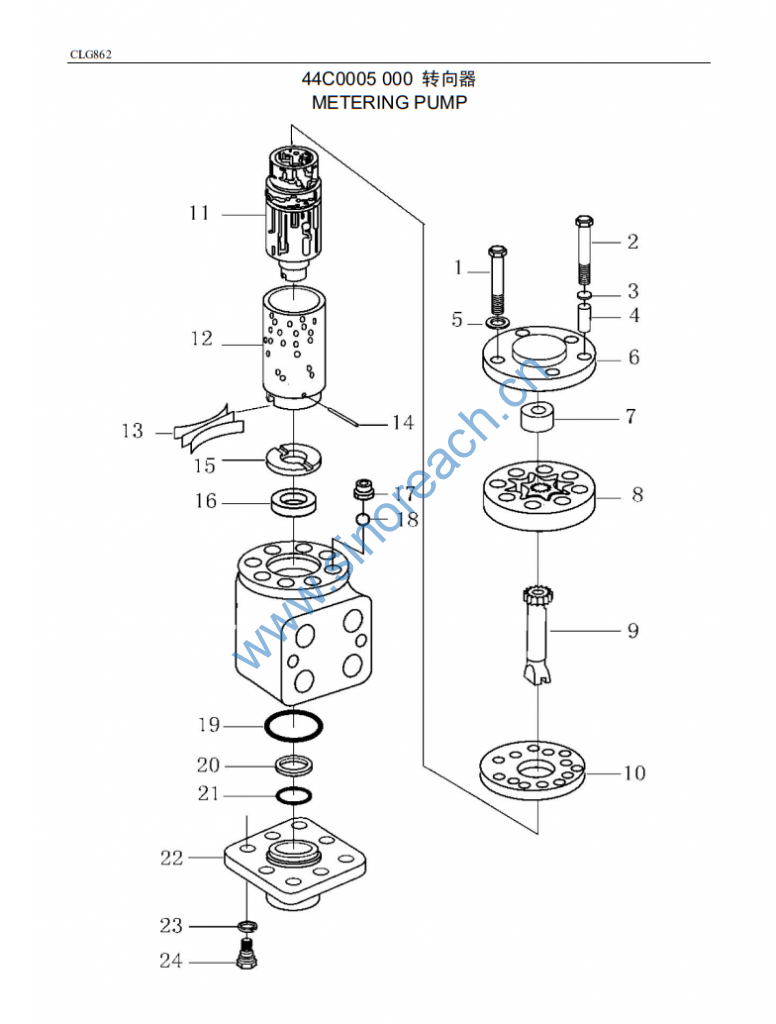

CLG862 44C0005 000 转向器 METERING PUMP

1 44C0005-1 螺栓 BOLT 7
2 44C0005-2 限位螺栓 BOLT 1
3 44C0005-3 铜垫圈 COPPER WASHER 1
4 44C0005-4 限位圈 LIMIT SLEEVE 1
5 44C0005-5 垫圈 WASHER 7
6 44C0005-6 后盖 COVER 1
7 44C0005-7 限位栓 LIMIT PLUG 1
8 44C0005-8 转子定子组 ROTOR/STATOR GP 1
9 44C0005-9 联动轴 SHAFT 1
10 44C0005-10 隔盘 BAFFLE 1
11 44C0005-11 阀芯 SPOOL 1
12 44C0005-12 阀套 SLEEVE
13 44C0005-13 弹簧片 SPRING PIECE 3
14 44C0005-14 拔销 PIN 1
15 44C0005-15 滑环 RING 1
16 44C0005-16 挡环 SNAP RING 1
17 44C0005-17 螺套 SLEEVE 1
18 44C0005-18 钢球 BALL 1
19 44C0005-19 O 形圈 O-RING 1
20 44C0005-20 X 形密封圈 X-SEAL 1
21 44C0005-21 O 形圈 O-RING 1
22 44C0005-22 前盖 FRONT COVER 1
23 44C0005-23 弹簧垫 SPRING WASHER 8
24 44C0005-24 螺塞 PLUG 8
