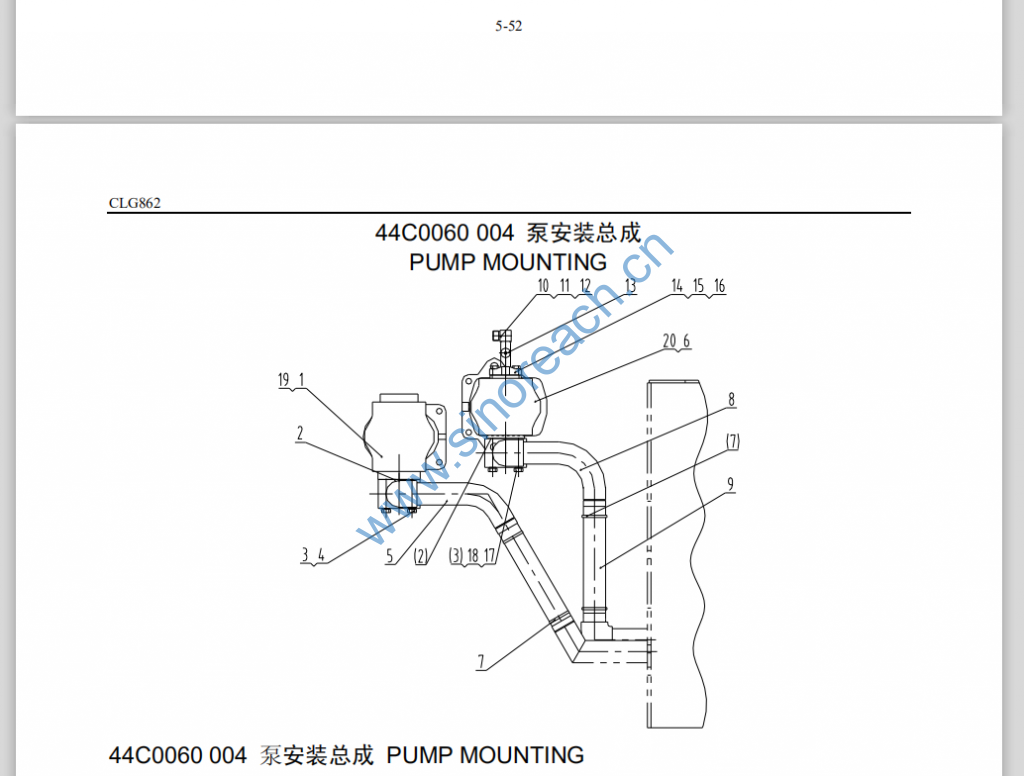

CLG862 44C0060 004 泵安装总成 PUMP MOUNTING

1 11C0318 000 齿轮泵 GEAR PUMP 1
2 12B0302 000 O 形圈 O-RING 2
3 06B0008 000 垫圈 WASHER 8
4 01B0103 000 螺栓 BOLT 4
5 10D1962 000 钢管总成 PIPE AS 1
6 11C0353 000 齿轮泵 GEAR PUMP 1
7 15B0017 000 双钢丝式环箍 CLAMP 4
8 10D1822 000 钢管总成 PIPE AS 1
9 34C0009 000 吸油软管 SUCTION HOSE 2
10 12B0370 000 O 形圈 O-RING 1
11 15D0384 000 接头 CONNECTOR 1
12 12B0114 000 O 形圈 O-RING 1
13 44C0022 000 测压接头 JOINT 1
14 00B0019 000 螺栓 BOLT 4
15 06B0002 000 垫圈 WASHER 4
16 72A0189 001 压板 PLATE 1
17 00B0017 000 螺栓 BOLT 4
18 72A0003 000 压板 SPLIT FLANGE 1
19 82A0092 000 密封垫 GASKET 1
20 82A0059 001 密封垫片 GASKET 1
