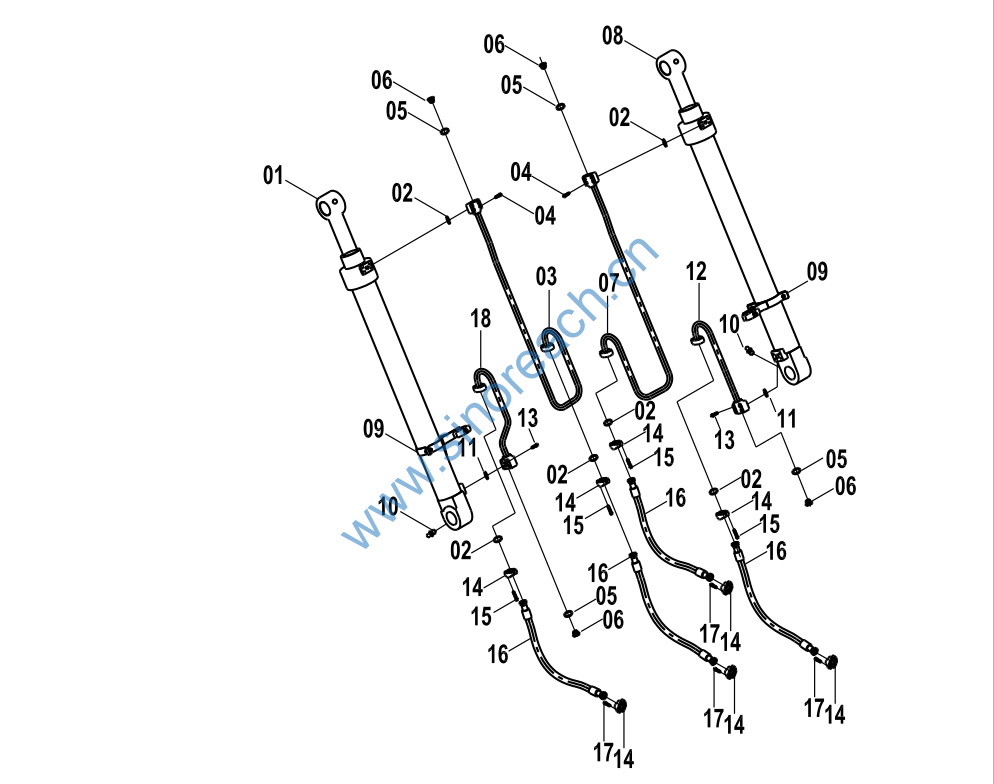

CLG922D 11E0486(C) 动臂油缸管路总成 BOOM CYLINDER LINES AS

01 10C0260 001 动臂油缸（左） BOOM CYLINDER
AS-LH
1 Z
02 12B0444 001 O 形圈 O-RING 4
03 02C0710 000 钢管总成 TUBE AS 1
04 04B0418 000 螺钉 SCREW 4
05 12B0431 001 O 形圈 O-RING 4
06 05A0078 001 螺塞 PLUG 4
07 02C0712 000 钢管总成 TUBE AS 1
08 10C0261 001 动臂油缸（右） BOOM CYLINDER
AS-RH
1 Z
09 09C0493 000 管夹 CLAMP 1
10 10B0014 000 油杯 GREASE FITTING 1
11 12B0445 002 O 形圈 O-RING 1
12 02C0713 000 钢管总成 TUBE AS 1
13 04B0429 000 螺钉 SCREW 4
14 04A0252 000 法兰压板 SPLIT FLANGE 17
15 04B0670 000 螺钉 SCREW 44
16 06C4885 000 软管总成 HOSE AS 4
17 04B0415 000 螺钉 SCREW 20
18 02C0711 000 钢管总成 TUBE AS 1
