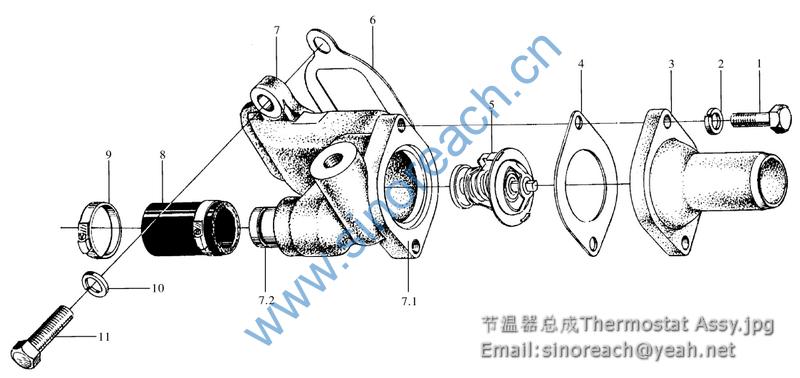

YTO-YTR4105G69-1 DIESEL ENGINE 节温器总成Thermostat assy W018101691 YTR4105.530000

1 螺栓M8×25-Zn.D Bolt GB/T5783-2000 2
2 垫圈8 Washer GB/T93-1987 2
3 节温器盖 Thermostat cap W018101701 RD.530001 1
4 节温器垫片Gasket, thermostat W018101711 YTR2105.530002 1
5 蜡式调温器Thermostat W018101721 1033-65-X 1
6 节温器体垫片Gasket, thermostat bady W018101731 4R.530004-1 1
7 节温器壳体部件Thermostat housing W018101741 YTR4105.530100 1
7.1 节温器壳体 Themostat body W018103051 YTR4105.530101 1
7.2 旁通接头Bypass connector W018103061 R510102 1
8 软管 Hose W018101982 4R.530003-51 1
9 钢带卡箍 Hoop W018103071 JK1(25~38mm) 2
10 垫圈10 Washer GB/T93-1987 2
11 螺栓M10×25-Zn.D Bolt GB/T5783-2000 2
