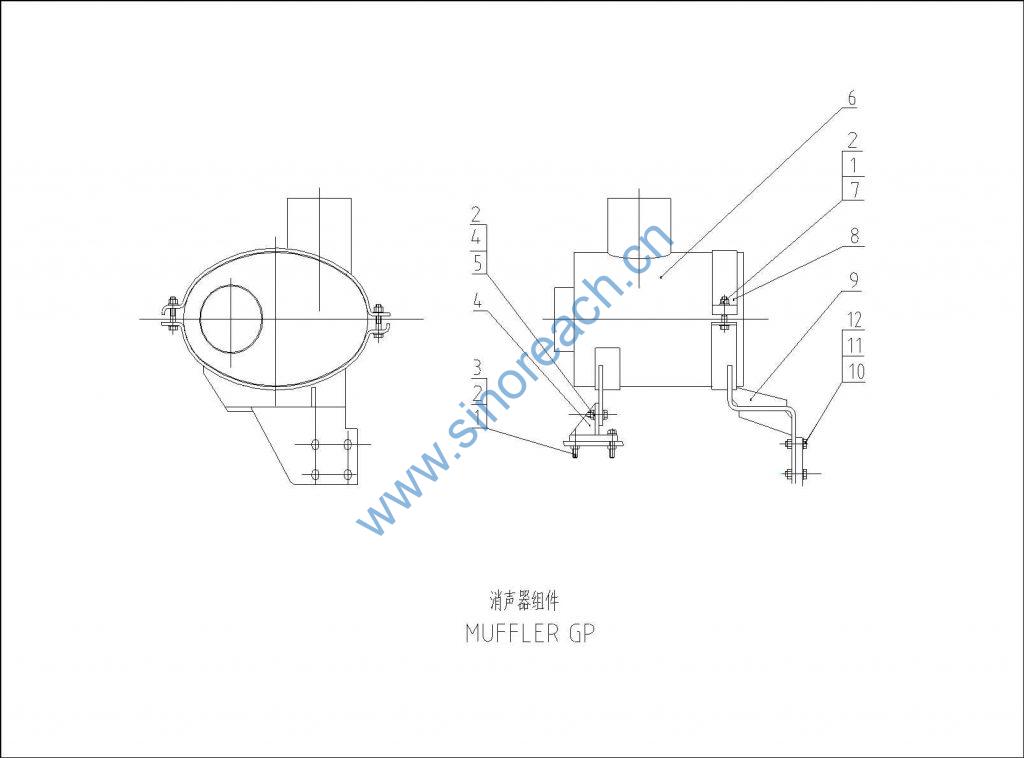

消声器组件 MUFFLER GP C08AZ-08AZ020+E

1 GB/T5783-M1045-ZN.D:六角头螺栓 BOLT B00000521 2 GB/T6170-M10-ZN.D:螺母 NUT B00000769 3 GB/T97.1-10-200HV-ZN.D:平垫圈 WASHER B00001276 4 支架焊接部件 SUPPORT AS. C08AB-M08AB009A+B 5 GB/T5782-M1035-ZN.D:六角头螺栓 BOLT B00000515
6 消声器焊接部件 MUFFLER ASSY (WELDED) C08AB-08AB028+A
7 GB/T5782-M1060-ZN.D:六角头螺栓 BOLT B00000403 8 消声器固定箍 FIXING CLAMP, MUFFLER C08AL-M7N2450+A 9 前支架焊接部件 ENGINE SUPPORT ASSY (WELDED), FRONT C08AB-08AB022+A 10 GB/T6170-M12-10-ZN.D:螺母 NUT B00000771 11 GB/T97.1-12-200HV-ZN.D:平垫圈 WASHER B00001279 12 GB/T5782-M1245-10.9-ZN.D:六角头螺栓 BOLT B00000428
