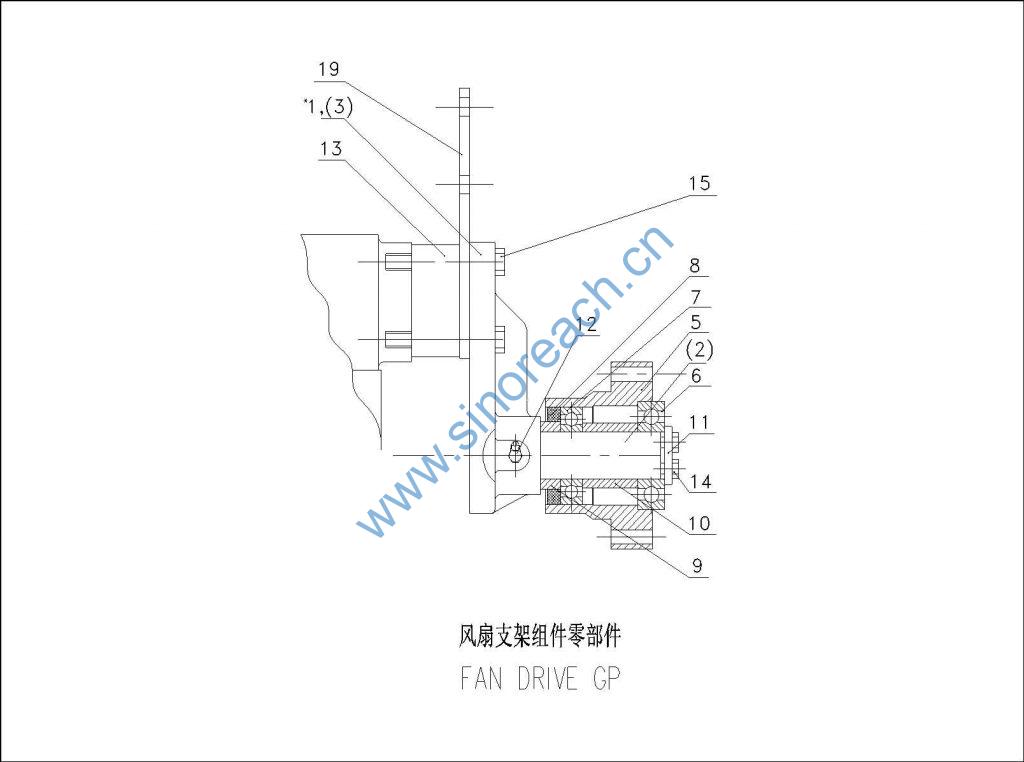

风扇支架组件 DRIVE GP-FAN C16AZ-16AZ001+A

1 风扇支架加工部件 FAN SHAFT BRACKET AS. C16AB-16AB001+A (2) 风扇轴 SHAFT-FAN C16AL-1P9946+A (3) 风扇轴支架 BRACKER-FAN C16AL-16AL003+A (4) GB/T119-B1018:圆柱销 CYLINDRICAL PIN B00000132
5 风扇法兰 HUB-FAN PULLEY C16AL-M1W4407+A
6 GB/T276-6307:深沟球轴承 BALL BEARING B00000241
7 GB/T276-6207:深沟球轴承 BALL BEARING B00000216
8 HG4-692-SG507212:骨架式橡胶油封 RUBBER OIL SEAL B00001456
9 隔圈 SPACER C16AL-16AL002+A
10 隔圈 SPACER C16AL-8N5305+A
11 压紧垫圈 WASHER-RETAINING C16AL-5S7264+A
12 GB/T1152-M10*1:直通式压注油环 OIL WREATH B00000064
13 调节垫块 SPACER C16AL-16AL004+A
14 六角头螺栓 BOLT U311A-1A1460+A
15 六角头螺栓 BOLT U311A-6V4626+A
