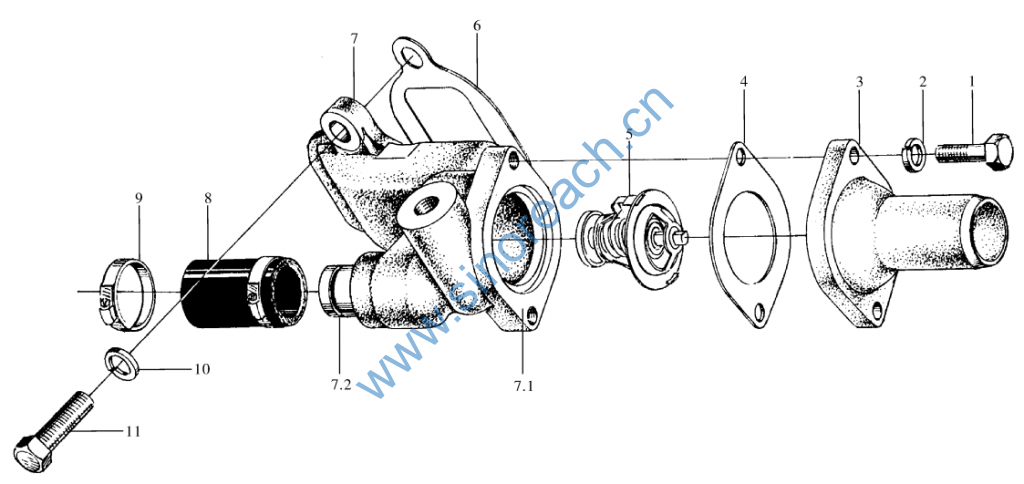

YTR4105D51.530000 SP109150 Thermostat assy YTO

YTR4105D51.530000 SP109150 节温器总成 Thermostat assy

1 GB/T5783-2000 螺栓M8×25-Zn.D Bolt M8×25

2 GB/T93-1987 垫圈8 Washer8

3 RD.530001 SP119845 SP119845 节温器盖 Cap, thermostat

4 4R.530002 SP111744 节温器垫片 Gasket, thermostat

5 1033-82-X SP115129 总成是SP109150 蜡式调温器 Thermostat

6 4R.530004-1 SP114963 节温器体垫片 Gasket, thermostat body

7 YTR4105.530100 SP119849 SP119849 节温器壳体部件 Thermostat housing

7.1 YTR4105.530101 节温器壳体 Thermostat body

7.2 R510102 SP113884 旁通接头 Bypass connector

8 4R.530003 SP113799 软管 Hose

9 JK1 SP113821 胶管卡箍 Hoop, rubber hose

10 GB/T93-1987 垫圈10 Washer10

11 GB/T5783-2000 螺栓M10×25-Zn.D Bolt M10×25
