0634306523 O-RING for ZF Transmission Gearbox spare part

Category: Tag:

Description

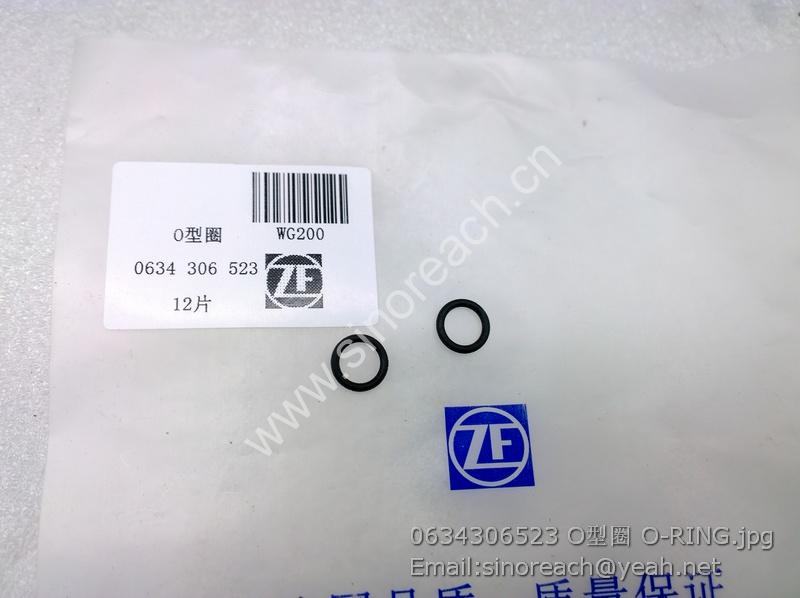

0634306523 O-RING for ZF Transmission Gearbox spare part

ZF.4646356002 SP112177 齿轮 1 GEAR Z=60 LI ZF7B 4,580 P
ZF.0730361165 SP107819 C齿轮室罩盖螺盖 1 COVER IN 0730 361 190 F270 0,230 P
ZF.4656354015 SP108040 盖板 1 COVER PLATE K00086/03 IN 4656 354 007 F270 0,800 P
ZF.0634304616 SP107522 CO形圈 1 O-RING K00086/03 130 X 3 NBR -90-10 0,005 P
ZF.0636016033 SP107561 六角螺栓 2 HEXAGON SCREW K00086/03 M 16 X 20 8.8 0,060 P

ZF.4646306071 SP107981 衬垫 1 GASKET 11950 P
ZF.4646306072 SP107982 调整板 1 ADAPTER PLATE ZF103
ZF.4646306073 SP107983 衬垫 1 GASKET 11950 P
ZF.0636102173 SP100114 内螺栓 3 CAP SCREW 0,015 P
ZF.0630003006 SP100025 垫圈 3 WASHER 8 200HV 0,001 P
ZF.4644306365 SP100441 油路板 1 DUCT PLATE GD-ALSI9CU3 1,780 P
ZF.0636102065 SP107569 帽螺钉 11 CAP SCREW M 8 X 60 10.9 AUSG P
ZF.0630003006 SP100025 垫圈 11 WASHER 8 200HV 0,001 P
ZF.4644306497 SP100451 密封垫 1 GASKET 11950 0,010 P
ZF.4644306503 SP107959 盖板 1 COVER PLATE 0,475 P
ZF.4644306370 SP100442 密封垫 1 GASKET ARMSTRONG 9004 D 0,017 P
ZF.0736101207 SP107840 内六角螺栓 5 CAP SCREW M8X90 IN 0736 101 200 10.9 0,035 P
ZF.0630003006 SP100025 垫圈 5 WASHER 8 200HV 0,001 P
ZF.0736101203 SP100231 内螺栓 11 CAP SCREW M8X35 IN 0736 101 200 10.9 0,017 P
ZF.0630003006 SP100025 垫圈 11 WASHER 8 200HV 0,001 P
ZF.0736101204 SP100232 内螺栓 1 CAP SCREW M8X60 IN 0736 101 200 10.9 0,027 P
ZF.0630003006 SP100025 垫圈 1 WASHER 8 200HV 0,001 P
SCREW PLUG
ZF.0636302031 SP106526 螺塞 1 SCREW PLUG WW 0,006 P
ZF.0634303280 SP100060 O形圈 1 O-RING 8 X 1,5 ZFN 744 NBR-70-10 WW 0,100 P
SCREW PLUG
ZF.0636302053 SP107574 螺旋塞 1 SCREW PLUG M 10X1 ST A3C WW 0,100 P
ZF.0634303280 SP100060 O形圈 1 O-RING 8 X 1,5 ZFN 744 NBR-70-10 WW 0,100 P

ZF.4644306558 SP100454 阀块 1 VALVE BLOCK K00421/93 IN 4644 306 559 GD-ALSI9CU3 2,000 P
1 VSCREW-IN
ZF.4644306566 SP106666 管接头 1 SCREW-IN SLEEVE F500 WW 0,030 P
ZF.0634306524 SP100074 O形圈 1 O-RING 15 X 2 ZFN 744 NBR-70-10 WW 0,020 P
ZF.0732042314 SP100208 弹簧 1 COMPR.SPRING SCHALTDRUCKVENTIL 50 0,042 P
ZF.4644306597 SP100456 阀杆 1 PISTON K00363/00 ALMGSI1F31 0,050 P
ZF.0630004037 SP100026 调整垫圈 2 SHIM RING 10X 16 X1 0,001 P
1 ORIFICE
ZF.4644306401 SP105878 节流堵头 1 ORIFICE A=0,6 IN 4644 306 400 5.8 WW 0,008 P
ZF.4644306402 SP105371 截流堵头 1 ORIFICE A=0,7 IN 4644 306 400 5.8 WW 0,008 P
ZF.4644306403 SP105872 节流堵头 1 ORIFICE A=0,8 IN 4644 306 400 5.8 WW 0,008 P
ZF.4644306521 SP105874 节流堵头 1 ORIFICE A=0,65 IN 4644 306 400 5.8 WW 0,005 P
ZF.4644306522 SP105875 节流堵头 1 ORIFICE A=0,75 IN 4644 306 400 5.8 WW 0,005 P
ZF.4644306404 SP105873 节流堵头 1 ORIFICE A=0,85 IN 4644 306 400 5.8 WW 0,005 P
ZF.4644306531 SP105876 节流堵头 1 ORIFICE A=0,90 IN 4644 306 400 5.8 WW 0,010 P
ZF.4644306554 SP105877 节流堵头 1 ORIFICE K00131/93 A=0,95 IN 4644 306 400 5.8 MWW 0,010 P
ZF.0634303280 SP100060 O形圈 1 O-RING 8 X 1,5 ZFN 744 NBR-70-10 0,100 P
ZF.0634306170 SP100067 O形圈 1 O-RING 6 X 1,5 NBR -70-10 0,001 P
ZF.4644306376 SP100443 活塞 1 PISTON REGELKOLBEN ALMGSI 0,020 P
ZF.0732042315 SP100209 压缩弹簧 1 COMPR.SPRING DRUCKSTEUERVENTIL 50C 0,040 P
ZF.0732042316 SP100210 压缩弹簧 1 COMPR.SPRING DRUCKSTEUERVENTIL 50C 0,050 P
ZF.4644306377 SP100444 活塞 1 PISTON IN 4644 306 457 ALMGSI1 F31 0,020 P
ZF.4644306509 SP100453 活塞 1 PISTON UMSTEUERVENTIL ALM 0,010 P
ZF.0732042317 SP100211 压缩弹簧 1 COMPR.SPRING UMSTEUERVENTIL DR-STEUE 0,020 P
