Description

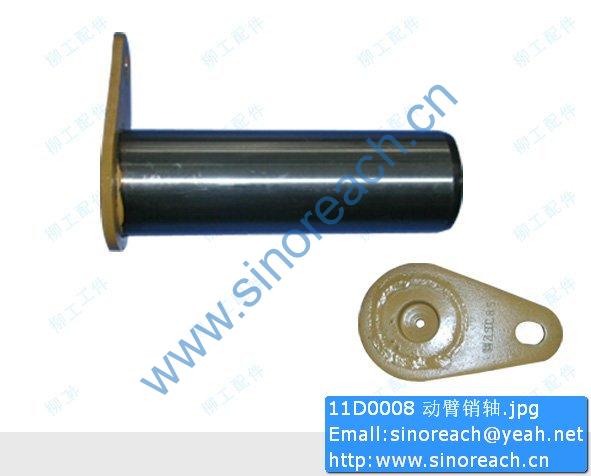

11D0008 Boom pin for LIUGONG part

00E0766X2 Fuel tank assembly; ASSY
00E0766X2 06B0177 Washer; 45
00E0766X2 03B0193 Nut; GB889-86; M16-8-Zn.D; STL
00E0766X2 00E0766X3 fuel tank assembly; ASSY
00E0766X2 00B0209 Bolt; GB5782-86; M16×65-10.9-Zn.D; STL
00E0802X0 Diesel engine gearbox assembly; ASSY
00E0802X0 26Y0059 Connecting sleeve assembly; ASSY
26Y0059 00B0524 Bolt; GB5783-86; M10×40-10.9-Zn.D; STL
26Y0059 91A1266 Backing plate; Q235
26Y0059 72A2267 Transition set; HT250
26Y0059 82A1999 Liner; NY150
26Y0059 06B0006 Washer; GB93-87; 8; 65Mn
26Y0059 00B0007 bolt; GB5783-86; M8×16-8.8-Zn.D; STL
26Y0059 00B0237 Bolt; GB5783-86; M10×35-10.9-Zn.D; STL
26Y0059 06B0002 Washer; GB93-87; 10; 65Mn
26Y0059 90A0930 elastic plate; 65Mn
26Y0059 72A2268 flange; 45
26Y0059 00B0331 Bolt; GB5783-86; M10×30-10.9-Zn.D; STL
26Y0059 06B0008 Washer; GB93-87; 12; 65Mn
26Y0059 00B0238 Bolt; GB5783-86; M12×30-10.9-Zn.D; STL
26Y0059 70A0979 connection sleeve; HT200
26Y0059 02B0604 bolt; 35CrMo
00E0802X0 46C8131 warm air inlet valve; ASSY
00E0802X0 46C6409 Compressor bracket assembly; ASSY
46C6409 00B0085 bolt; GB5783-86; M8×25-8.8-Zn.D; STL
46C6409 06B0024 Washer; GB97.1-85; 6-140HV-Zn.D; STL
46C6409 71A1240 Air conditioning compressor bracket; ZG270-500
46C6409 00B0022 Bolt; GB5783-86; M6×16-8.8-Zn.D; STL
46C6409 19A6276 Bent plate; Q235
46C6409 00B0019 bolt; GB5783-86; M10×30-8.8-Zn.D; STL
46C6409 00B0002 bolt; GB5783-86; M10×35-8.8-Zn.D; STL
46C6409 22A6981 Bent plate; Q235
46C6409 06B0003 Washer; GB93-87; 6; 65Mn
46C6409 06B0001 Washer; GB97.1-85; 10-140HV-Zn.D; STL
46C6409 00B0199 bolt; GB5782-86; M8×80-8.8-Zn.D; STL
46C6409 06B0005 Washer; GB97.1-85; 8-140HV-Zn.D; STL
46C6409 06B0006 Washer; GB93-87; 8; 65Mn
46C6409 46C0754 Tensioner assembly; assembly parts
46C6409 06B0002 Washer; GB93-87; 10; 65Mn
00E0802X0 44C1017X2 pump assembly; ASSY
44C1017X2 10D6598 steel pipe assembly; WELD
44C1017X2 11C0318 gear pump; assembly parts
44C1017X2 12B0303 O-ring; ISO 3601-1.2002; 56×3.55; NBR-90
44C1017X2 10D6599 Steel pipe assembly; WELD
44C1017X2 06B0008 Washer; GB93-87; 12; 65Mn
44C1017X2 00B0035 bolt; GB5783-86; M12×35-8.8-Zn.D; STL
44C1017X2 11C0317 Double gear pump; assembly parts
00E0802X0 05E0229X2 double variable system; ASSY
05E0229X2 42C0435XB Torque converter-gearbox assembly
42C0435XB 42C0435 Torque converter-gearbox assembly; ASSY
05E0229X2 03B0111 Nut; GB6170-86; M14-8-Zn.D; STL
05E0229X2 05B0053 Stud bolt; L=54; 40Cr
05E0229X2 30C0095 connector; assembly parts
05E0229X2 31C0501 Right angle connector; M45×2; ASSY
05E0229X2 03B0003 Nut; GB6170-86; M12-8-Zn.D; STL
05E0229X2 06B0008 Washer; GB93-87; 12; 65Mn
05E0229X2 02B0046 Stud bolt; 40Cr
05E0229X2 12V0509 O-ring; 38.5×3; YI9424
05E0229X2 30C0878 connector; ASSY
05E0229X2 31C1295 Adjustable connector; ASSY
05E0229X2 00B0234 bolt; GB5783-86; M20×50-10.9-Zn.D; STL
05E0229X2 06B0019 Washer; GB93-87; 20; 65Mn
05E0229X2 02D2485 bearing; WELD
05E0229X2 06B0013 Washer; GB93-87; 14; 65Mn
05E0229X2 32C0385 connector; ASSY
00E0802X0 00A1580 transition joint; 35
00E0802X0 01B0987 Bolt; 35CrMo
00E0802X0 15A2941 Support plate; Q235
00E0802X0 40C2418 diesel engine; ASSY
40C2418 SP127636 generator
40C2418 SP100569 starting motor
40C2418 SP124962 water pump
40C2418 SP124959 belt
40C2418 SP127791 injector
40C2418 SP124961 fuel pump
40C2418 SP124964 turbocharger
40C2418 SP125663 flameout solenoid valve
40C2418 SP106455 oil pump
40C2418 SP114190 Oil Cooler
40C2418 SP106451 upper repair kit
40C2418 SP112210 lower repair kit
40C2418 SP112261 Air Filter
00E0802X0 40C2663 fan; ASSY
00E0802X0 30B0226 Water temperature sensor; assembly parts
00E0802X0 30B0225 Torque converter oil temperature sensor; assembly parts
00E0802X0 46C0752 compressor; assembly parts
00E0802X0 84A0098 Air-conditioning triangle belt; cloth rubber
00E0802X0 46C0487 warm air inlet valve; fittings
00E0802X0 40C2440X2 intake and exhaust system; ASSY
40C2440X2 06B0012 Washer; GB97.1-85; 16-140HV-Zn.D; STL
40C2440X2 03B0290 Nut; GB6170-86; M12-10-Zn.D; STL
40C2440X2 06B0059 Washer; GB96-85; 12-140HV-Zn.D; STL
40C2440X2 00D6790 Silencer bracket; WELD
40C2440X2 00B0029 bolt; GB5783-86; M10×40-8.8-Zn.D; STL
40C2440X2 00D6792 bracket; WELD
40C2440X2 06B0002 Washer; GB93-87; 10; 65Mn
40C2440X2 06B0015 Washer; GB93-87; 16; 65Mn
40C2440X2 06B0008 Washer; GB93-87; 12; 65Mn
40C2440X2 00B0429 bolt GB5783-86; M12×40-10.9-DK
40C2440X2 06B0001 Washer; GB97.1-85; 10-140HV-Zn.D; STL
