Description

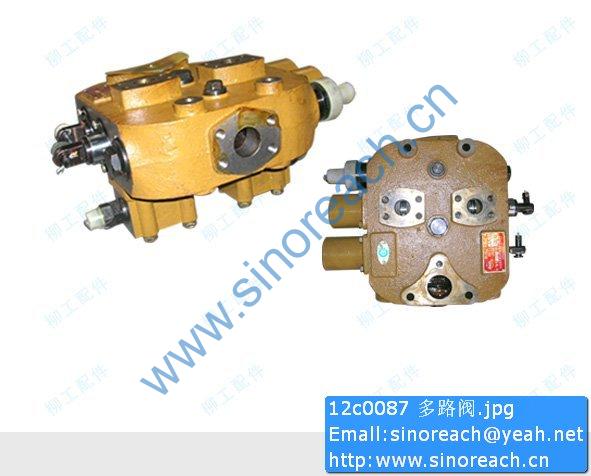

12c0087 Multi-way valve for LIUGONG PART

34C0734 Limit block assembly; assembly
18A1333 Limit block; Q345
33D0075 upper hinge; welded parts
33D0074 Lower hinge; welded parts
00B0005 Bolt; GB5783-86; M10×20-8.8-Zn.D; STL
27C0447 Right battery box assembly; ASSY
27C0446 Left battery box assembly; ASSY
18A3191 additional counterweight; Q235
12A0661 Spacer; Q235
11D0113 steering pin; welded parts
06B0030 Washer; GB96-85; 10-140HV-Zn.D; STL
06B0015 Washer; GB93-87; 16; 65Mn
06B0008 Washer; GB93-87; 12; 65Mn
06B0007 Washer; GB97.1-85; 12-140HV-Zn.D; STL
06B0001 Washer; GB97.1-85; 10-140HV-Zn.D; STL
88A0363 screw; Q235
32E0042X1 Bucket System
11D0097X0 Bucket lower pin; welded parts
10B0014 oil cup; GB1152-89; M10×1; ASSY
11D0097 Bucket lower pin; welded parts
22D0055X0 Bucket 4.5 square; bucket teeth
72A0241 Gear sleeve
72A0240 tooth body
72A0239 Right tooth body
72A0238 left tooth body
08B0091 pin
07B0057 Retaining ring
03B0394 American nut 5P8362
02B0066 American Bolt 5P8361
02B0065 American Bolt 5P8823
18A0304 main cutting board; 1E0921
11D0098X0 Bucket upper pin; welded parts
10B0014 oil cup; GB1152-89; M10×1; ASSY
11D0098 Bucket upper pin; welded parts
34C0676 Gasket assembly; assembly
57A0596 Gasket; 65Mn
57A0597 Gasket; 65Mn
57A0595 Gasket; 65Mn
06B0087 Washer; GB96-85; 16-140HV-Zn.D; STL
06B0015 Washer; GB93-87; 16; 65Mn
00B0323 Bolt; GB5783-86; M16×25-8.8-Zn.D; STL
32E0044 Working device limit system (ZL80G); assembly parts
18A0005 limit block; Q235
14A0408 Limit block; 12; 14
32E1047 automatic reset system; ASSY
22A5399 Bent plate; Q235
00B0012 Bolt; GB5783-86; M10×25-8.8-Zn.D; STL
06B0001 Washer; GB97.1-85; 10-140HV-Zn.D; STL
00D5818 bracket; WELD
00D5817 bracket; WELD
00D5815 bracket; WELD
00D5381 Mounting board; WELD
00B0075 Bolt; GB5783-86; M8×20-8.8-Zn.D; STL
06B0002 Washer; GB93-87; 10; 65Mn
06B0008 Washer; GB93-87; 12; 65Mn
06B0007 Washer; GB97.1-85; 12-140HV-Zn.D; STL
06B0006 Washer; GB93-87; 8; 65Mn
06B0005 Washer; GB97.1-85; 8-140HV-Zn.D; STL
00B0011 Bolt; GB5783-86; M12×25-8.8-Zn.D; STL
32E1313X1 working device; for centralized lubrication; ASSY
06B0015 Washer; GB93-87; 16; 65Mn
21D0051X9 Rocker arm; centralized lubrication; press fit
55A0165 Bottom sleeve; 45
35C0004 Sealing ring 110×130×8; 110×130×8; glued parts
21D0905X0 Boom; for centralized lubrication; WELD
16D0074X1 tie rod; with steel sleeve; welded parts
11D0096X0 Rocker pin; welded parts
10B0014 oil cup; GB1152-89; M10×1; ASSY
11D0096 Rocker pin; welded parts
11D0060X0 pin
10B0014 oil cup; GB1152-89; M10×1; ASSY
11D0060 pin
06B0087 Washer; GB96-85; 16-140HV-Zn.D; STL
21D0055X9 Rocker arm; centralized lubrication; press fit
55A0165 Bottom sleeve; 45
35C0004 Sealing ring 110×130×8; 110×130×8; glued parts
57A0072 Gasket; 1 2 3; 65Mn
55A0411 Boom cylinder liner; 20CrMnTiA
55A0410 Bucket bushing; 20CrMnTi
35C0004 Sealing ring 110×130×8; 110×130×8; glued parts
35C0003 Seal ring; glued parts
00B0323 Bolt; GB5783-86; M16×25-8.8-Zn.D; STL
32E1566 Adjusting gasket system; ASSY
34C1852 Adjusting pad assembly; Q195
57A1288 Adjusting pad; Q195
34C1243 Adjusting gasket; AGGL
57A0929 Gasket; Q235
34C1851 Adjusting pad assembly; AGGL
57A1285 Adjusting pad; Q195
41B0004 Anti-wear hydraulic oil; HM-46
41B0029Y18L Mobil Delvac 1300; 15W-40
41E0304X1 hoarding assembly; ASSY
06B0006 Washer; GB93-87; 8; 65Mn
06B0005 Washer; GB97.1-85; 8-140HV-Zn.D; STL
41E0304 hoarding assembly; ASSY
85A3509 sound-absorbing board; SPONGE
85A3510 Acoustic board; SPONGE
85A3511 sound-absorbing board; SPONGE
23D1508 left wall panel; WELD
23D1509 Right side panel; WELD
23D1235 left wall panel; WELD
23D1236 Right side panel; WELD
