Description

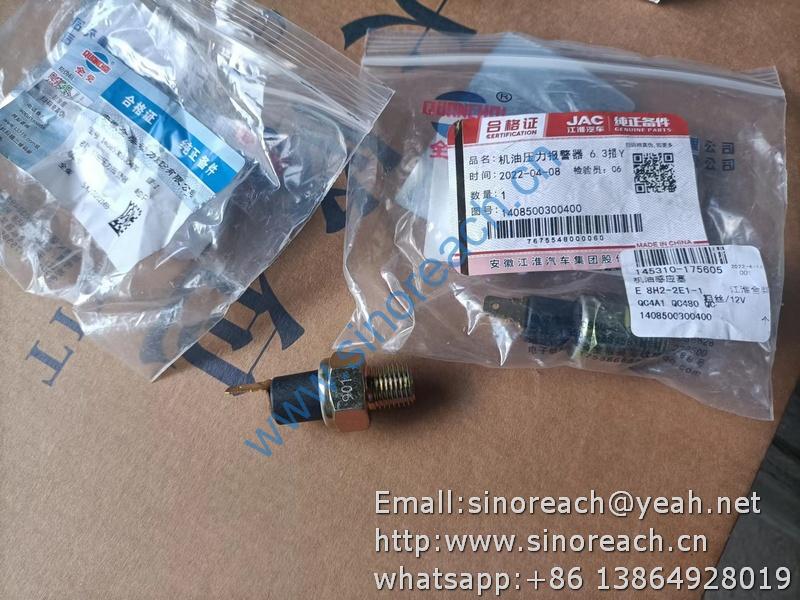

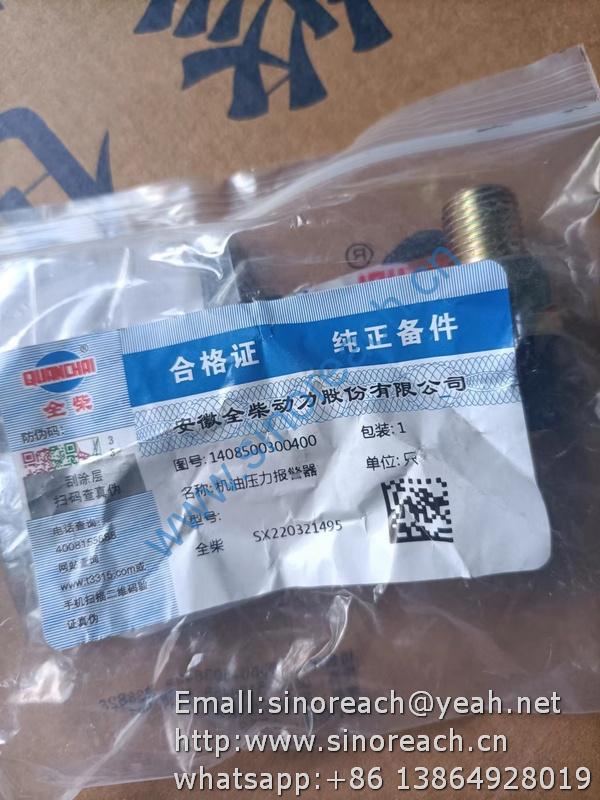

1408500300400 Oil pressure alarm for QUANCHAI spare parts

35
2408000111000
螺塞 Plug
3
QC480Q-01110
36
B10×20
定位销 Pin
2
GB/T119
37
2408000102100
观察孔盖 Cover
1
QC480Q-01021
38
M6
螺钉 Screw
2
GB/T823
39
2308000100200
气缸盖垫片 Cylinder gasket
1
QC380Q—01002
40
2408000101401
气缸盖螺栓 Cylinder bolt
8
QC480Q—01014A
41
2408000101600
定位套 locating bush
3
QC480Q-01016
42
2308000100100
气缸套 Cylinder liner
3
QC380Q—01001
43
2308000750001
机 油 尺 套 管 部 件 Oil dipstick pipe weld
assembly
1
QC380Q-HB-01401A
44
2308000730001
机油尺部件 Oil dipstick assembly
1
QC380Q-HB-01402A
45
放水手柄
1
QC495T-01100
46
2408000130100
报警器接头 Annunciator tie-in
1
QC480Q—01301

1
2408000200600
凸轮轴正时齿轮 Timing gear camshaft
1
QC480Q-02006
2
2408000200500
凸轮轴正时齿轮压板 Press plate of timing
gear camshaft
1
QC480Q-02005
3
Φ12
垫圈 Washer
1
GB/T93
4
M12×30
螺栓 Bolt
1
GB/T5783
5
2408000200400
正时惰齿轮压板 Press plate of timing gear
1
QC480Q-02004
6
Φ8
垫圈 Washer
2
GB/T93
7
M8×55
螺栓 Bolt
2
GB/T5783
8
2408000200300
曲轴正时齿轮 Timing gear crankshaft
1
QC480Q-02003
9
2408000210100
正时惰齿轮 Timing intermediate gear
1
QC480Q-02101
10
2408000200200
惰齿轮轴 Timing intermediate gear shaft
1
QC480Q-02002
11
2408000210200
正时惰齿轮衬套 Timing intermediate gear
bush
1
QC480Q-02102
12
2308000200101
喷油泵正时齿轮 Fuel injector pump timing
gear
1
QC380Q—02001A
