Description

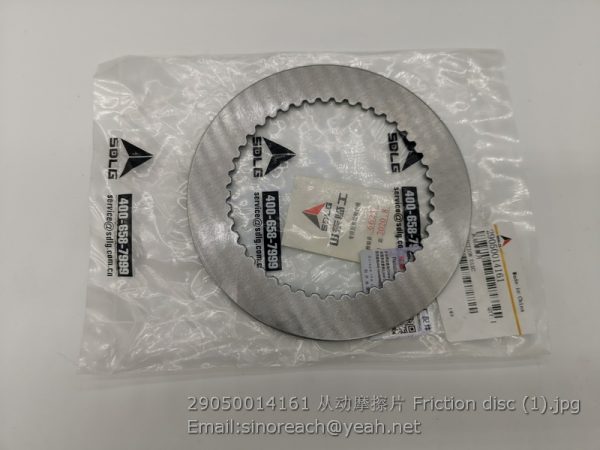

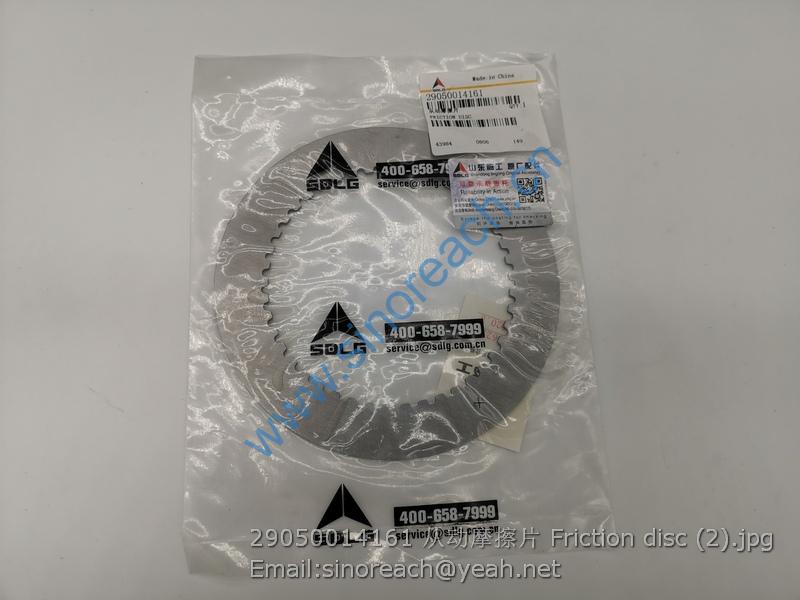

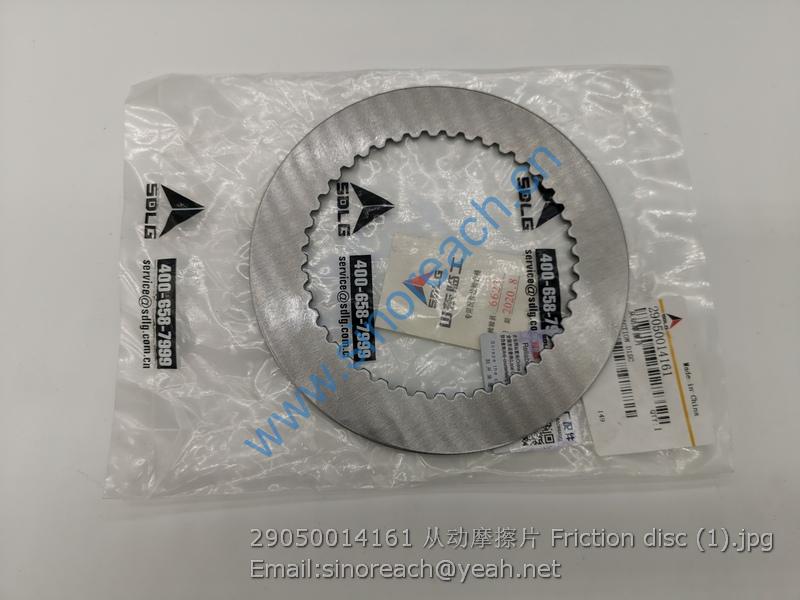

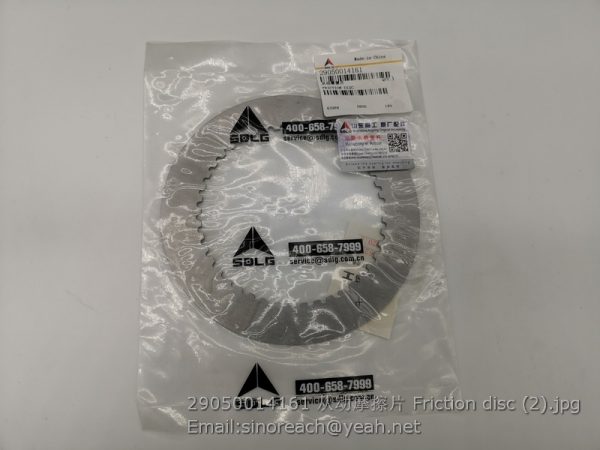

29050014161 Friction disc

1 4013000066 螺母GB889.2-M33*1.5-8 Lock nut Y 1
2 29070001121 垫圈 Washer Y 1
3 4030001002 密封圈GB13871.1-FB08010010-D Sealing ring Y 1
4 4030000789 密封圈GB13871.1-FB08010012-F Sealing ring Y 1
5 29070001141 密封盖 Sealing cover Y 1
6 4011000067 螺栓GB5782-M14*55EpZn-8.8 Bolt Y 7
7 4015000027 垫圈GB93-14-65Mn Spring washer Y 7
8 4021000030 滚动轴承GB297-31313 Roller bearing Y 1
9 29070001161 垫密片 Gasket Y 1
10 29070001171 轴承套 Bearing bushing Y 1
11 29070001181 调整垫片 Shim Y 3
12 29070001191 调整垫片 Shim Y 4
13 29070001201 调整垫片 Shim Y 5
14 29070013031 调整垫片 Shim N 1
15 29070013041 调整垫片 Shim N 1
16 4021000032 滚动轴承GB297-31314 Roller bearing Y 1
17 29090008501 主动螺旋伞齿轮（右） Crown wheel N 1
18 29070001321 托架总成 Center housing Y 1
19 29070000331 锥齿轮垫片 Thrust washer Y 4
20 29070000341 锥齿轮 Differential pinion Y 4
21 29070000351 调整螺母 Nut Y 2
22 4021000036 滚动轴承GB297-32216 Roller bearing Y 2
23 29070000431 差速器左壳 Differential housing N 1
24 29070013221 半轴齿轮 Differential side gear Y 2
25 29070000381 半轴齿轮垫片 Shim Y 2
26 29070000401 锁紧片 Lock washer Y 2
27 4011000597 螺栓GB5786-M10*1*20EpZn-8.8 Bolt Y 2
28 4015000025 垫圈GB93-10-65Mn Spring washer Y 2
29 29070009491 螺栓 Bolt Y 8
30 4013000198 螺母GB6176-M16*1.5-10 Nut Y 20

31 29070009511 垫圈 Washer Y 20
32 29070000411 十字轴 Spider Y 1
33 29070000361 差速器右壳 Differential housing N 1
34 29070009501 螺栓 Bolt Y 12
35 29090008511 从动螺旋伞齿轮（左） Crown wheel N 1
36 4016000124 销GB119.2-10u8*30 Pin Y 2
37 4015000020 挡圈GB894.1-35-65Mn Retaining ring Y 1
38 4021000027 滚动轴承GB283-NUP2307 Roller bearing Y 1
39 29070000311 锁紧片 Lock washer Y 1
40 4013000052 螺母GB6173-M27*2-05 Nut Y 1
41 29070000301 止推螺栓 Screw N 1
42 29070022481 调整垫片 Shim Y 1
43 29070026211 调整垫片 Shim Y 1
44 29070022501 调整垫片 Shim Y 1
45 29070026221 调整垫片 Shim Y 1
46 29070022521 调整垫片 Shim Y 1
47 29070022531 调整垫片 Shim Y 1
48 29070022541 调整垫片 Shim Y 1
49 29070026231 调整垫片 Shim Y 1
50 4011000186 螺栓GB5782-M12*55EpZn-8.8 Bolt Y 1
51 4015000026 垫圈GB93-12-65Mn Spring washer Y 1
52 29070000461 固定销 Pin Y 4
53 29090008121 输入法兰 Connection flange Y 1
54 29090008131 输入法兰 Flange Y 1
55 29070000641 油封压盖 Cover Y 1
56 21909003511 后主从动螺旋伞齿轮 Crown wheel Y 1
57 21909006471 锥齿半齿总成 Gear kit N 1
58 2050900079 差速器左右壳 Differential housing Y 1
59 29070019611 差速器总成 Differential spider Y 1
60 29070026241 调整垫片 Shim Y 1

1 4120001739080 内钳体FY10754M.00001 Pliers N 1
2 4120001739081 活塞FY10754B.00004 Piston Y 4
3 4120001739082 矩形密封圈FY10754B.00007 Gasket Y 4
4 4120001739096 防尘罩FY50.05 Sealing ring Y 4
5 4120001739084 外钳体FY10754M.00002 Brake caliper N 1
6 4120001739085 O型圈19.5X3.5 O-ring Y 2
7 4120001739086 螺栓M22X110 Screw Y 4
8 4015000087 垫圈GB93-22-65Mn Spring washer Y 4
9 4120001739087 组合垫圈14 Washer Y 2
10 4120001739088 放气嘴座FY10754M.00003 Support N 2
11 4120001740 放气嘴 Nipple Y 2
12 4120001739089 制动片FY10754B.01000 Brake plate N 2
13 4120001739090 销子FY10754M.00006 Pin Y 2
14 4120001739091 开口销GB91-3.2*25EpZn-Q235A Split pin Y 2
15 4120001739092 放气座堵塞FY10754M.00008 Plug N 2
16 4120001739093 堵塞FY10754M.00007 Plug N 1
